| PoE (Power Over Ethernet)
| TP-LINK TL-POE170S PoE++ Injector, 802.3bt/at/af Compliant, 60 W PoE Power
TP-LINK TL-POE170S PoE++ Injector, 802.3bt/at/af Compliant, 60 W PoE Power
เพิ่มเมื่อ: 2024-06-09 17:59:25.0
แก้ไขล่าสุด: 2025-02-06 15:13:54.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comPoE Injector TP-LINK TL-POE170S PoE++ Injector, 2 Gigabit ports, Complies with IEEE802.3af/at/bt* standards, supplies up to 60 Watt
TP-LINK TL-POE170S
PoE Injector TL-POE170S PoE++ Injector, 2 Gigabit ports, Complies with IEEE802.3af/at/bt* standards, supplies up to 60 Watt
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
- Durable metal casing
Standards and Protocols : IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

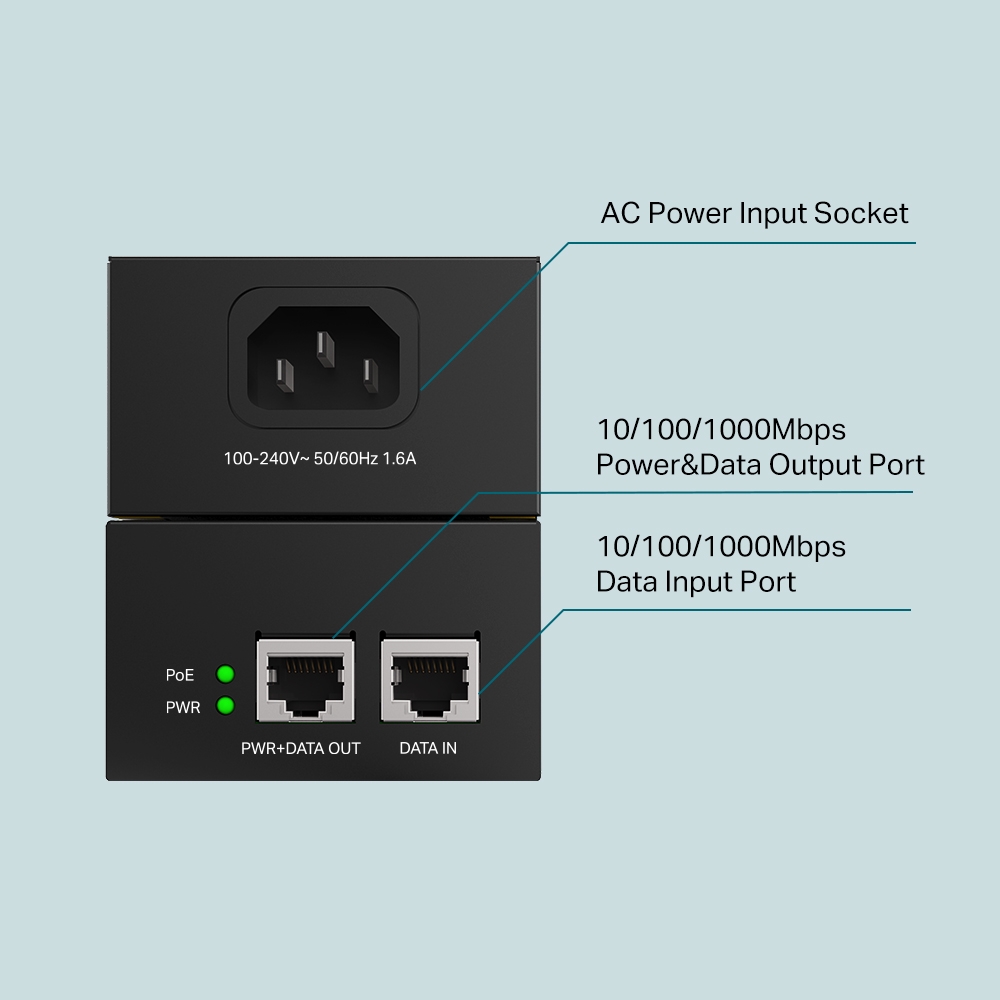

Ports :
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption :
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function :
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements

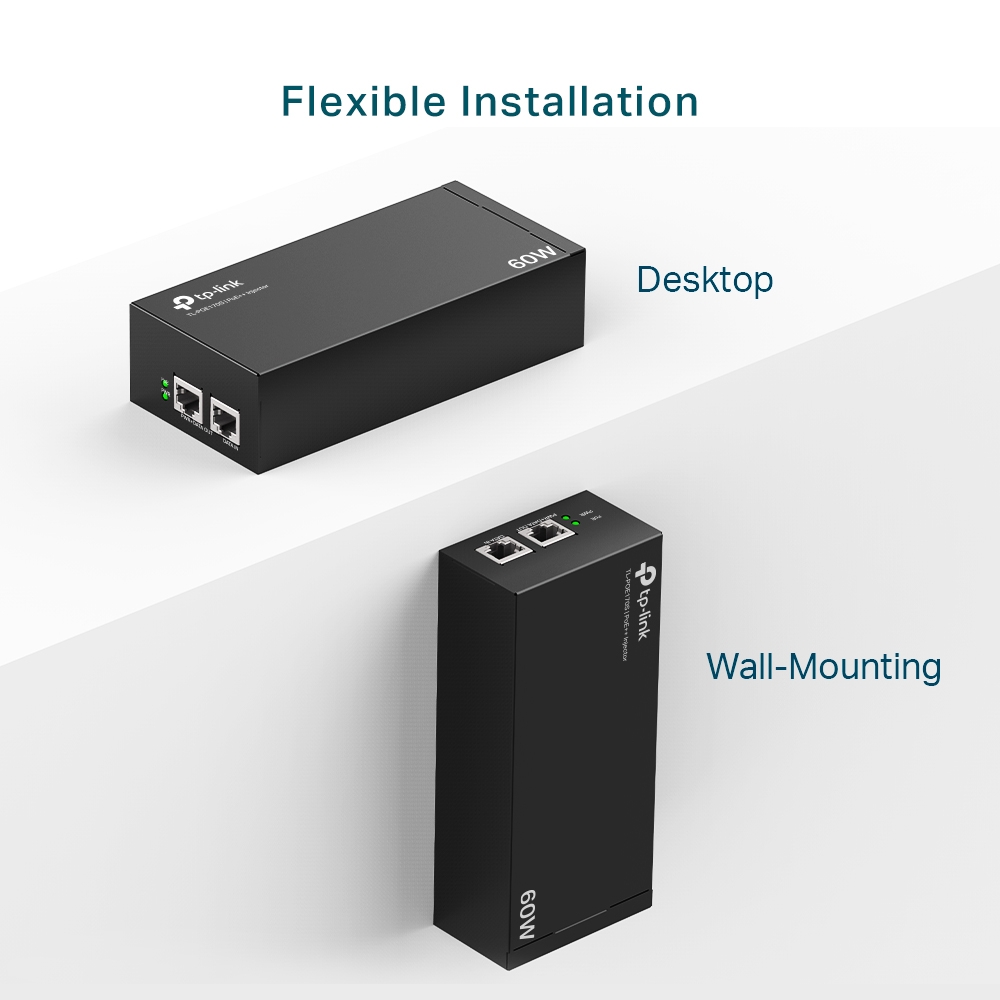

Wall-mounting and desktop installation supported
Plug-and-Play
Dimensions ( W x D x H ) : 6.1*2.8*1.7 in (155*70*42 mm)
Package Contents :
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable
