TP-LINK POE260S Omada 2.5G PoE+ Injector Adapter
เพิ่มเมื่อ: 2025-02-06 15:23:24.0
แก้ไขล่าสุด: 2025-02-06 15:23:34.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comPoE+ Injector TP-LINK POE260S Omada 2.5G PoE+ Injector Adapter, 1× 2.5G PoE Port, 1× 2.5G Non-PoE Port

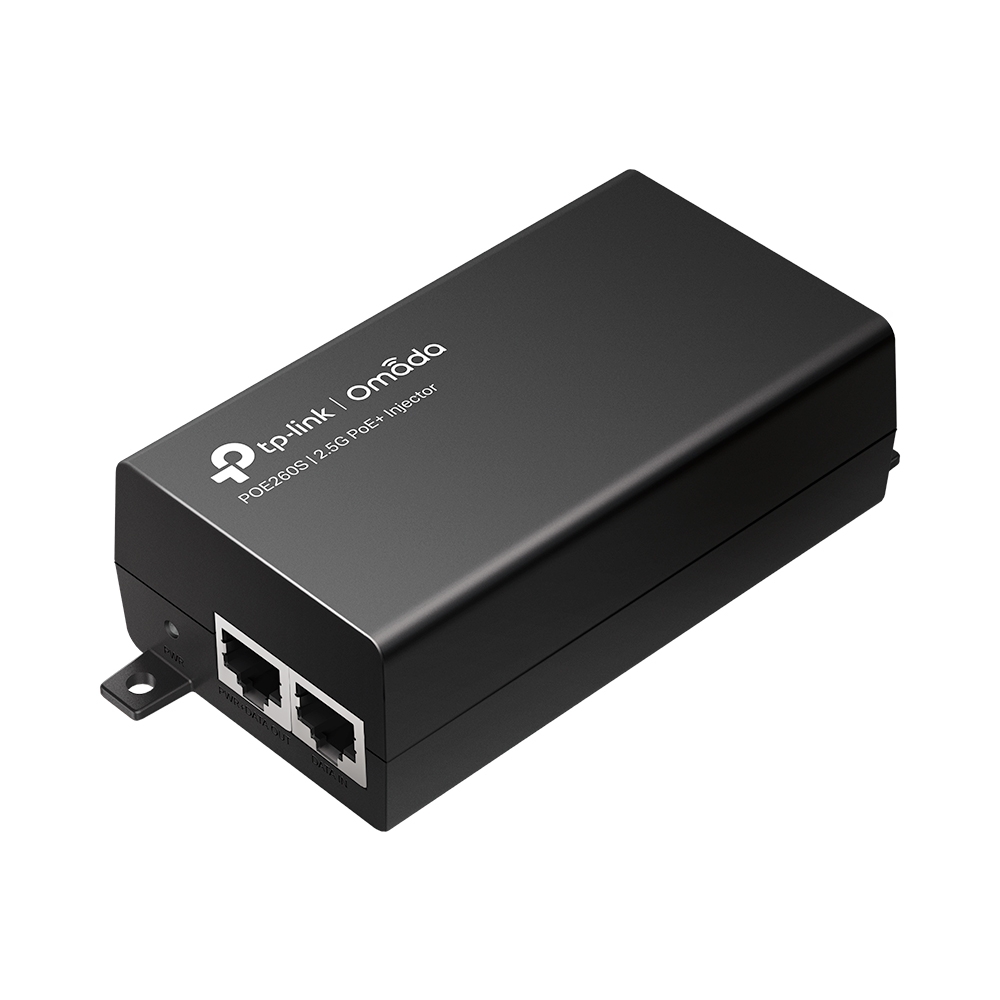

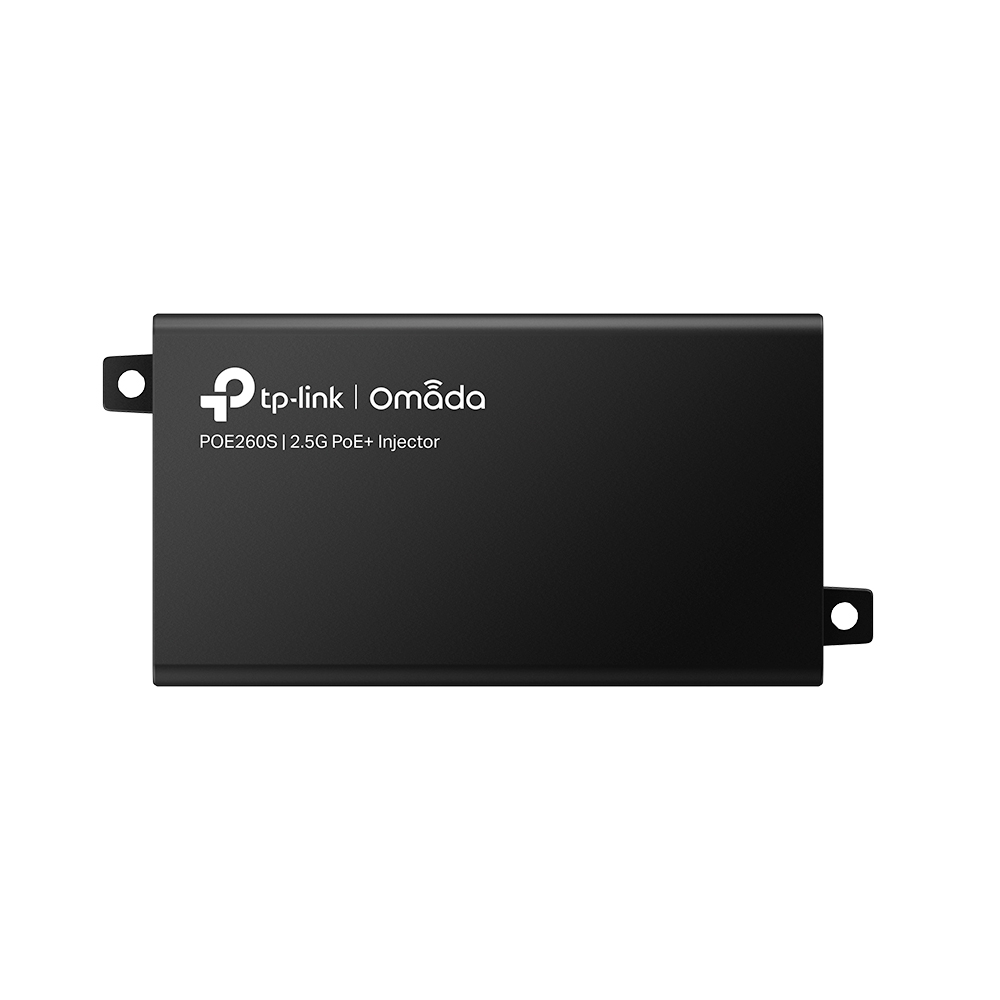

TP-LINK POE260S
PoE+ Injector TP-LINK POE260S Omada 2.5G PoE+ Injector Adapter, 1× 2.5G PoE Port, 1× 2.5G Non-PoE Port
- 2× 2.5 Gbps ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Standards and Protocols : IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
• 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)

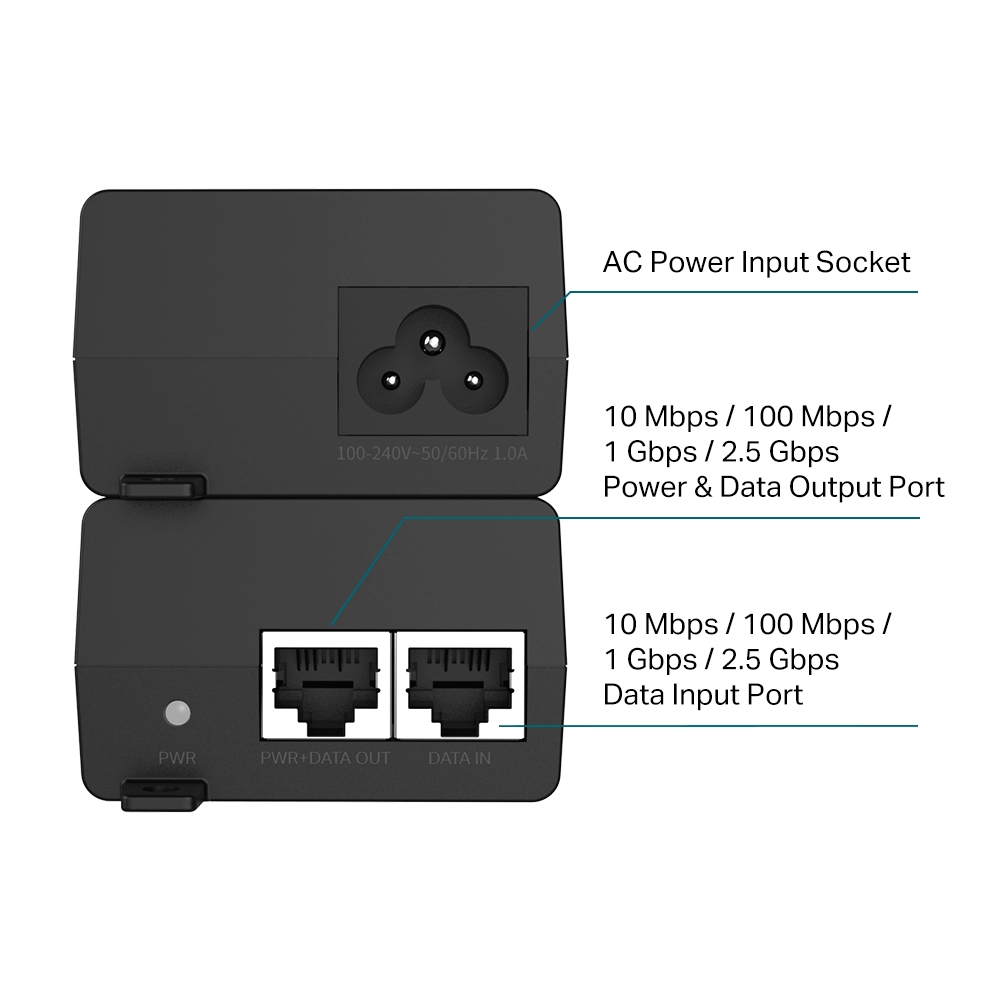

Ports :
• 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port
• 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port
• 1 AC socket
Power Consumption :
• Input: 100-240 V, 50/60 Hz
• Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function :
• Auto-Sensing Algorithm enables providing power with 802.3af/at PD
• Auto-determine the necessary power requirements
• Wall-mounting and desktop installation supported
• Plug-and-Play
LED Indicator : Power / PoE
Dimensions ( W x D x H ) : 4.9×2.3×1.4 in (125×59.4×36.8 mm)
Package Contents
• POE260S
• Installation Guide
• Power Cord
• Wall Mounting Kits
