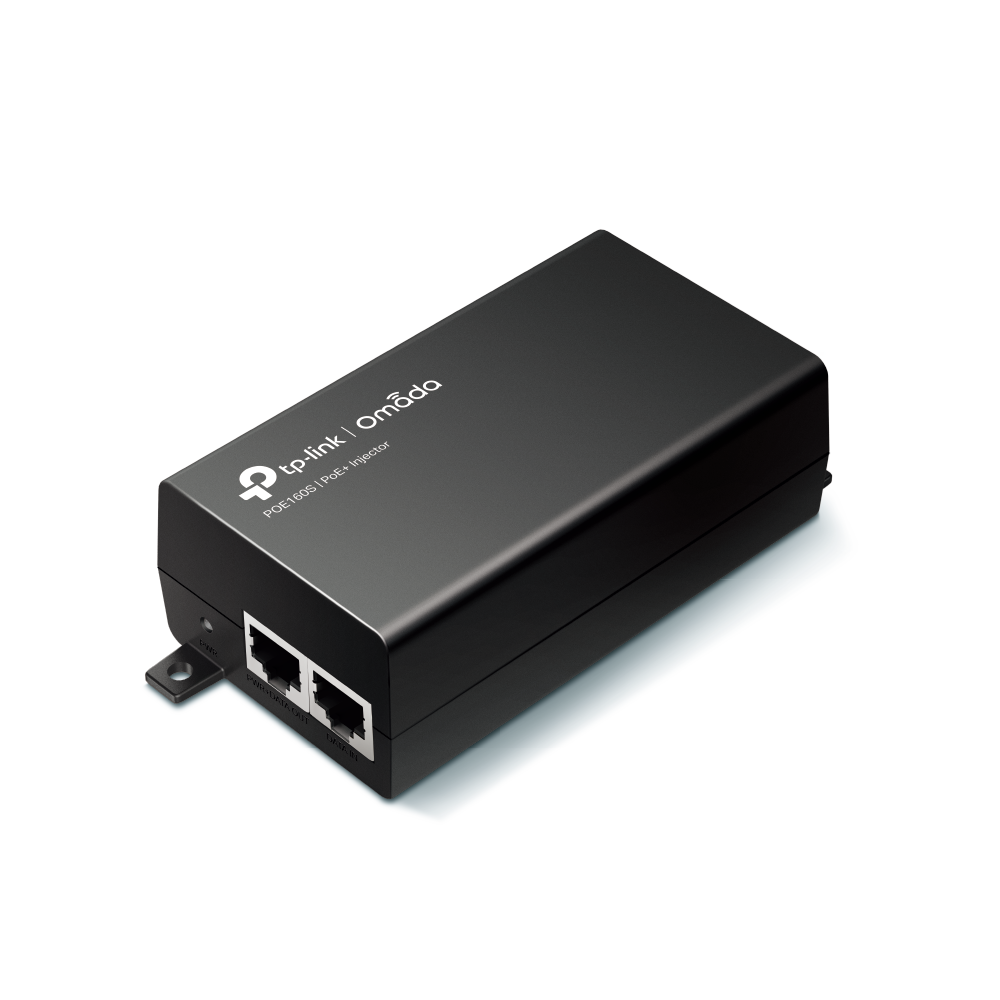

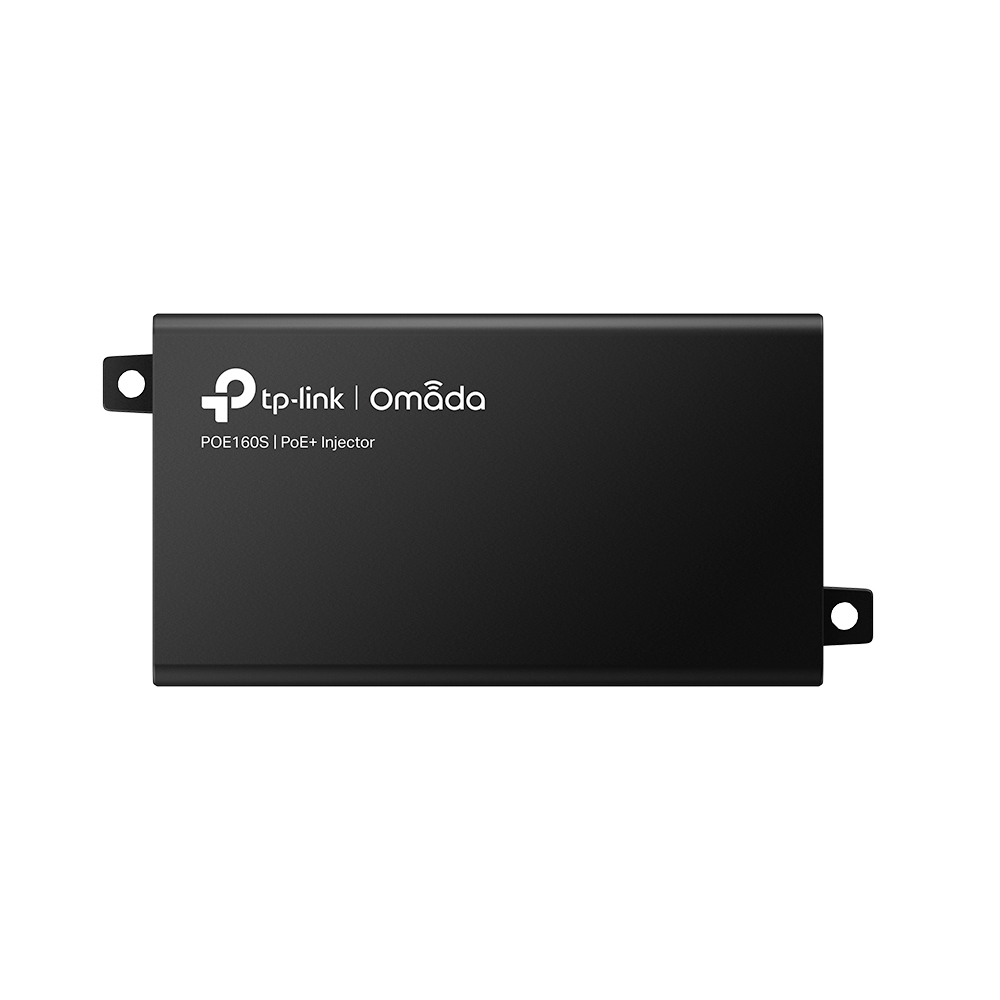

TP-LINK POE160S Omada PoE+ Injector Adapter
เพิ่มเมื่อ: 2022-10-24 16:02:26.0
แก้ไขล่าสุด: 2025-02-06 15:30:08.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comPoE+ Injector TP-LINK POE160S Omada PoE+ Injector Adapter
TP-LINK POE160S
PoE+ Injector TP-LINK POE160S Omada PoE+ Injector Adapter
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Specifications
Standards and Protocols : IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
Network Media :
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
- EIA/TIA-568 100Ω STP (maximum 100 m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
- EIA/TIA-568 100Ω STP (maximum 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

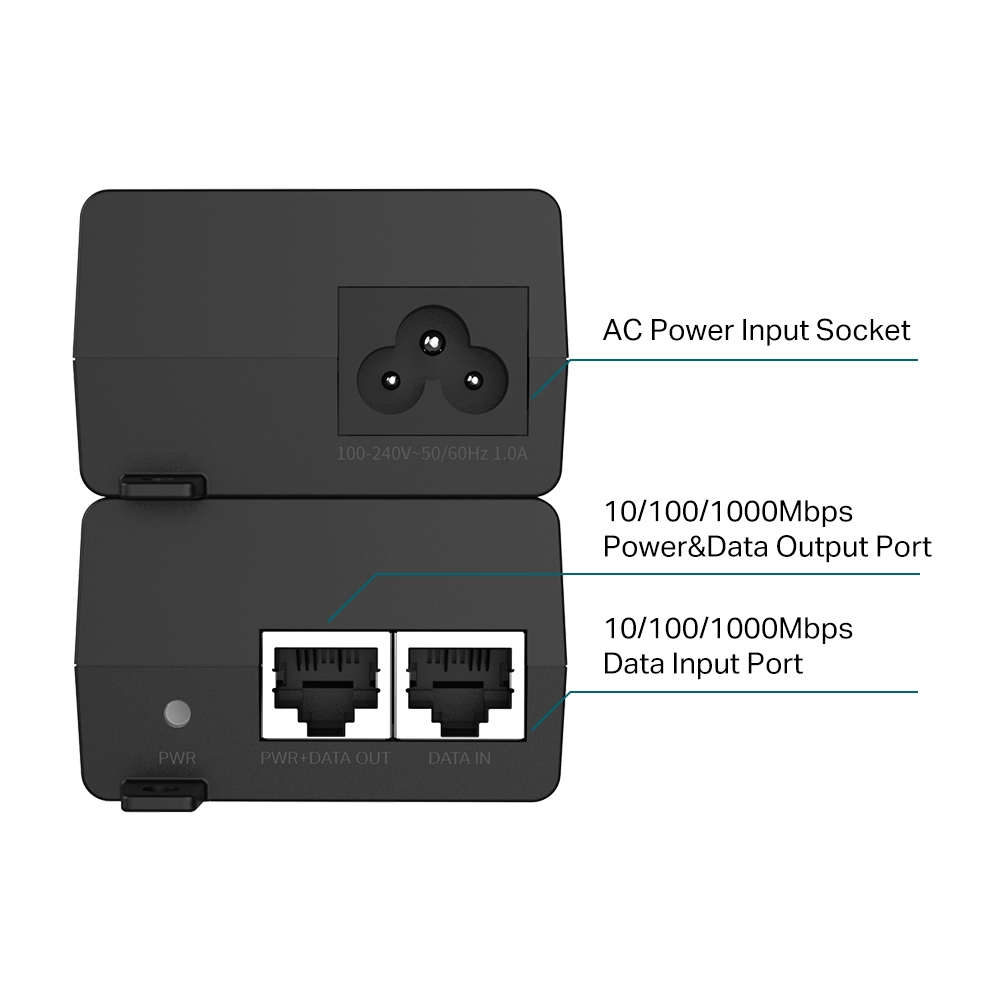

Ports :
- 1 10/100/1000Mbps RJ45 data-in port
- 1 10/100/1000Mbps RJ45 power+data-out port
- 1 AC socket
Power Consumption :
- Input: 100-240 V, 50/60 Hz
- Output: Auto-determine the necessary power requirements (max. 30 W)
LED Indicator :
- ON: Supplying power normally
- OFF: No power supply
Dimensions ( W x D x H ) : 4.9*2.3*1.4 in (125*59.4*36.8 mm)
