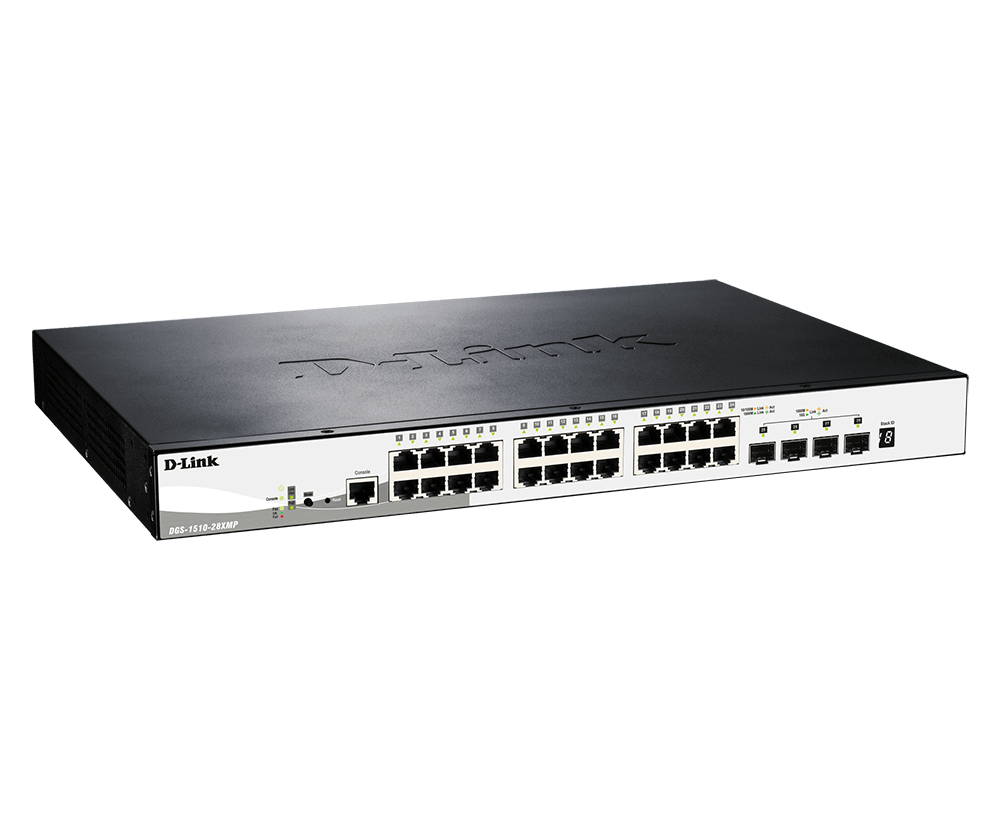

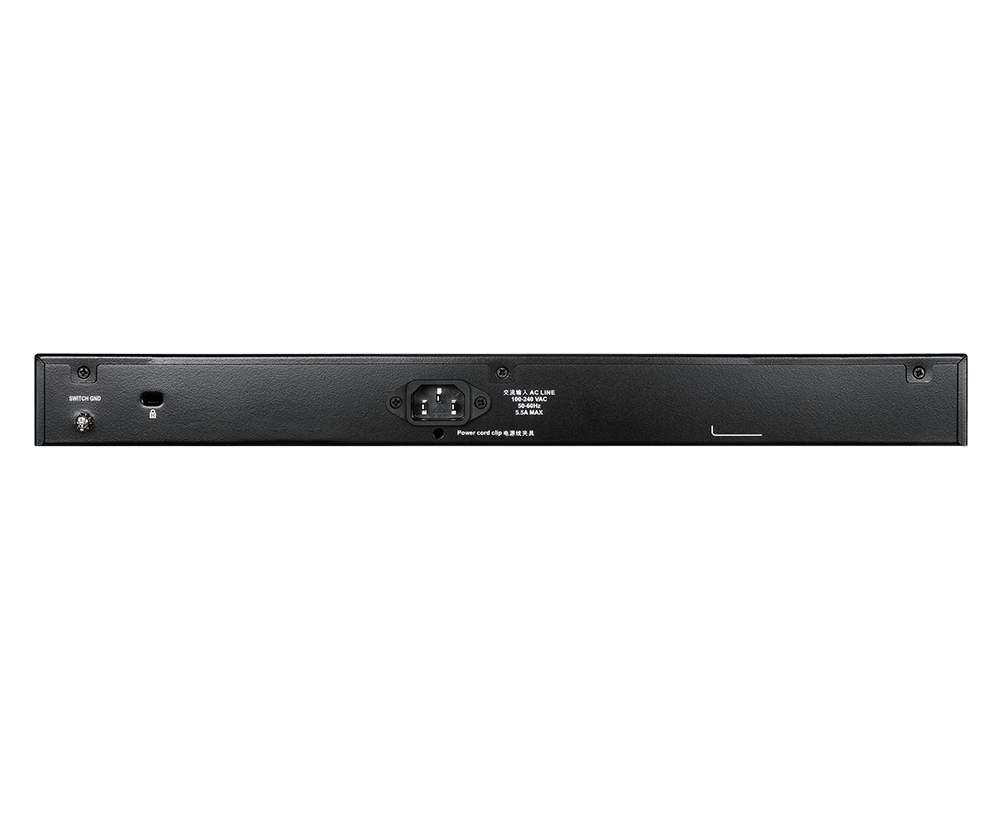

D-LINK DGS-1510-28XMP Gigabit Stackable Smart Managed Switch with 10G Uplinks
เพิ่มเมื่อ: 2023-08-23 19:44:40.0
แก้ไขล่าสุด: 2023-11-06 15:38:18.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comDGS-1510-28XMP Gigabit Stackable Smart Managed Switch with 10G Uplinks
D-LINK DGS-1510-28XMP
DGS-1510-28XMPGigabit Stackable Smart Managed Switch with 10G Uplinks
- 24 x 10/100/1000BASE-T PoE ports
- 4 x 10G SFP+ ports
- Layer 2 management and security with Layer 3 capabilities
- Static Routing and MSTP
- 370 W PoE budget
Specifications
- 1000Base-T PoE Interface 24
- 10G SFP+ Interface 4
- Auto MDI/MDIX Yes
- Console Port Yes
- 10/100/1000BASE-T PoE ports 24
- 10G SFP+ ports 4
- Switch Capacity 128 Gbps
- Max. Packet Forwarding Rate 95.24 Mpps
- Dimension 440mm x 308.50mm x 44mm
- Weight 4.25 kg
- Operation Temperature -5 -50°C
- Storage Temperature -20-70°C
- Operation Humidity 0% ~ 95% RH
- Storage Humidity 0% ~ 95% RH
- Maximum Power Consumption 436.3 W (PoE on)
38.4 W (PoE off)
- Maximum Heat Dissipation 1,487.78 BTU/hr
- Standby Power Consumption 24.5W/100V , 28.2 W/240V
- Acoustic 56.9 dB(A)
- MTBF 274,796 hours
- Power Input 100 - 240 VAC
- CPU Speed 400MHz
- DRAM Size 256MB
- Flash Memory Size 32MB
- Packet Buffer Size 1.5MB
- FAN 2 DC Fan
- Comply with RoHS 6 Yes
- Energy Efficiency Ethernet (EEE) Yes
- Power Saving By Link Status Yes
- Power Saving By LED Shut-Off Yes
- Power Saving By Port Shut-Off Yes
- Power Saving By System Hibernation Yes
- Time-based PoE Yes
- Maximum PoE Budget 370W
- PD Alive Yes
- PoE Budget 370 W
- Physical Stacking Yes
- Physical Stacking Bandwidth 40 G
- Units Per Physical Stack 6
- D-Link Single IP Management (SIM) Yes
- Units Per SIM Stack 32
- MAC Address Table Size 16384
- Black Hole MAC Address Yes
- 802.3x Flow Control Yes
- Head-of-line (HOL) Blocking Prevention Yes
- 802.1D Spanning Tree (STP) Yes
- 802.1w Rapid Spanning Tree (RSTP) Yes
- 802.1s Multiple Spanning Tree (MSTP) Yes
- Root Restriction Yes
- G.8032 ERPS Yes
- 802.1AX Link Aggregation Yes
- 802.3ad Link Aggregation Yes
- Link Aggregation Group Per Device 32
- Max Port Per Link Aggregation Group 8
- Port Mirroring Yes
- Flow-based (ACL) mirroring Yes
- Jumbo Frame 9216
- Loopback Detection (LBD) Yes
- IGMP Snooping Yes
- Max IGMP Snooping Groups 512
- IGMP Snooping Fast Leave Yes
- IGMP Proxy Reporting Yes
- MLD Snooping Yes
- MLD Snooping Groups Yes
- MLD Snooping Fast Leave Yes
- MLD Proxy Reporting Yes
- 802.1Q VLAN Yes
- VLAN Groups 4094
- Port-based VLAN Yes
- 802.1v Protocol-based VLAN Yes
- MAC-based VLAN Yes
- Voice VLAN Yes
- Auto Surveillance VLAN Yes, 2.1
- GVRP Yes
- Asymmetric VLAN Yes
- IP Interface Yes
- Max Number of IP Interface 16
- ARP Yes
- ARP Entries 512
- Gratuitous ARP Yes
- ND Entries Yes
- UDP Helper Yes
- Default Route Yes
- Static Route Yes
- Number of Queue 8
- Class of Service (CoS) Yes
- Remark 802.1p priority Yes
- Remark ToS/DSCP Yes
- Rate Limiting Yes
- Queue Handling Yes
- Strict Priority Queue (SPQ) Yes
- Weighted Round Robin (WRR) Yes
- Deficit Round Robin (DRR) Yes
- SPQ + WRR Yes
- Port-based Bandwidth Control Yes
- Max Access Control List (ACL) Entries Yes
- MAC Access List Yes
- IP Access List Yes
- IPv6 Access List Yes
- Time based ACL Yes
- SSH Yes
- SSL Yes
- Port Security Yes
- Broadcast/Multicast/Unicast Storm Control Yes
- Traffic Segmentation Yes
- IP Source Guard Yes
- DHCP Snooping Yes
- IPv6 Snooping Yes
- Dynamic ARP Inspection (DAI) Yes
- DHCPv6 Guard Yes
- IPv6 ND Inspection Yes
- IPv6 Route Advertisement (RA) Guard Yes
- Duplicate Address Detection (DAD) Yes
- D-Link Safeguard Engine Yes
- DHCP Server Screening Yes
- ARP Spoofing Prevention Yes
- BPDU Attack Protection Yes
- DoS Attack Prevention Yes
- Port based 802.1X Authentication Yes
- 802.1X Yes
- Host based 802.1X Authentication Yes
- Identity Driven 802.1X Policy Assignment Yes
- Web-based Access Control (WAC) Yes
- Port based WAC Authentication Yes
- Host based WAC Authentication Yes
- Japanese Web-based Access Control (JWAC) Yes
- Identity Driven WAC Policy Assignment Yes
- Port based JWAC Authentication Yes
- Host based JWAC Authentication Yes
- Identity Driven JWAC Policy Assignment Yes
- MAC-based Access Control (MAC) Yes
- Port based MAC Authentication Yes
- Host based MAC Authentication Yes
- Identity Driven MAC Policy Assignment Yes
- Compound Authentication Yes
- Guest VLAN Yes
- Authentication for Management Access Yes
- Privilege Level for Management Access 5
- TACACS+ Yes
- RADIUS Accounting Yes
- RADIUS Yes
- TACACS+ Accounting Yes
- Cable Diagnostics Yes
- Optical Transceiver Digital Diagnostic Monitoring (DDM) Yes
- Network Time Protocol (NTP) Yes
- Simple Network Time Protocol (SNTP) Yes
- Web-based GUI Yes
- Command Line Interface (CLI) Yes
- Telnet Server Yes
- Telnet Client Yes
- SNMP Yes
- SNMP Trap Yes
- TFTP Client Yes
- ZModem Yes
- System Log Yes
- RMONv1 Yes
- LLDP Yes
- LLDP-MED Yes
- D-Link Discover Protocol (DDP) Yes (v0.25)
- DHCP/BootP Client Yes
- DHCP Auto-configuration Yes
- Flash file system Yes
- DHCP relay Yes
- Multiple Images Yes
- Multiple Configurations Yes
- Editable Login Banner Yes
- Editable System Prompt Yes
- DNS Client Yes
- Debug Command Yes
- Password Encryption Yes
