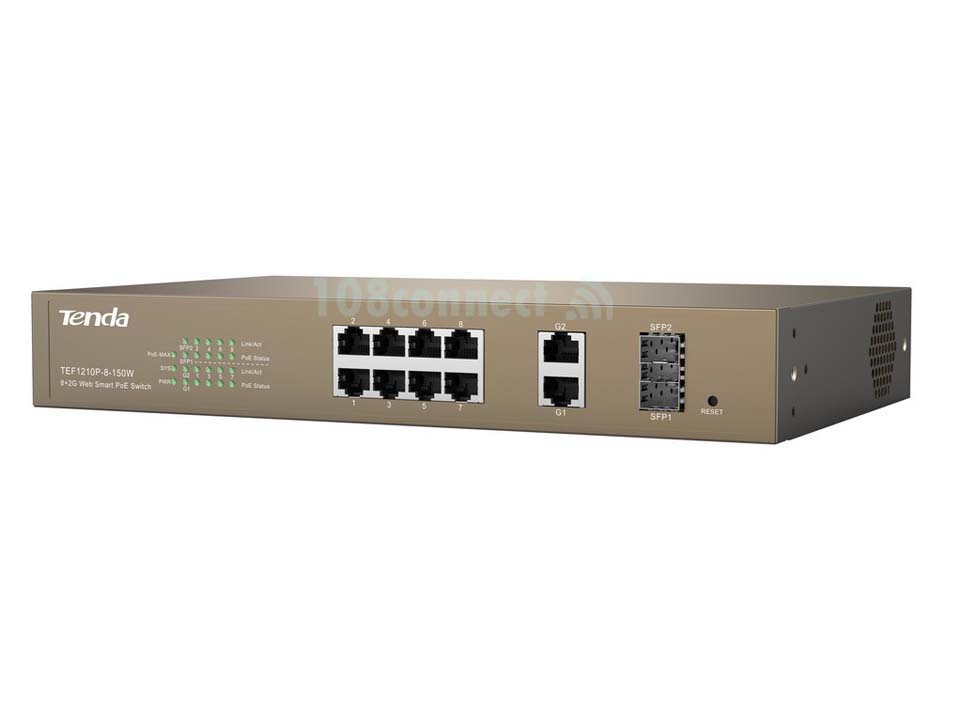

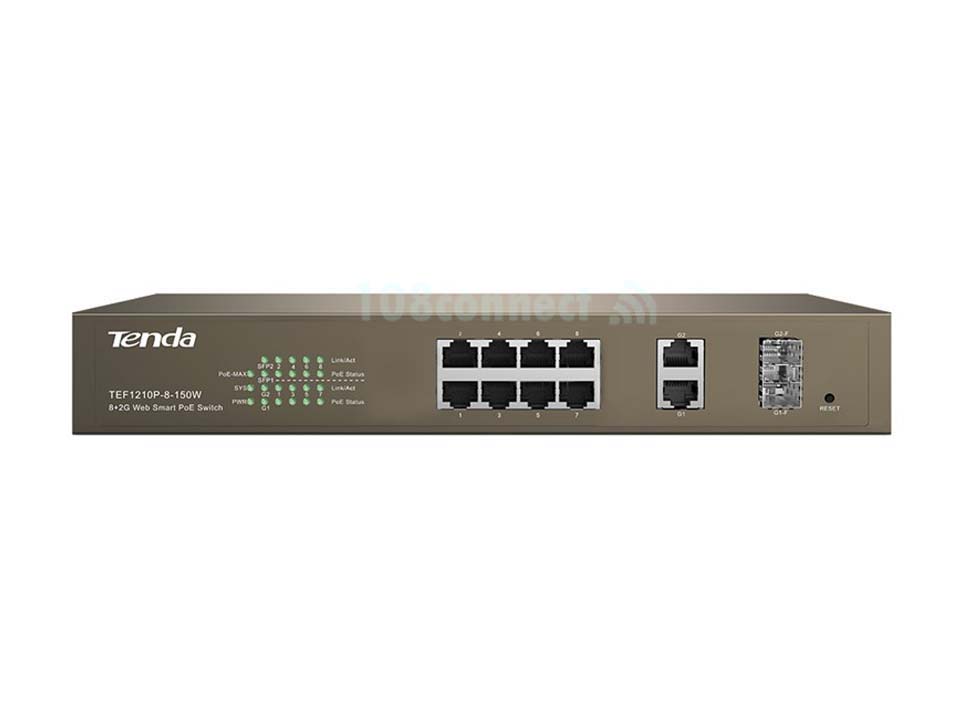

TENDA TEF1210P-8-150W
TEF1210P-8-150W 8-Port 10/100M + 2-Port Gigabit TP/SFP Combo PoE Web Smart Switch,Complies with IEEE 802.3 af/ at ,Supports PoE power up to 40W for PoE port,Maximum PoE Output
Standard&Protocol
- IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W
IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at
MTBF
- 100,000hours
Indicator
- Link/Act, PoE Status,System, Power,PoE Max
Interface
- Fixed Ports:8 10/100Base-TX ports
- 2 10/100/1000Base-T ports
- 2 1000Base-X SFP ports Combo)
- lightning protection:≥6KV
Performance
- Store and forward:Yes
- Exchange capacity:5.6 Gbit/s
- MAC address entries:4K MAC
Power
- Power supply module:Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W)
- PoE through pin:1 2 4 5 +,3 6 7 8 -
- Voltage input range:AC:100-240V~ 50/60Hz
Dimension
- 294mm*178.8mm*44mm(L×W×H)
Weight
- ≤5kg
Power Consumption
- <150W
- PoE consumption up to 130W
Temperature
- Perating temperature:0 ℃~40 ℃
- Storage temperature:-40 ℃~70 ℃
Humidity
- Operational:10%~95%(noncondensing)
- Storage:10%~95%(noncondensing)
PoE supply management
- Support setup of PoE
- Support power adjustable by priority
- Support over temperature protection for PoE module
VLAN
- Support VLAN(4K) based on ports
- Support 802.1QVLAN
Mirroring
- Support local mirror image
Link Aggregation
- Support LACP, manual link aggregation
- Support up to 6 link aggregation groups and up to 8 GE ports per group
QoS
- Support message transmission for ports and limitation of speed
- Support SP & WRR
Layer 2 ring network protocol
- Support STP/RSTP and looped Network for devices
Certification
- FCC/CE/RoHS
