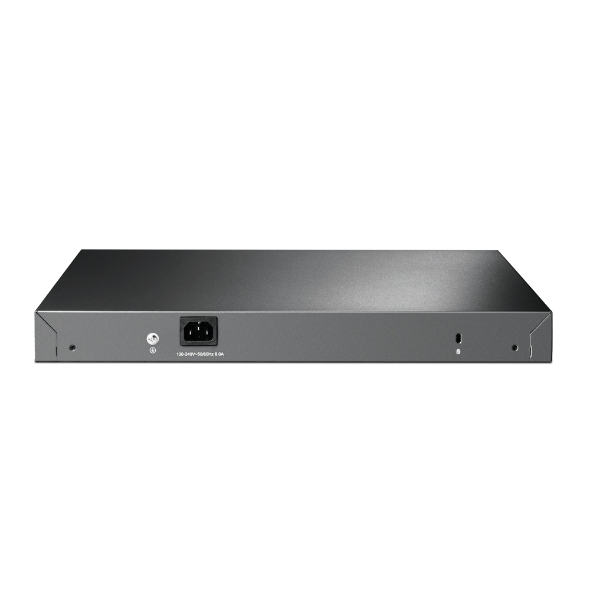

TP-LINK TL-SG3428XMP 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
เพิ่มเมื่อ: 2023-02-15 17:39:23.0
แก้ไขล่าสุด: 2024-07-31 14:25:19.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTL-SG3428XMP 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ (รับประกัน limited lifetime)
TP-LINK TL-SG3428XMP
TL-SG3428XMP 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 384 Watt PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Interface
- 24× 10/100/1000 Mbps RJ45 Ports
- 4× 10G SFP+ Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
Fan Quantity
- 2
Power Supply
- 100-240 V AC~50/60 Hz
PoE+ Ports(RJ45)
- Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports, up to 30 W per port
- Power Budget: 384 W
Dimensions ( W x D x H )
- 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting
- Rack Mountable
Max Power Consumption
- V1: 465.8 W (110V/60Hz) ( with 384 W PD device connected); 34.4 W (110V/60Hz) ( no PD device connected)
- V2: 455.5 W (110V/60Hz) ( with 384 W PD connected)
Max Heat Dissipation
- V1: 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected); 117.38 BTU/h (110 V/60 Hz) (no PD device connected)
- V2: 1554.39 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
Switching Capacity
- 128 Gbps
Packet Forwarding Rate
- 95.23 Mpps
MAC Address Table
- 16 K
Packet Buffer Memory
- 12 Mbit
Jumbo Frame
- 9 KB
Omada App
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
Cloud Access
- Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features
- Web-based GUI
- Command Line Interface (CLI) through the console port, telnet
- SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP AutoInstall
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- Password Recovery
- SNTP
- System Log
