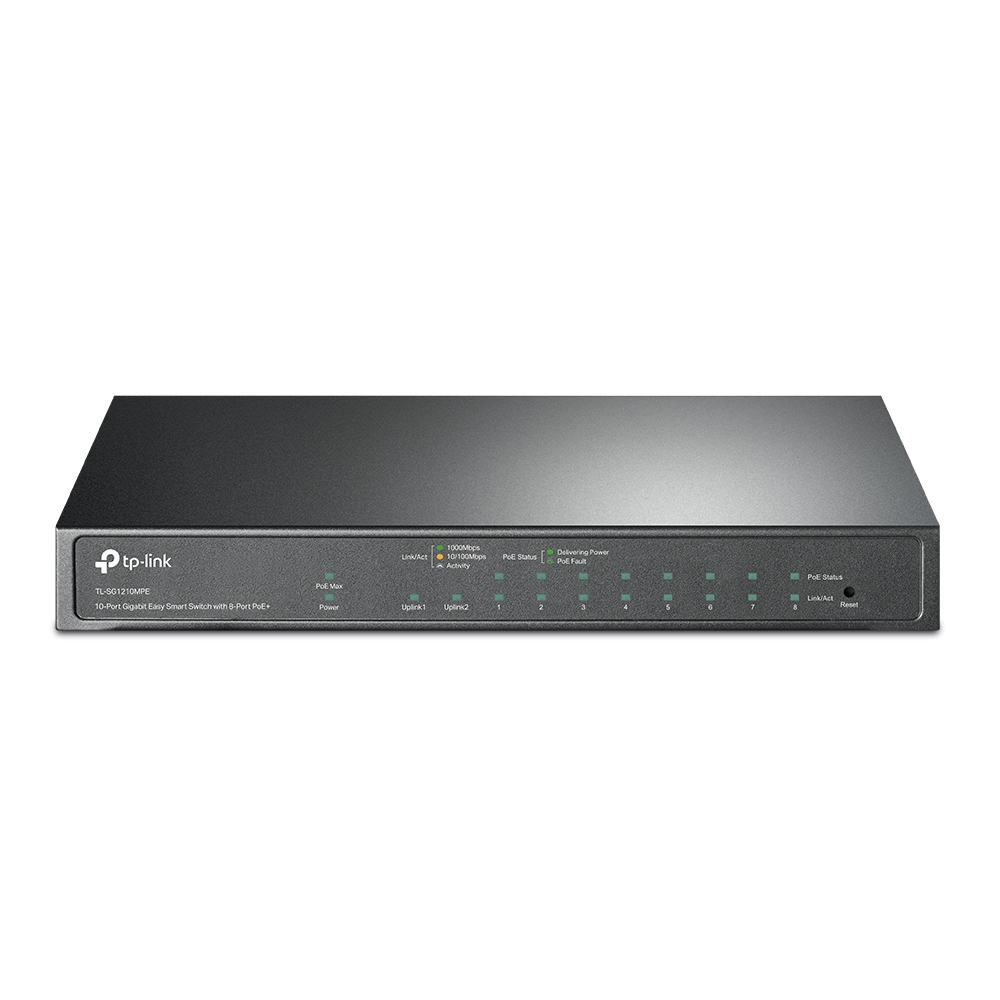

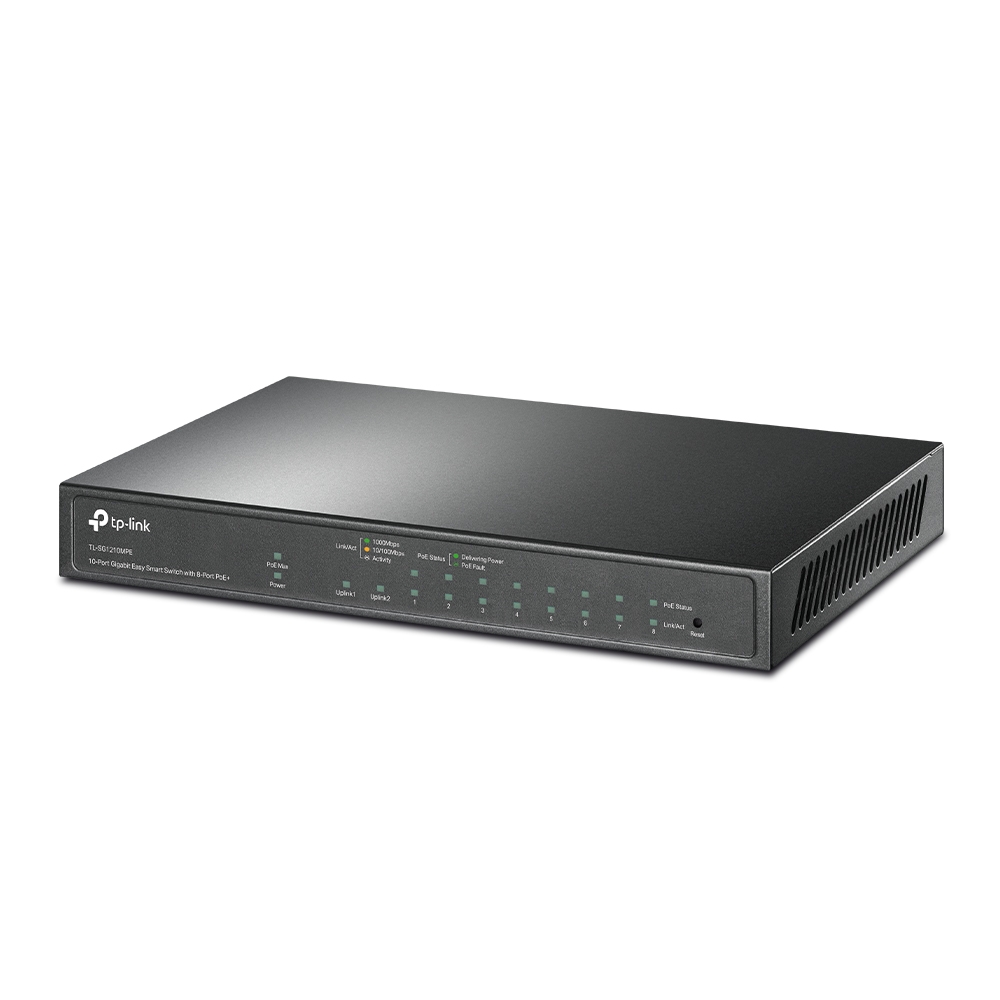

TP-LINK TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE
เพิ่มเมื่อ: 2023-02-10 18:47:41.0
แก้ไขล่าสุด: 2023-11-15 14:39:41.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+(รับประกัน limited lifetime)
TP-LINK TL-SG1210MPE
TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
- 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
- Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
- Supports PoE power up to 123 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
- IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

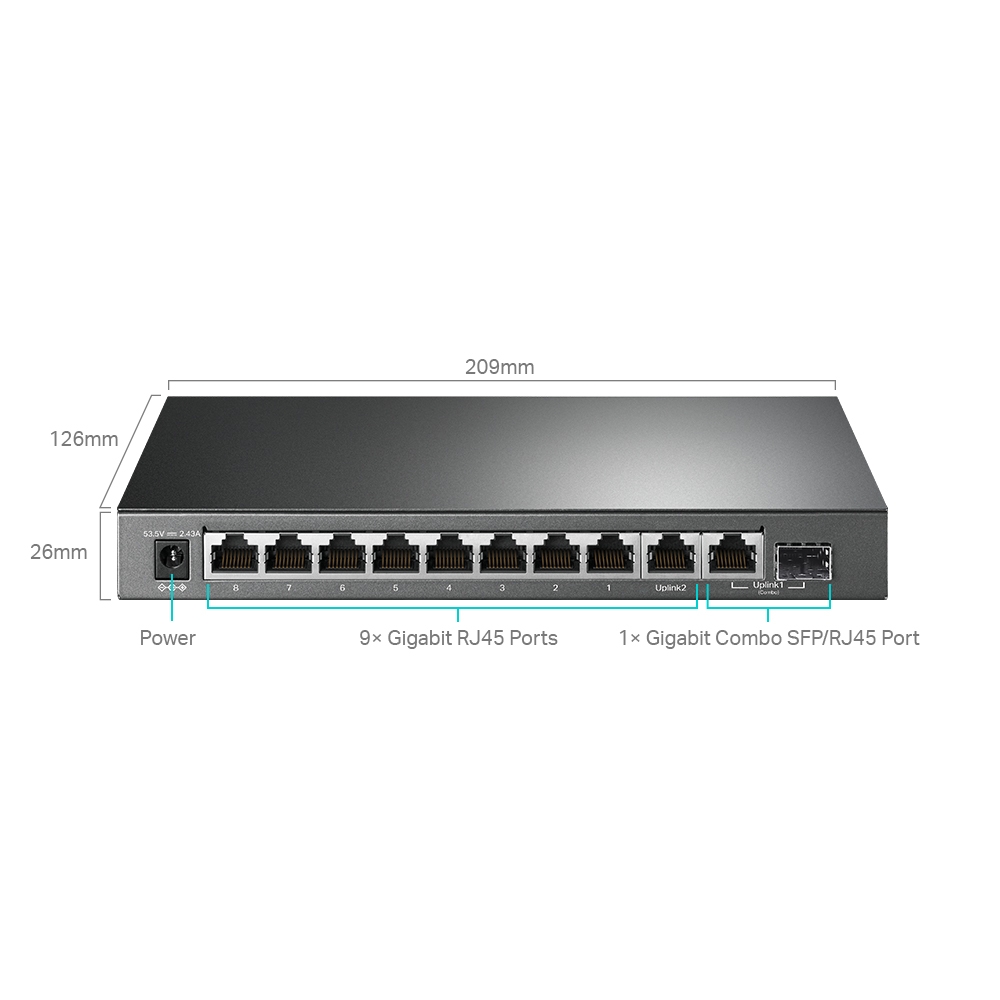

Interface
- 9× 10/100/1000 Mbps RJ45 Ports
- 1× 1000 Mbps Combo SFP/RJ45 Port
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity
- Fanless
Power Supply
- External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1- Port 8
- PoE Power Budget: 123 W
Dimensions ( W x D x H )
- 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption
- 7.66 W (220V / 50Hz with no PD connected)
- 141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation
- 26.12 BTU/h (220V / 50Hz with no PD connected)
- 482.65 BTU/h (220V / 50Hz with 123 W PD connected)
- Switching Capacity 20 Gbps
- Packet Forwarding Rate 14.88 Mpps
- MAC Address Table 4 K
- Jumbo Frame 16 KB
Quality of Service
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
PoE
- Extend Mode**
- PoE Auto Recovery
Management
- Web-based GUI
- Easy Smart Configuration Utility
- Transmission Method Store-And-Forward
