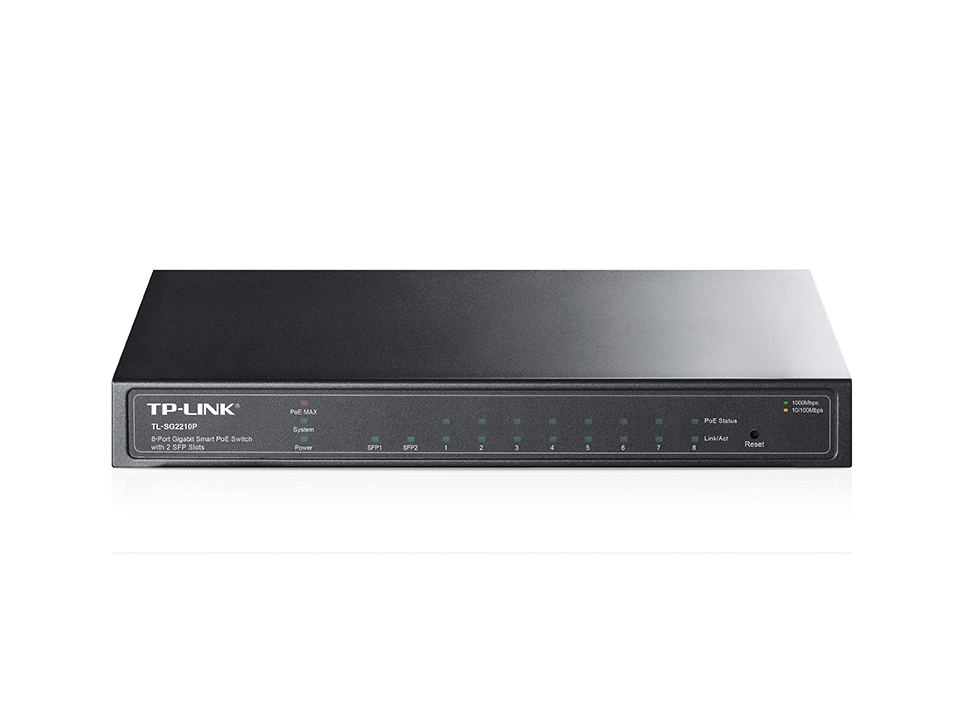

TP-LINK TL-SG2210P 8-Port Desktop Gigabit PoE Switch w/ 2x SFP Ports (53W)
เพิ่มเมื่อ: 2017-03-09 18:19:10.0
แก้ไขล่าสุด: 2024-01-08 11:09:00.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ TL-SG2210P 8-Port Desktop Gigabit PoE Switch w/ 2x SFP Ports (53W)(สินค้ารับประกัน ตลอดอายุการใช้งาน)
TP-LINK TL-SG2210P
TL-SG2210P 8-Port Desktop Gigabit PoE Switch w/ 2x SFP Ports (53W)
- Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features.
- Gigabit Ethernet connections on all ports provide full speed of data transferring.
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect
LAN area investment.
- L2/L3/L4 QoS and IGMP snooping optimise voice and video applications.
- WEB/CLI managed modes, SNMP, RMON bring abundant management features.
- Innovative energy-efficient technology saves up to 50% of power consumption.
Hardware Specifications
Standards and Protocols
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3ad
- IEE 802.3af
- IEEE 802.3x
- IEEE 802.1d
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1q
- IEEE 802.1p
Interface :

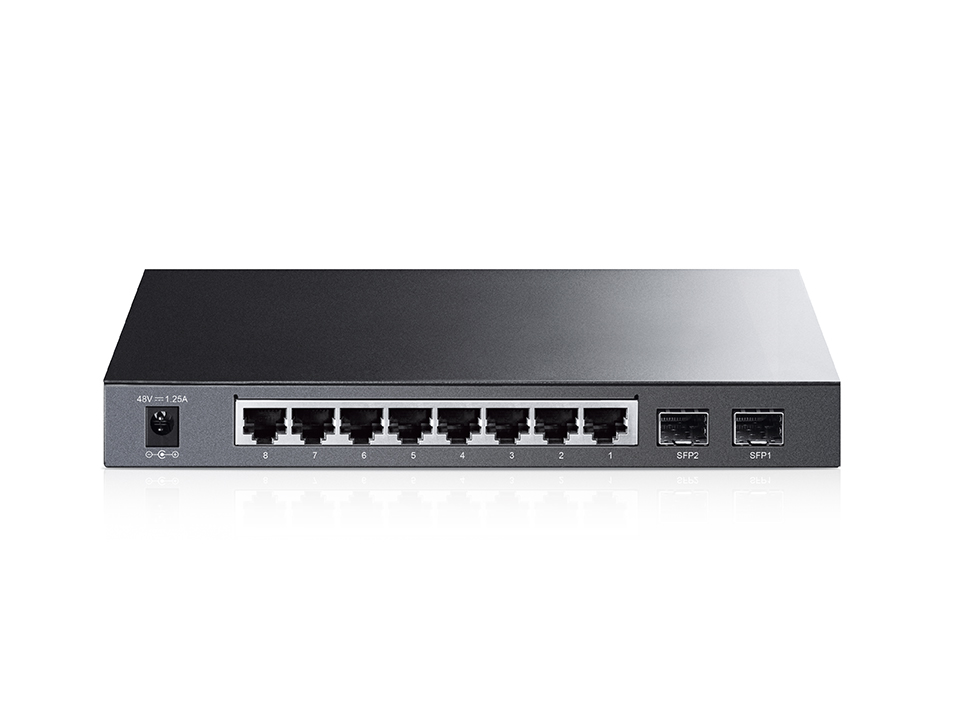

- 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX)
Network Media :
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
- (maximum 100m)
- 100BASE-FX: MMF, SMF
- 1000BASE-X: MMF, SMF
PoE Ports (RJ45) :
- Standard: 802.3af compliant
- PoE Ports: 8 Ports
- Power Supply: 53W
Fan Quantity :
- Fanless
Dimensions (W X D X H) :
- 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
Power Consumption :
- Maximum (PoE on): 63.4W (220V/50Hz)
- Maximum (PoE off): 10.4W (220V/50Hz)
Power Supply :
- 100~240VAC, 50/60Hz
Performance Specifications
Bandwidth/Backplane :
- 20Gbps
MAC Address Table :
- 8k
Packet Buffer Memory :
- 512KB
Packet Forwarding Rate :
- 14.9Mpps
Jumbo Frame :
- 9216 Bytes
Software Specifications
L2 Switching Features :
- IGMP Snooping V1/V2/V3
- 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
- Spanning Tree STP/RSTP/MSTP
- BPDU Filtering/Guard
- TC/Root Protect
- Loop back detection
- 802.3x Flow Control
- LLDP(LLDP-MED)
Quality of Service :
- Support 802.1p CoS/DSCP priority
- Support 4 priority queues
- Queue scheduling: SP, WRR, SP+WRR
- Port/Flow- based Rate Limiting
- Voice VLAN
VLAN :
- Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List :
- L2~L4 package filtering based on source and destination
- MAC address, IP address, TCP/UDP ports, 802.1p,
- DSCP, protocol and VLAN ID
- Time Range Based
Security :
- SSH v1/v2
- SSL v2/v3/TLSv1
- Port Security
- Broadcast/Multicast/Unknown unicast Storm Control
Management :
- Web-based GUI and CLI management
- SNMP v1/v2c/v3, compatible with public MIBs and
- TP-LINK private MIBs
- RMON (1, 2, 3, 9 groups)
- CPU Monitoring
- Port Mirroring
- Time Setting: SNTP
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS
Others
Certification :
- CE, FCC, RoHS
Package Contents :

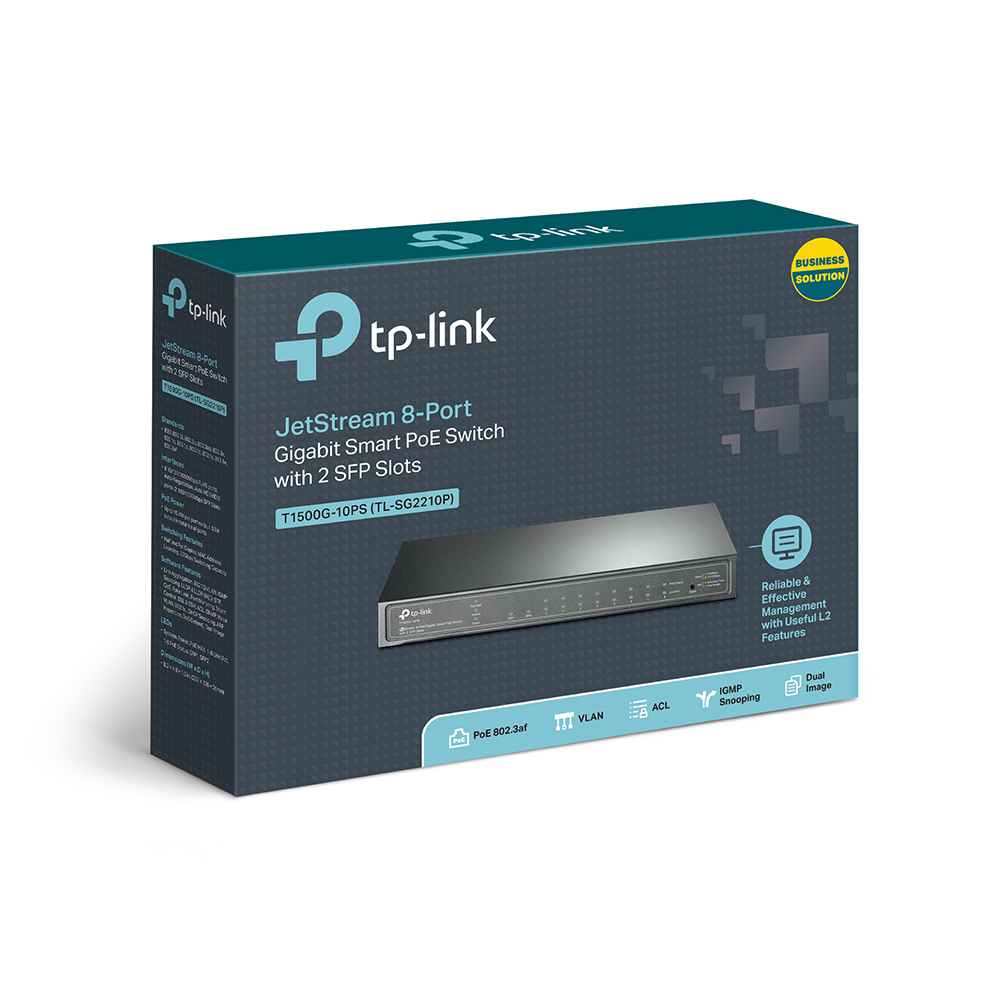

- TL-SG2210P
- Power Adapter
- Quick Installation Guide
- Resource CD
- Rubber Feet
System Requirements :
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
Environment :
- Operating Temperature: 0C~40C (32F~104F);
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
