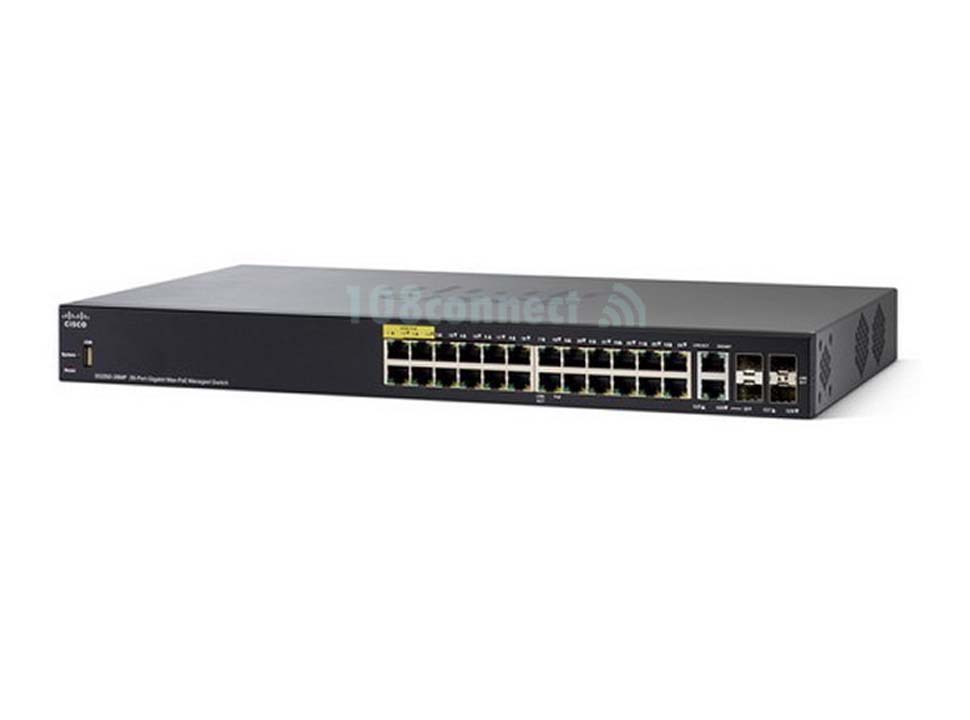

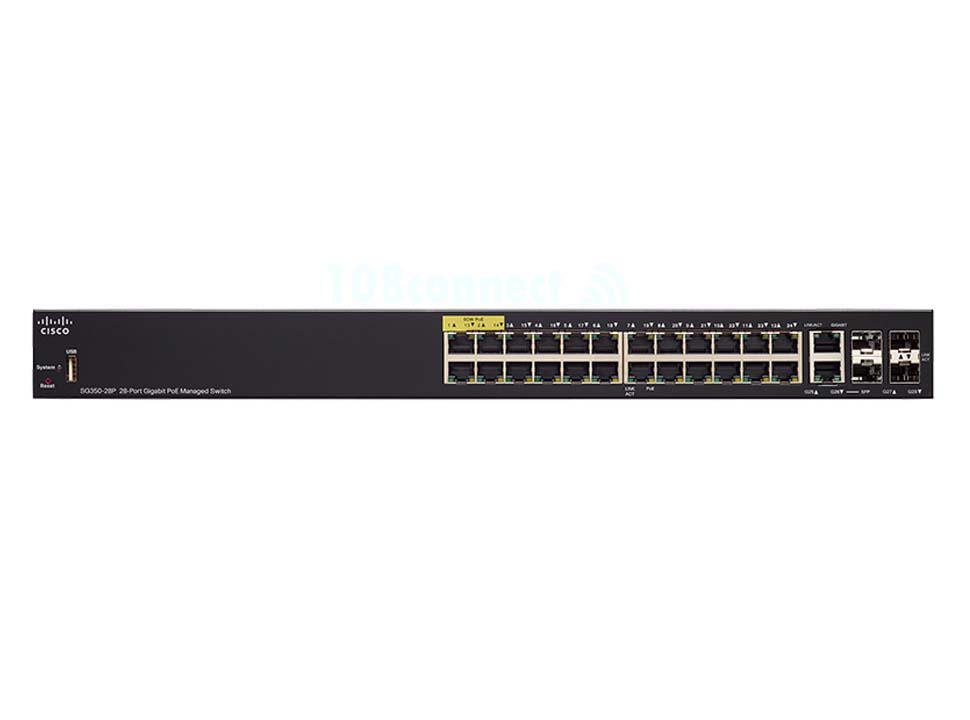

CISCO SG350-28P 28-port Gigabit POE Managed Switch
เพิ่มเมื่อ: 2019-08-08 16:27:27.0
แก้ไขล่าสุด: 2023-11-08 13:24:50.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ SG350-28P 26 10/100/1000 ports (24 PoE ports with 195W power budget) + 2 SFP slots + 2 combo mini-GBIC ports (สินค้ารับประกัน 5 ปี)
CISCO SG350-28P
SG350-28P 26 10/100/1000 ports (24 PoE ports with 195W power budget) + 2 SFP slots + 2 combo mini-GBIC ports
Gigabit Port : 24 10/100/1000 ports
SFP slots : 2 ports
Combo Port (RJ-45+SFP) : 2 combo mini-GBIC ports
PoE Port : 24 ports
Power Dedicated to PoE : 195W
PoE standard : 802.3at PoE+, 802.3af, 802.3xx 60W
Product Features
- Link Flap Prevention
- Support auto detect 100M or 1000M Small Form-Factor Pluggable (SFP)
modules and auto configure the correct speed.
- The speed of the SFP ports can be manually configured
- USB port that allows the following:
- Backing up of configuration files
- Loading of new image or configuration files
- Quality of Service (QoS)
Egress policy
- Egress ACL
- 2 Rate 3 Colors (2R3C)
- Port Monitor/ Switched Port Analyzer (SPAN)
- 7-session SPAN
- Policy-based Flow Mirroring
- Switch Management
- Command Line Interface (CLI) Output modifier
- Bonjour IPv6 Support
- Web-based utility
- Search
- Wizards: Access Control List (ACL)
- Save icon
- Syslog Popup
- Show tech-support
- Traffic Monitoring
- Counters History/Counters Graph
- SFLOW v5
- Packet Processor - AlleyCat3: 98DX3235 (GE), 98DX1235 (FE)
- Embedded CPU - Marvell MSIS /400Mhz
- PHY-
- 88E1680 - Integrated Octal 10/100/1000 Mbps Energy Efficient Ethernet Transceiver
- 88E3680 - Integrated Octal 10/100 Mbps Energy Efficient Ethernet Transceiver
- 88E1543 - Combo port support
- DRAM - 512 MB (DDR3)
- Flash - 256 MB NAND Flash
- Protocol Based Virtual Local Area Network (VLAN)
- IP Subnet Based VLAN
- Logging aggregation disabled by default
Ports
- Power over Ethernet (PoE) Support
- 60W PoE
- PoE Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol (CDP) support (power negotiation)
- PD port support (PD70224 + PD70211)
- New PoE chipset allows devices to function as power client and request specific power consumption
- PoE controller embedded in Network ASIC (AC3) allows faster communication speed between
the Network-ASIC and the PoE-chip
- 4-port AF/AT (Ports 1-2, 13-14)
- two Combo ports that consist of one RJ45 interface and one Mini-GBIC (SFP) interface
- Rest of the ports is Power Sourcing Equipment (PSE): AF/AT.
- PSE Port support: 24 ports
- Up to 12 simultaneous ports with full 15.4 support
- Console/Terminal Port (RJ45) for device management and debug
- asynchronous data of eight data bits
- one-stop bit
- no parity
- Default Baud rate of 115200 bps51H4FP1E51H4FP1E
- USB 2.0 port support
- FAT32 for Read/Write
- NTFS for Read-only
Buttons
- Reset button
