D-LINK DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks

 เพิ่มเมื่อ: 2022-11-17 11:45:04.0
 แก้ไขล่าสุด: 2024-02-15 18:30:01.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
ฮับสวิตซ์จ่ายไฟ DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks
9500.00 บาท

ส่งอีเมลล์ให้เพื่อน

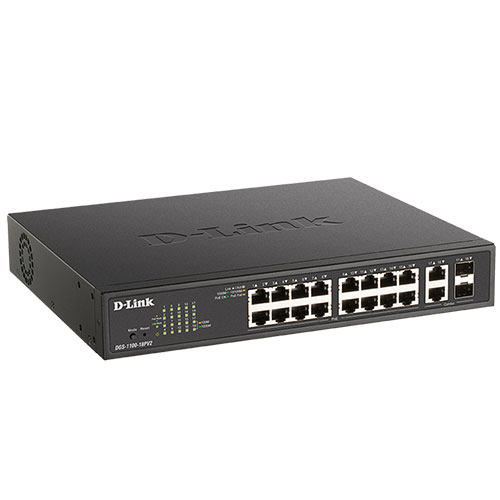

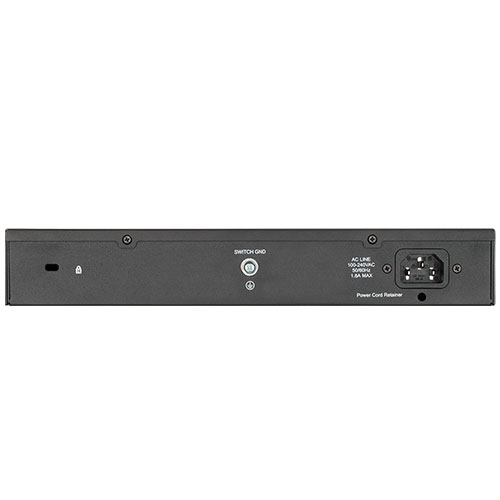

 D-LINK DGS-1100-18PV2

DGS-1100-18PV2 18-port Gigabit Smart Managed PoE (130W) Switch, 2-port Gigabit Combo Uplinks

• 16 x 10/100/1000BASE-T PoE+ ports
• 2x RJ45/SFP Combo ports
• PoE+ support with up to 30W per port
• 130 Watts PoE Power Budget
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management



Auto MDI/MDIX

• Yes
10/100/1000BASE-T PoE ports (802.3af/at)

• 16
802.3bt 90W Support

• No
10/100/1000BASE-T ports (Including PoE ports)

• 16 + 2 (Combo)
Gigabit SFP ports

• 2 (Combo)
Port-based Bandwidth Control

• Yes
Class of Service (CoS)

• Yes
802.3x Flow Control

• Yes
Store-and-Forwarding

• Yes
Comply with RoHS

• Yes
Energy Efficiency Ethernet (EEE)

• Yes
FAN

• Fixed Fan
Jumbo Frame

• 9,216 bytes
Loopback Detection (LBD)

• Yes
IGMP Snooping

• Yes
802.1AX Link Aggregation

• Yes
802.3ad Link Aggregation

• Yes
SNMP

• Yes
Web-based GUI

• Yes
D-Link Discover Protocol (DDP)

• Yes
D-Link Network Assistant

• Yes
Port Mirroring

• Yes
Cable Diagnostics

• Yes
Switch Capacity

• 36 Gbps
Max. Packet Forwarding Rate

• 26.78 Mpps
Maximum Power Consumption (PoE On)

• 168W
Maximum PoE Budget

• 130 W (30W max. per PoE port)
Rate Limiting

• Yes
Power Input

• AC: 100-240V
Queue Handling

• Yes
Strict Priority Queue (SPQ)

• Yes
Weighted Round Robin (WRR)

• Yes
SSL

• Yes
Broadcast/Multicast/Unicast Storm Control

• Yes
Traffic Segmentation

• Yes
D-Link Safeguard Engine

• Yes
DoS Attack Prevention

• Yes
802.1D Spanning Tree (STP)

 • Yes
802.1w Rapid Spanning Tree (RSTP)

• Yes
Dimension

• 280 x 230 x 44mm
Weight

• 2.10kg
Operation Temperature

• -5-50°C
802.1Q VLAN

• Yes
Port-based VLAN

• Yes
Voice VLAN

• Yes
Auto Surveillance VLAN

• Yes
Asymmetric VLAN

• Yes
EMI Certification

• FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Safety Certification

• cUL, UL, LVD, CB, BSMI
