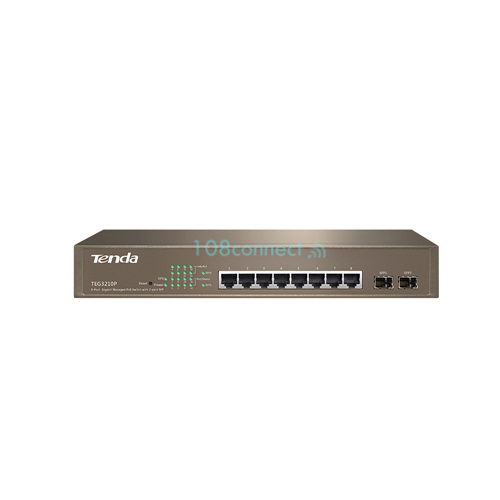

TENDA TEG3210P Managed Switch 8 port Gigabit PoE+2SFP
เพิ่มเมื่อ: 2018-01-25 18:44:25.0
แก้ไขล่าสุด: 2019-10-17 13:46:15.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comTEG3210P Managed Switch 8 port Gigabit PoE+2SFP (สินค้ารับประกัน 5 ปี)
TENDA TEG3210P
TEG3210P Managed Switch 8 port Gigabit PoE+2SFP
Copper Ports
- 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots
- 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)
- Compatible with 100Base-FX SFP
Switch Architecture
- Store-and-Forward
Backbound Bandwidth
- 20Gbps / non-blocking
Throughout
- 14.88Mpps
Address Table
- 8K entries, automatic source address learning and aging
Share Data Buffer
- 1392 kilobytes
Flow Control
- IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex
Jumbo Frame
- 9Kbytes
Reset Button
- < 5 seconds: System reboot
- > 5 seconds: Factory Default
Dimension
- 294*178.8*44 mm(L×W×H ), 1U high
Weight
- 1.8kg
LED
- Power,PoE-Max
- Link/Act per Gigabit port
- PoE In-Use for Port-1~ 8
Power Consumption
- Max. 115 Watts
- AC 100-240V, 50/60Hz
PoE Standard
- IEEE 802.3af / at PoE / PSE
PoE Power Supply Type
- End-Span
PoE Power Output
- Per Port 51V DC
- Max. 40 Watts
Power Pin Assignment
- 1/2(+), 3/6(-)
PoE Power Budget
- Max. 115 Watts
AC 100-240V, 50/60Hz
PoE Ability
- Number of PD @ 7 Watts 8
- Number of PD @ 15.4 Watts 8
- Number of PD @ 30.8 Watts 4
Management
- Telnet, Web Browser, SNMPv1, v2c
Port configuration
- Port disable / enable
- Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection
- Flow Control disable / enable
- Bandwidth control on each port
- Power saving mode control
Port Status
- Display each port’s speed duplex mode, link status, Flow control status,
Auto negotiation status, trunk status
Port Mirroring
- TX / RX / Both
- Many to 1 monitor
VLAN
- 802.1Q Tagged Based VLAN, up to 64 VLAN groups
- Q-in-Q tunneling
- Private VLAN Edge (PVE)
- MAC-Based VLAN
- Protocol-Based VLAN
- Voice VLAN
- Up to 10 VLAN groups, out of 160 VLAN IDs
Link Aggregation
- IEEE 802.3ad LACP / Static Trunk
- Supports 5 groups of 10-Port trunk support
QoS
- Traffic classification based, Strict priority and WRR
- 8-Level priority for switching
- Port Number- 802.1p priority- 802.1Q VLAN tag- DSCP/TOS field in IP Packet
IGMP Snooping
- IGMP (v1/v2) Snooping, up to 200 multicast Groups
- IGMP Querier mode support
Regulation Compliance
- FCC,CE,RoHS
