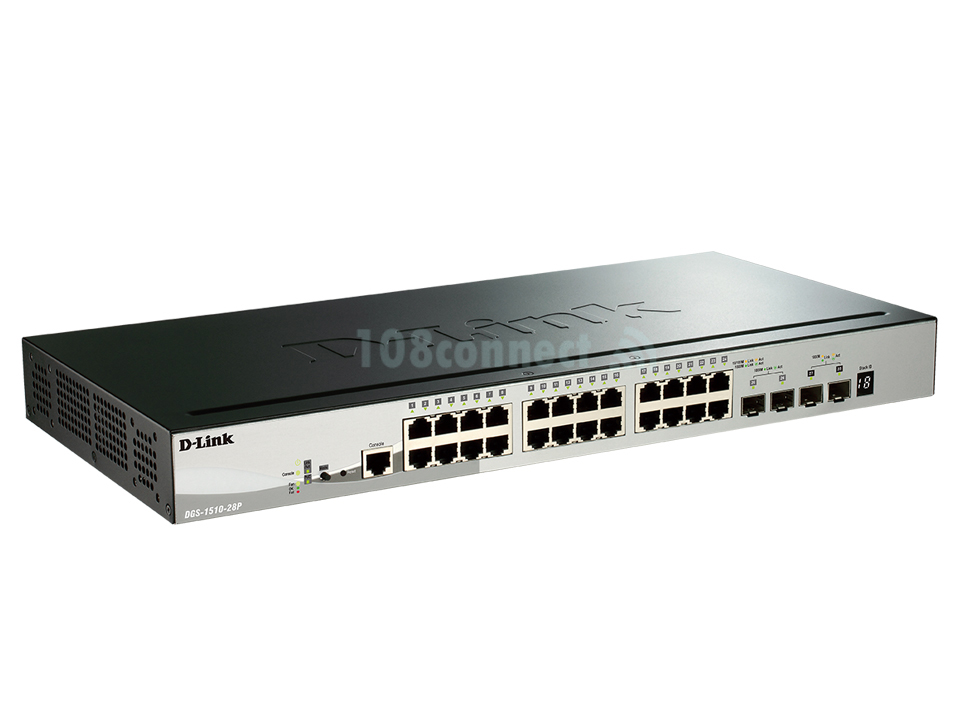

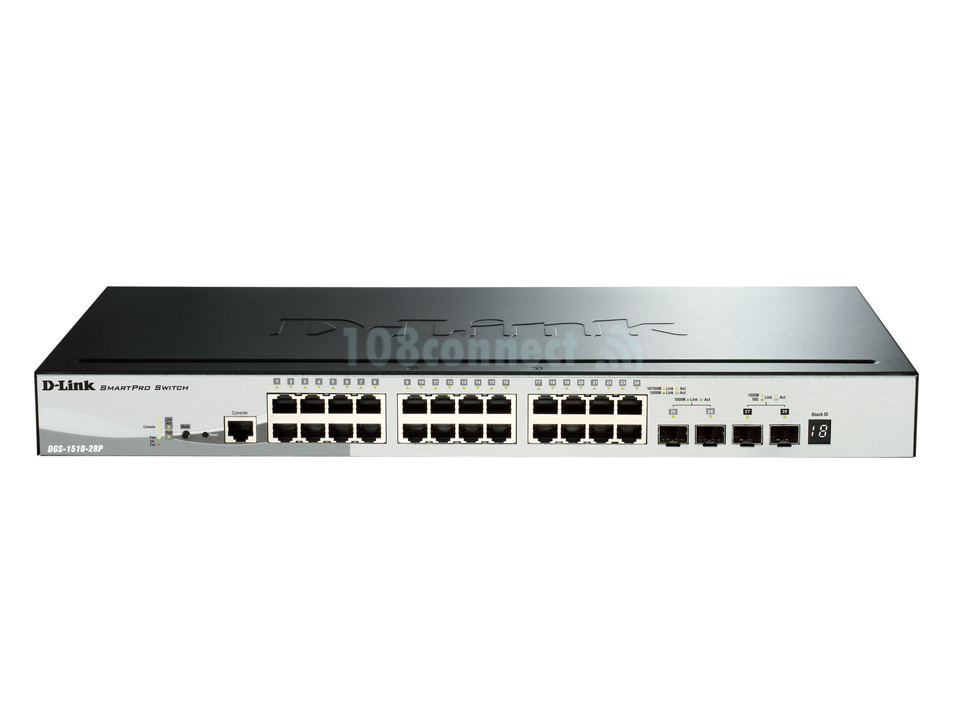

D-LINK DGS-1510-28P 28-Port Layer 3 Lite Smart Managed Gigabit PoE Switch with 2 10G Uplink

 เพิ่มเมื่อ: 2019-11-21 19:20:59.0
 แก้ไขล่าสุด: 2020-07-13 14:10:55.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
DGS-1510-28P 24-port UTP802.3af PoE & 802.3at PoE+ 10/100/1000Mbps, 2-port Gigabit SFP, 2-port 10G SFP+ Smart Switch (Ports 1 to 24: Up to 30 W, Power Budget : 193 W, H/W : A1 (สินค้ารับประกันตลอดอายุการใช้งาน)
21900.00 บาท

 D-LINK  DGS-1510-28P

DGS-1510-28P 24-port UTP802.3af PoE & 802.3at PoE+ 10/100/1000Mbps, 2-port Gigabit SFP, 2-port 10G SFP+ Smart Switch (Ports 1 to 24: Up to 30 W, Power Budget : 193 W, H/W : A1

- 24 Ports 10/100/1000 Base-T PoE + 2 SFP Ports + 2 x 10G SFP+ Slots

- Support IEEE 802.3af (PoE) and 802.3at (PoE+) Standard

- Physical Stacking via two 10 Gigabit SFP+ Ports with stacking up to six device

- Virtual stacking of up to 32 units via D-link’s Single IP Management (SIM)

- Support G.8032 ERPS to achieve high reliability  and network stability

- Auto Surveillance (ASV), Auto Voice VLAN for VoIP and Video Surveillance deployments.

- 802.1X port based authentication, for authentication through external RADIUS servers

- IEEE 802.3az Energy Efficient Ethernet with  D-Link Green 3.0 power-saving features

- Loopback Detection automatically disables port or VLAN when a loop is detected

- Support Layer 2 Features – IGMP & MLD Snooping, 802.3x  Flow control  and LLDP



Model Number

- DGS-1510-28P

Hardware Version

- A1

Size

- 19” standard rack width, 1U height

Interfaces

- 24 x 10/100/1000 Mbps PoE

- 2 x Gigabit SFP

- 2 x 10G SFP+

Port Standards & Functions

- IEEE 802.3 10BASE-T Ethernet

- IEEE 802.3u 100BASE-TX Fast Ethernet

- IEEE 802.3ab 1000BASE-T Gigabit Ethernet

- EEE 802.3ae 10 Gigabit Ethernet

- IEEE 802.3x Flow Control for full-duplex mode, auto-negotiation

Network Cables

- UTP Cat. 5, Cat. 5e (100 m max.)

- EIA/TIA-568 100-ohm STP (100 m max.

Duplex Mode

- Full/half-duplex for 10/100 Mbps and full-duplex for 1000 Mbps speed

Media Interface Exchange

- Auto or configurable MDI/MDIX

Switching Capacity

- 92 Gbps

Transmission Method

- Store-and-forward

MAC Address Table

- Up to 16,384 entries per device

MAC Address Update

- Up to 512 static MAC entries

- Enable/disable auto-learning of MAC addresses

Maximum Packet Forwarding Rate

- 68.45 Mpps

Packet Buffer Memory

- 1.5 MB per device

MTBF

- 275,428 hours

PoE Standard

- IEEE 802.3af/at



Datasheet
