| WiFi Ceiling Access point

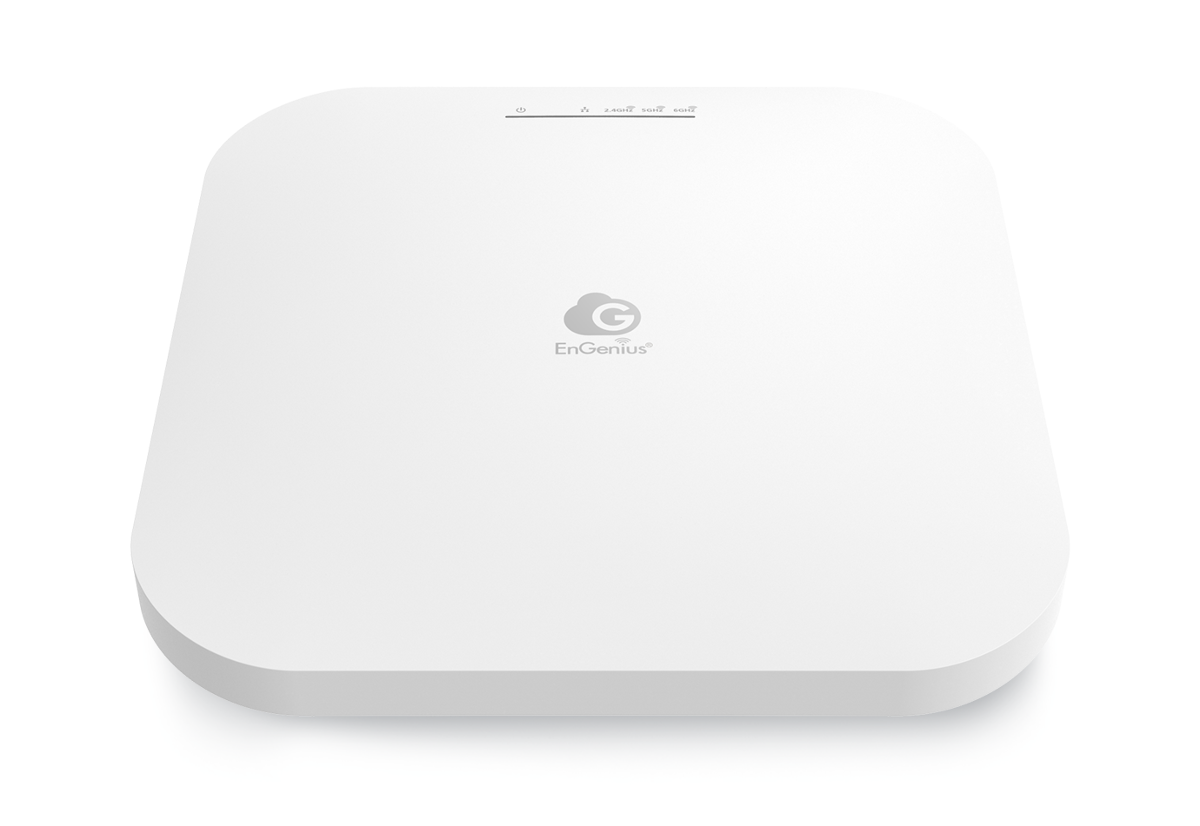

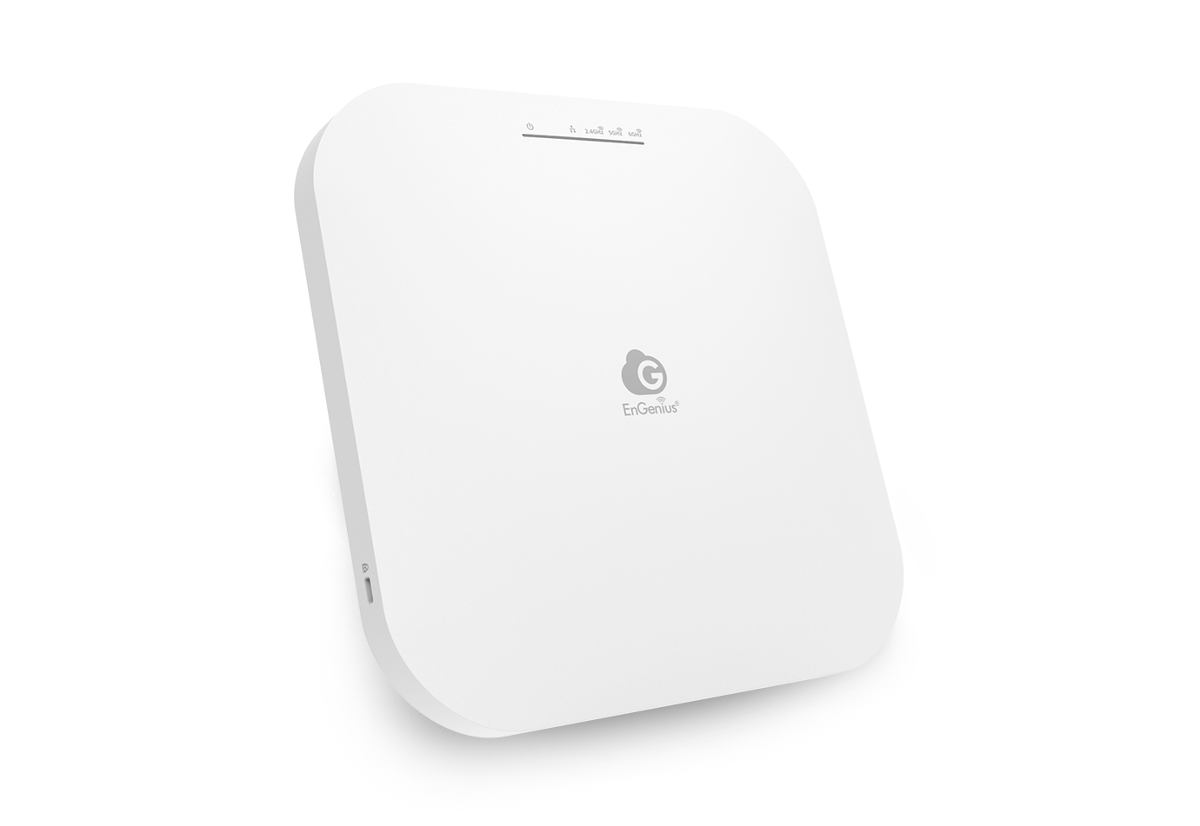

| EnGenius ECW516L Cloud Lite BE13700 Wi-Fi7 2x3x3 Tri-Band Indoor Access Point
EnGenius ECW516L Cloud Lite BE13700 Wi-Fi7 2x3x3 Tri-Band Indoor Access Point
เพิ่มเมื่อ: 2025-01-08 13:07:06.0
แก้ไขล่าสุด: 2025-01-28 17:25:52.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point EnGenius ECW516L Cloud Lite BE13700 Wi-Fi7 2x3x3 Tri-Band Indoor Access Point (สินค้ารับประกัน 3 ปี)
EnGenius ECW516L
Access Point (แอคเซสพอยซ์) EnGenius ECW516L Cloud Lite BE13700 Wi-Fi7 2x3x3 Tri-Band Indoor Access Point
EnGenius Cloud Managed Wi-Fi 7 2x3x3 Access Point ECW516L is a cost-effective model designed for small businesses. It support tri-concurrent 802.11be architecture, delivering speeds up to 700 Mbps on the 2.4GHz, 4,300 Mbps on the 5GHz, and 8,700 Mbps on the 6GHz band, providing high-performance connectivity. With seamless integration into the EnGenius Cloud platform, it offers easy management and robust security through WPA3, making it an ideal solution for businesses seeking enterprise-grade performance at an affordable price.
Wi-Fi 7 Technology: Tri-concurrent 802.11be architecture with backward compatibility for legacy Wi-Fi devices.
High-Performance Speeds: Delivers 8,700 Mbps (6GHz), 4,300 Mbps (5GHz), and 700 Mbps (2.4GHz) throughput.
Advanced Security: Integrated WPA3 and WPA2-AES authentication protection.
Professional-Grade Antenna: 5 dBi integrated system with 2x2 (2.4GHz) and 3x3 (5GHz/6GHz) configuration.
Versatile Connectivity: 2.5GE PoE+ port for power and high-speed networking.
Cloud Management: Free local and remote management via EnGenius Cloud.
Flexible Deployment: Multiple operating modes with AP, STA, and Mesh support.
Technical Specifications :
Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
Backward compatible with 802.11a/b/g/n/ac/ax
IEEE 802.3 u/ab
Antenna
2 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
3 x 5 GHz: 5 dBi(Integrated Omni-Directional)
3 x 6 GHz: 5 dBi(Integrated Omni-Directional)
Scanning Radio
N/A
BLE
N/A

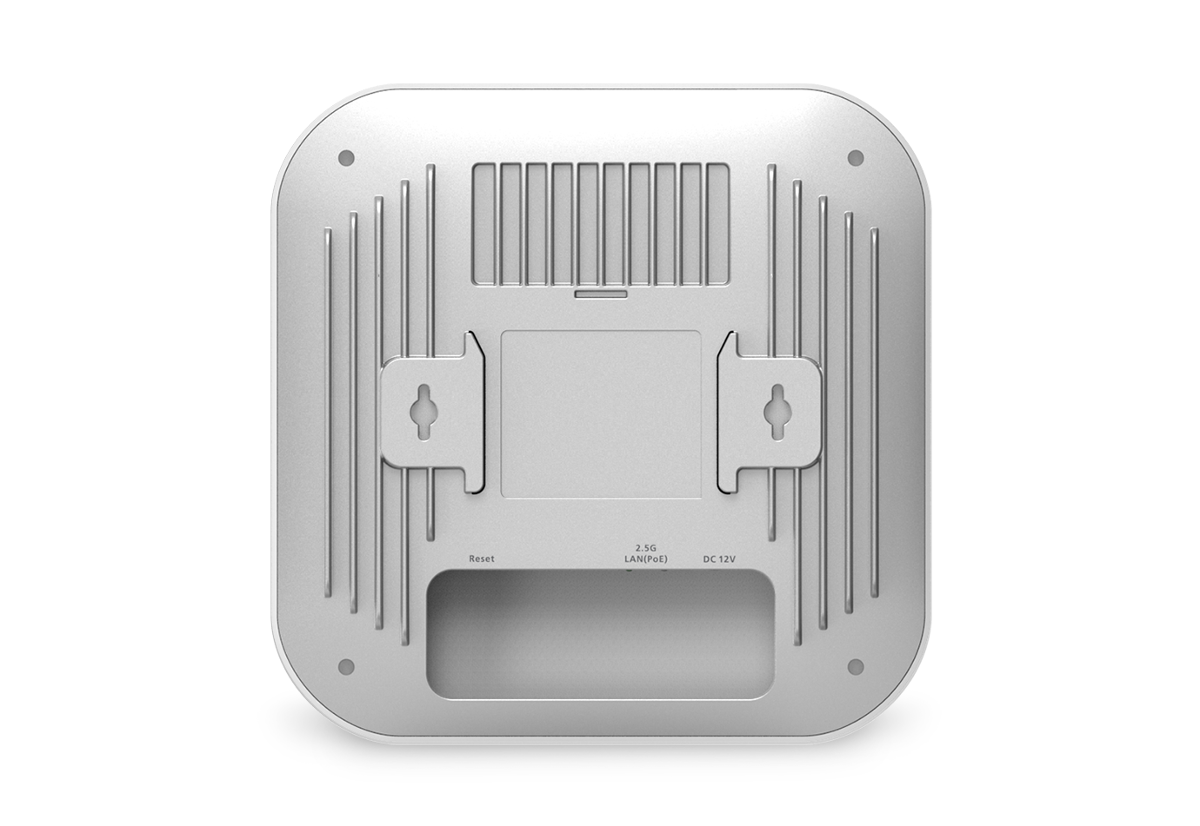

Physical Interfaces
1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x 6GHz
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter
Maximum Power Consumption
20.7W
Wireless & Radio Specifications :
Operating Frequency
Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6 GHz
Operation Modes
Managed mode: AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5925-7125MHz
Transmit Power
Up to 22 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
Up to 22 dBm on 6 GHz
(Maximum power is limited by regulatory domain)
Radio Chains
2 x 2:2
3 x 3:3
Management Features :
Multiple BSSID
8 SSIDs on both 2.4GHz and 5GHz bands
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Compliance With IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Fast Roaming
802.11r/k
Wireless Security
WPA2-PSK
WPA3-PSK
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access Control
Interface
IPv4, IPv6
Local Web Access
Supports HTTP or HTTPS
