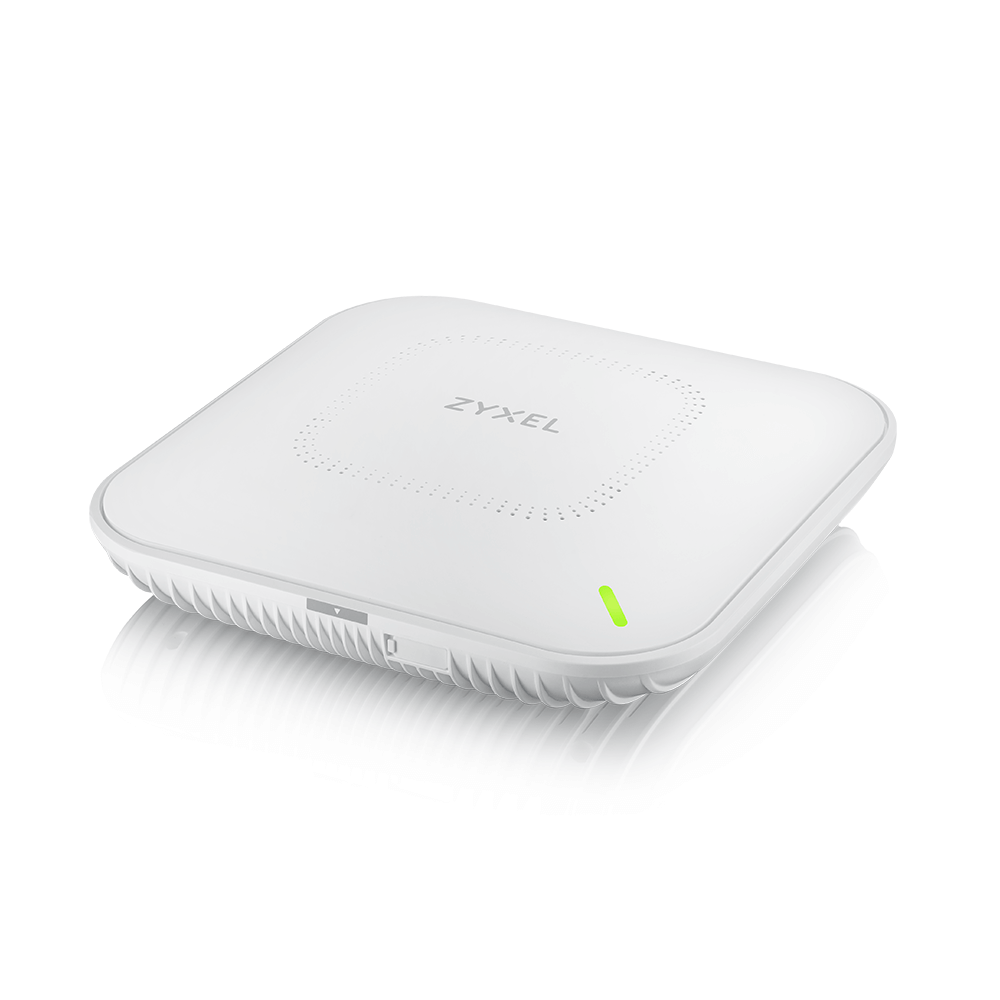

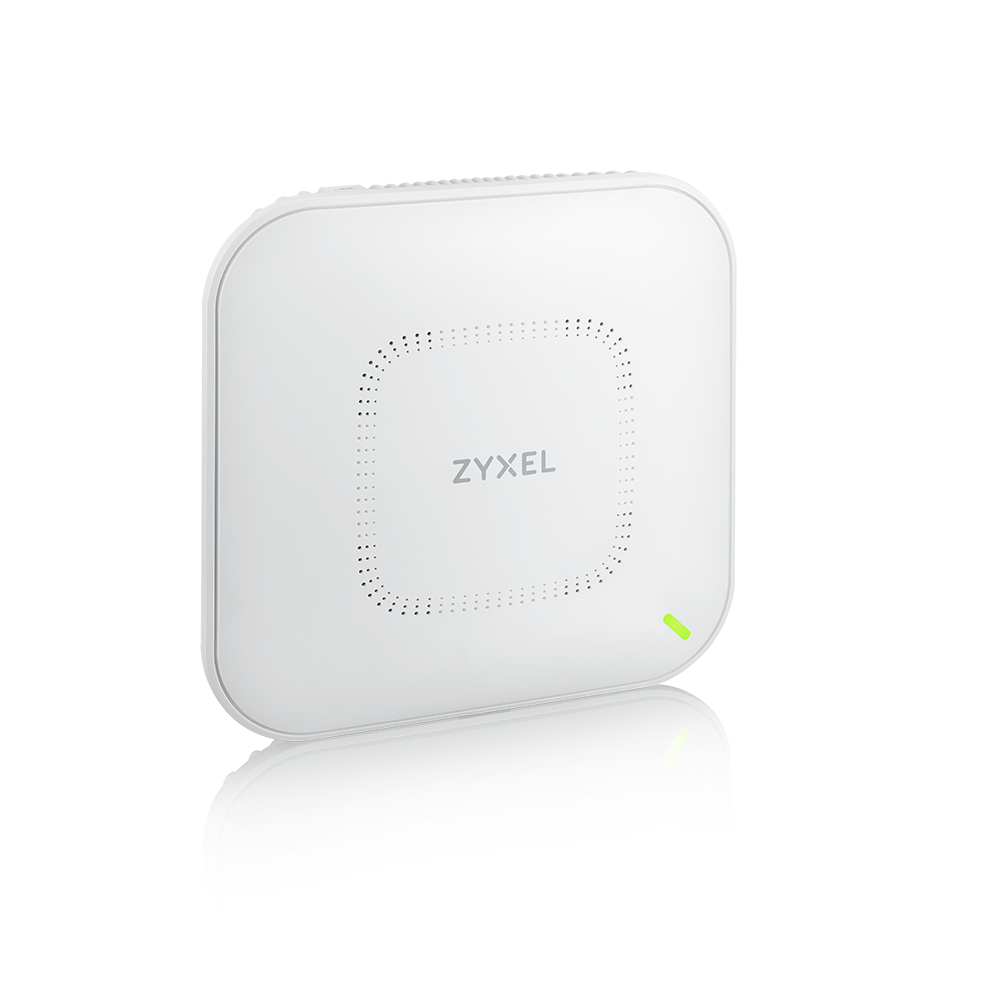

| ZYXEL WAX650S Wireless AX3350 (WiFi-6), Tri-Mode Dual-radio 4x4 MIMO Unified Pro Access Point
ZYXEL WAX650S Wireless AX3350 (WiFi-6), Tri-Mode Dual-radio 4x4 MIMO Unified Pro Access Point
เพิ่มเมื่อ: 2020-06-09 15:14:50.0
แก้ไขล่าสุด: 2024-02-13 11:08:13.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comWAX650S Wireless AX3350 (WiFi-6), Tri-Mode Dual-radio 4x4 MIMO Unified Pro Access Point with Smart Antenna (Free 1YR Nebula Professional license) (สินค้ารับประกัน ตลอดอายุการใช้งาน)
ZYXEL WAX650S
WAX650S Wireless AX3350 (WiFi-6), Tri-Mode Dual-radio 4x4 MIMO Unified Pro Access Point with Smart Antenna (Free 1YR Nebula Professional license)
The new WiFi 6 standard delivers faster, more consistent connections for every user – even in higher density environments. Any organization that needs to accommodate a large number of devices, can offer better services for everyone, every time they connect to WiFi.
By delivering faster connections that won’t suffer from increased latency when more devices are connected, WiFi 6 delivers the speed and consistency needed to keep pupils engaged and enthusiastic, so they can make the very best use of technology and online learning resources, helping them to achieve more and teachers to be more effective.
Wireless
Standard : IEEE802.11 ax/ac/n/g/b/a
MIMO : MU-MIMO
Wireless speed :
2.4GHz: 1150Mbps
5GHz: 2400Mbps
Frequency band ;
2.4 GHz (IEEE 802.11 b/g/n)
• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
• USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth : 20-, 40- ,80- and 160-MHz
Conducted typical transmit output power :
US (2.4GHz/5GHz): 28/28dBm
EU (2.4GHz/5GHz): 19/26dBm
RF Design
Antenna type : 4x4 Smart Antenna
Antenna gain :
2.4GHz: Peak Gain 3dBi
5GHz: Peak Gain 5.8dBi
Minimum Receive sensitivity : -105 dBm
WLAN feature
Band Steering : Yes
WDS : Future Support
Mesh AP (By License) : Future Support
Mesh AP for multiple SSID with VLAN : Future Support
Smart mesh : Future Support
Fast roaming : Pre-authentication, PMK caching and 802.11k/v/r
DCS (Auto Channel) : Yes
Load balancing : Yes
Security
Wireless Security
• WPA
• WPA-PSK
• WPA-Enterprise (WPA/WPA2/WPA3)
Access management
• L2-isolation
• MAC filtering
• Rogue AP detection
• EAP
• IEEE 802.1X
• RADIUS authentication
Networking
IPv6 ; Yes
VLANs : Yes
WMM : Yes
U-APSD : Yes
DiffServ marking : Yes
Physical Specifications and others
Item : Dimensions (WxDxH)(mm/in.) 230 x 235 x 53.5/9.06 x 9.25 x 2.11
Weight (g/lb.) 1160/2.56
Packing : Dimensions (WxDxH)(mm/in.) 282 x 266 x 79/11.1 x 10.47 x 3.11
Weight (g/lb.) 1490/3.38
Included accessories
• Mount plate
• Mounting screws
MTBF (hr)180,653
Physical Interfaces
Ethernet port
• 1 x 1/2.5/5Gbps Ethernet (PoE port)
• 1 x 1Gbps Ethernet
Power
• 802.3BT POE (Maximum power draw: 31W)
• 12V DC input
Environmental Specifications
Operating : Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage : Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
• FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893
• LP0002
EMC
• FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• EN60601-1-2
• BSMI CNS13438
Safety
• Safety EN 60950-1
• IEC 60950-1
• BSMI CNS14336-1
