| D-LINK DGS-F1010P-E 10-Port 1000Mbps Switch with 8 PoE Ports and 2 Uplink Ports PoE budget 96 Watt
D-LINK DGS-F1010P-E 10-Port 1000Mbps Switch with 8 PoE Ports and 2 Uplink Ports PoE budget 96 Watt
เพิ่มเมื่อ: 2020-05-22 15:01:31.0
แก้ไขล่าสุด: 2023-11-24 12:13:59.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ DGS-F1010P-E 10-Port 1000Mbps Switch with 8 PoE Ports and 2 Uplink Ports PoE budget 96 Watt Support transmission Data/PoE up to 250m cable length (สินค้ารับประกัน ตลอดอายุการใช้งาน)

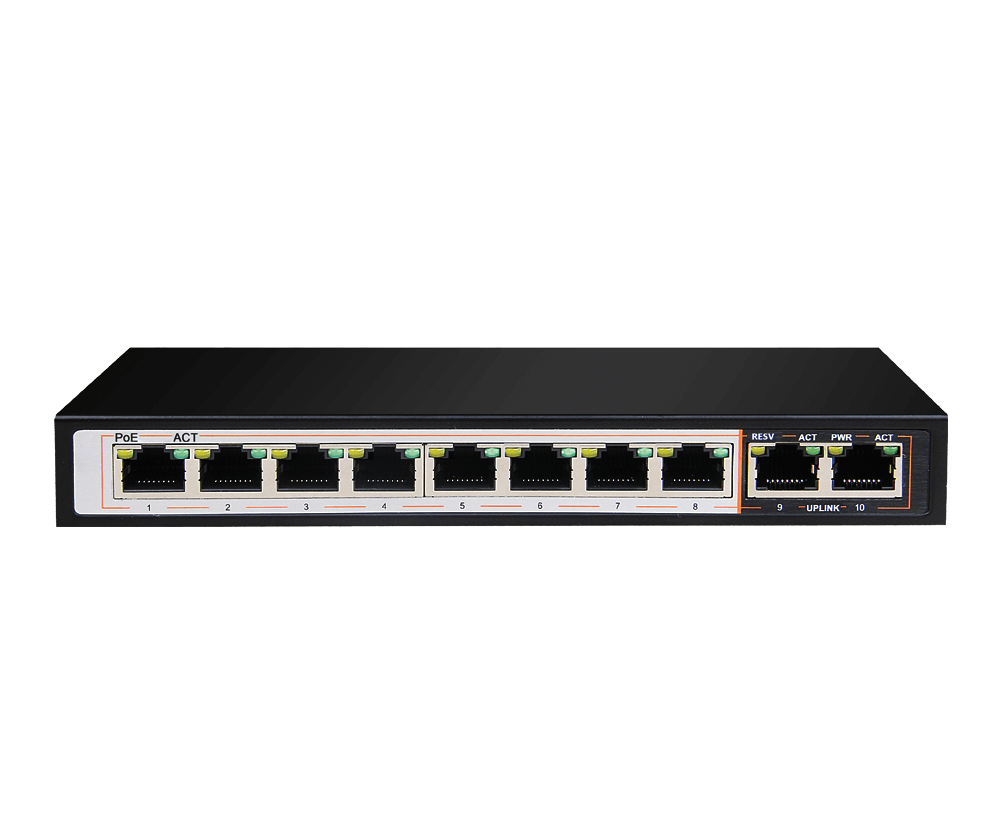

D-LINK DGS-F1010P-E
DGS-F1010P-E 10-Port 1000Mbps Switch with 8 PoE Ports and 2 Uplink Ports PoE budget 96 Watt Support transmission Data/PoE up to 250m cable length
- 8 10/100/1000 Mbps PoE ports
- 2 10/100/1000 Mbps Uplink ports
- 96 Watt PoE budget
- Support IEEE802.3af/at up to 30W per port to PoE compatible devices
- Support transmission Data/PoE up to 250m cable length
- 6KV Lightning protection
- Smart Features: Extend, VLAN, QoS and PoE
- Plug & Play Installation
Specifications
Network Interface : 8 10/100/1000Mbps PoE RJ45 port (port 1 ~port 8) , 2 10/100/1000Mbps uplink RJ45 port (port 9~port 10)
Transmission Rate : 10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto, Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port
Protocols and Standards : IEEE802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, ANSI/IEEE 802.3 NWay auto-negotiation, IEEE802.3x Flow Control, IEEE 802.3af/at standard
Performance : Bandwidth: 20 Gbps (no block), Network delay (100 to 100M bps): maximum 20 μs (using 64byte packet), Frame filtering and transmission rate, 10M: 14,800pps, 100M: 148,800pps, 1000M: 1488,00pps
LEDs Indicator : Power, LINK/ACT，POE
POE Pin : 1/2(+) 3/6(-)
Power : Total Power: 120W
Lightning protection : 6KV
Physical specifications : Dimensions (LxWxH): 184 x 94 x 27mm, Weight: 1.05kg
Environmental norms : Operating Temperature: 0°~40°C Storage Temperature: -10°C~70°C, Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
