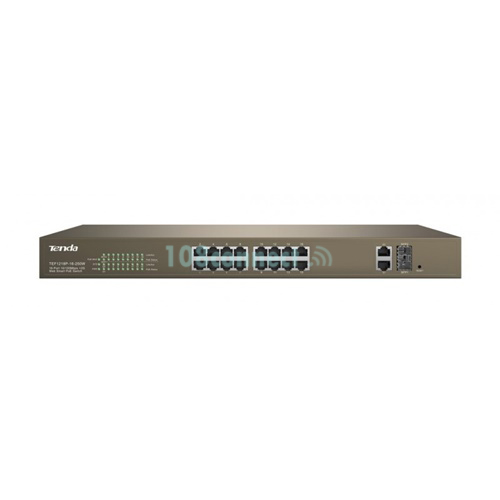

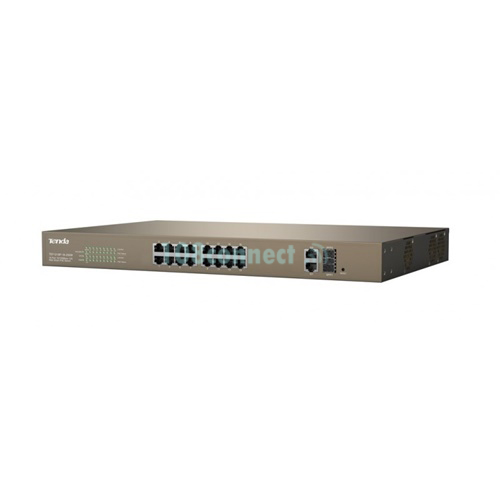

TENDA TEF1218P-16-250W 16-Port 10/100M + 2-Port Gigabit TP/SFP Combo PoE Web Smart

จำนวนครั้งที่เปิดดูสินค้า : 5511 | ความคิดเห็น: 1

TENDA TEF1218P-16-250W 16-Port 10/100M + 2-Port Gigabit TP/SFP Combo PoE Web Smart

เพิ่มเมื่อ: 2018-06-12 15:16:44.0

แก้ไขล่าสุด: 2020-01-04 12:38:26.0

เบอร์โทรติดต่อ: 062-5193997 , 02-4582949

อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TEF1218P-16-250W 16-Port 10/100M + 2-Port Gigabit TP/SFP Combo PoE Web Smart Switch,Complies with IEEE 802.3 af/ at ,Supports PoE power up to 40W for PoE port,Maximum(สินค้ารับประกัน 5 ปี)

8500.00 บาท

TENDA TEF1218P 16-250W

TEF1218P-16-250W 16-Port 10/100M + 2-Port Gigabit TP/SFP Combo PoE Web Smart Switch,Complies with IEEE 802.3 af/ at ,Supports PoE power up to 40W for PoE port,Maximum

- 16 พอร์ต 10 / 100Base-TX

- 2 พอร์ต 10/100 / 1000Base-T

- 2 พอร์ต 1000Base-X SFP Combo)

- ป้องกันฟ้าผ่า: 6 กิโลโวลล์

- รองรับ POE

Standard&Protocol
- IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.3af/at
LED indicator
- 16 * Link/Act LEDs
- 1 * G1 LED
- 1 * G2/SFP2 LED
- 1 * PoE-MAX LED
- 1 * Power LED
- 1 * SYS LED
Interface
- 16 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
- 2 * 10/100/1000 Mbps Base-T RJ45 ports (Data)
- 1 * 10/100/1000 Mbps Base-X SFP port (Combo)
Forwarding Rate
- 5.36 Mpps
Switching Capacity
- 7.2 Gbps
MAC Address Table
- 4K
Lightning Protection
- ≥6KV
Input Voltage
- AC: 100-240V~50/60Hz
PoE Supply
- Ports 1-16 support standard IEEE802.3af/at
- 30W output per PoE port
- 230W output of the total PoE Power
Power Consumption
- 250W output the whole device
Dimension
- 440*178.8*44mm
Environment
- Operating Temperature: 0℃~45℃ (32℉~113℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
PoE management
- Support over temperature protection for PoE module
- Support graphical management detection of PD equipment
VLAN
- Supports Port VLAN
- Supports 802.1Q VLAN
Security
- MAC-Port Binding
Link Aggregation
- Static Trunk Supports 3 groups of 4-Port trunk support

STP
- STP/RSTP
IGMP Snooping
- IGMP (v1/v2) Snooping
Port Mirroring
- N: 1 port mirroring
QoS
- 802.1p and DSCP priority re-marking
- Flow control
- Flexible queue scheduling algorithm can be set
- based on port and queue, support SP, WRR
Firmware Upgrade
- Upgrade via the Web
Management
- Support SNMP v1/v2 and WEB-based management
Certification
- CCC、FCC、CE、RoHS
