| Managed PoE Switches
| TP-LINK TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

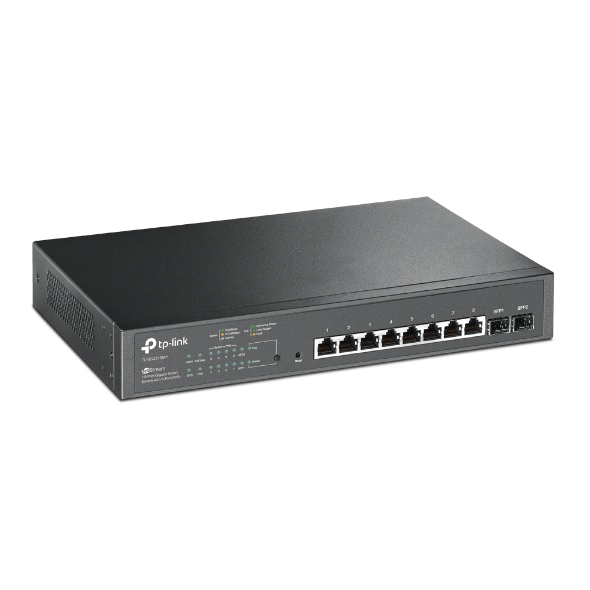

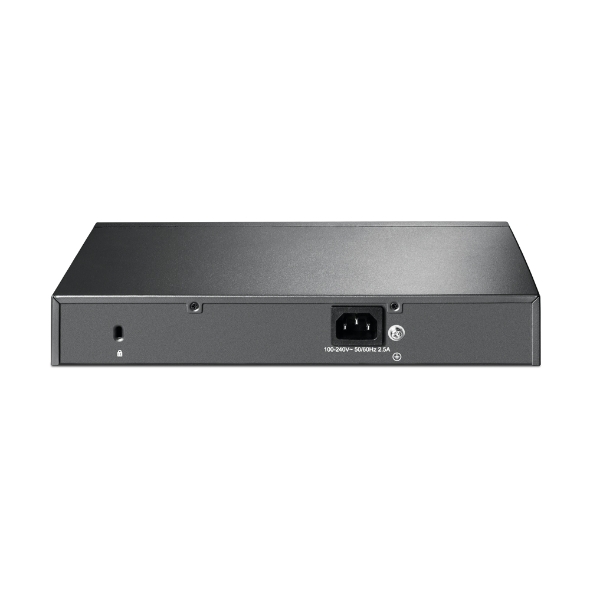

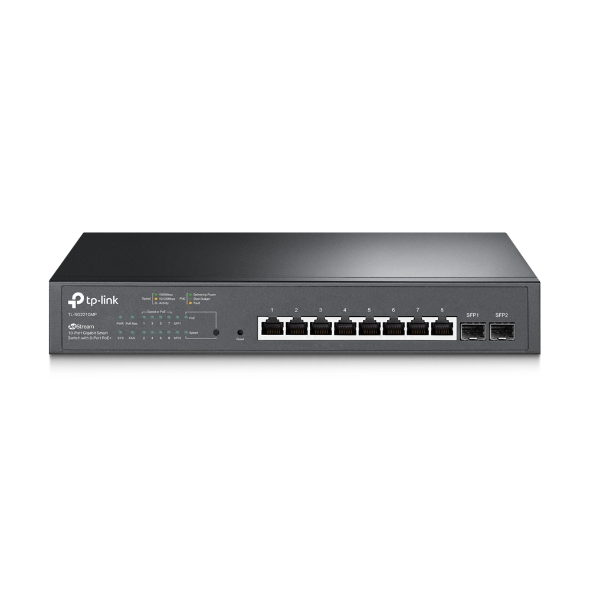

TP-LINK TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
เพิ่มเมื่อ: 2023-02-12 17:25:03.0
แก้ไขล่าสุด: 2023-11-08 11:23:44.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comฮับสวิตซ์จ่ายไฟ TL-SG2210MP10-Port Gigabit Smart Switch with 8-Port PoE+, 8× Gigabit PoE+ Ports, 2× Gigabit SFP Slots (รับประกัน limited lifetime)
TP-LINK TL-SG2210MP
TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+, 8× Gigabit PoE+ Ports, 2× Gigabit SFP Slots
- 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad,
- IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d,
- IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface
- 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
- 2× 100/1000 Mbps SFP Slots
Network Media
- 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
- 100BASE-FX: MMF, SMF
- 1000BASE-X: MMF, SMF
Fan Quantity
- 1
Physical Security Lock
- Yes
Power Supply
- 100-240V AC, 50/60Hz
PoE Ports (RJ45)
- Standard: 802.3at/af compliant
- PoE+ Ports: 8 Ports
- PoE Power Budget: 150 W*
Dimensions ( W x D x H )
- 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Mounting
- Rackmount/Desktop
Max Power Consumption
- V1: 173.9 W (110 V/60 Hz) (with 150 W PD connected); 12.2 W (110 V/60 Hz) (no PD connected)
- V2: 169.5 W (220 V/50Hz) (with 150 W PD connected)
- V3: 175.3 W (110 V/60Hz) (with 150 W PD connected)
- V4: 174.2 W (110V/60Hz) (with 150 W PD connected)
Max Heat Dissipation
- V1: 41.63 BTU/h (with no PD connected); 539.35 BTU/h (with 150 W PD connected)
- V2: 578.42 BTU/hr (220V/50 Hz) (with 150 W PDconnected)
- V3: 597.8 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
- V4: 594.46 BTU/hr (110V/60Hz) (with 150 W PD connected)
Switching Capacity
- 20 Gbps
Packet Forwarding Rate
- 14.9 Mpps
MAC Address Table
- 8K
Packet Buffer Memory
- 4.1 Mbit
Jumbo Frame
- 9 KB
