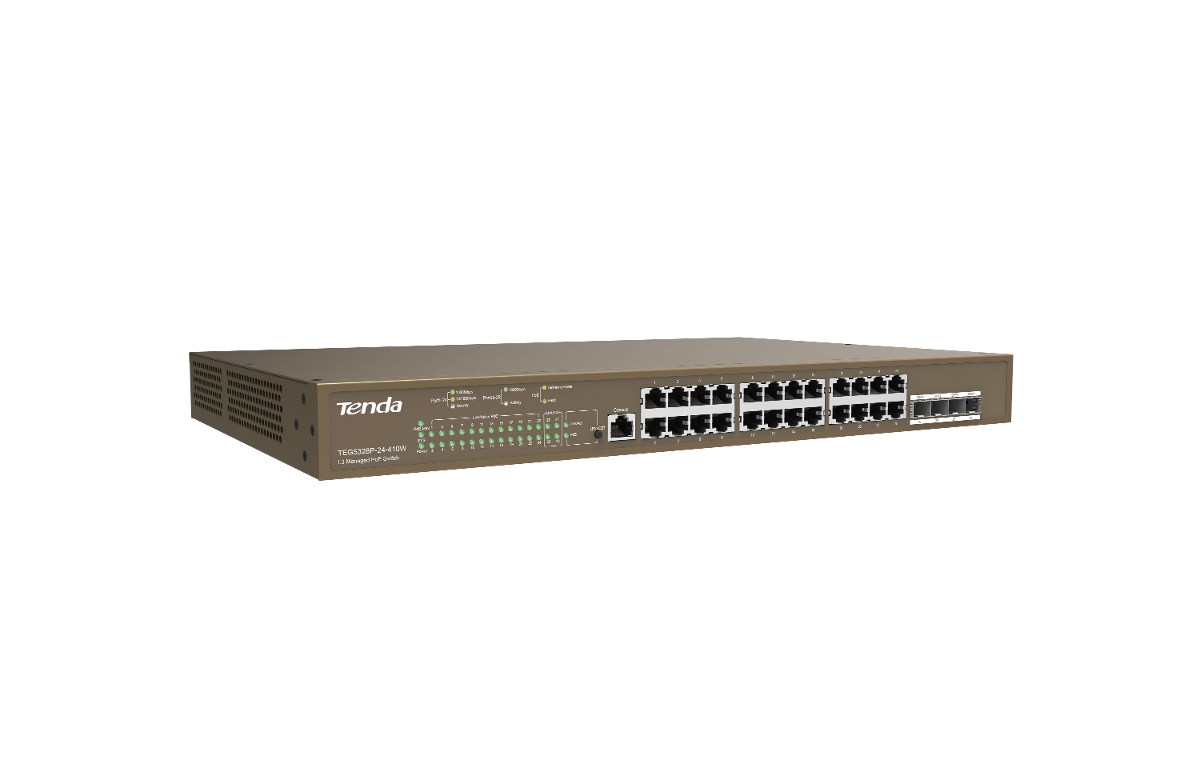

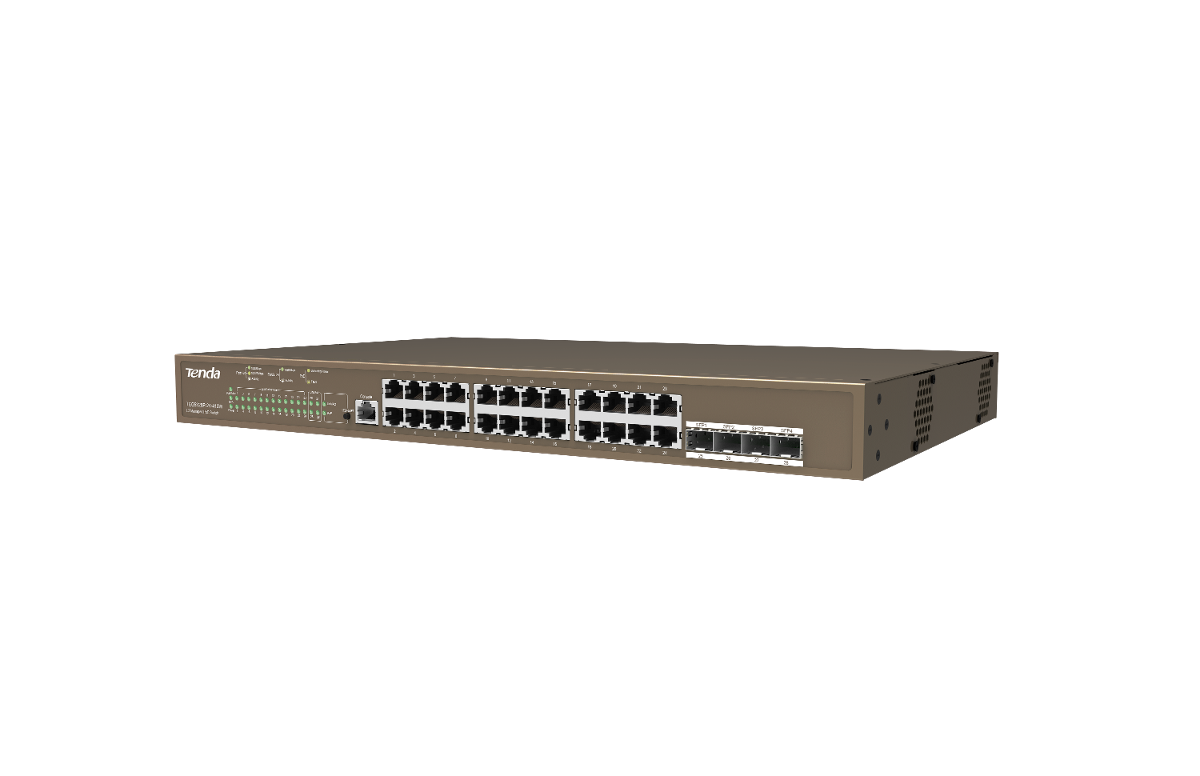

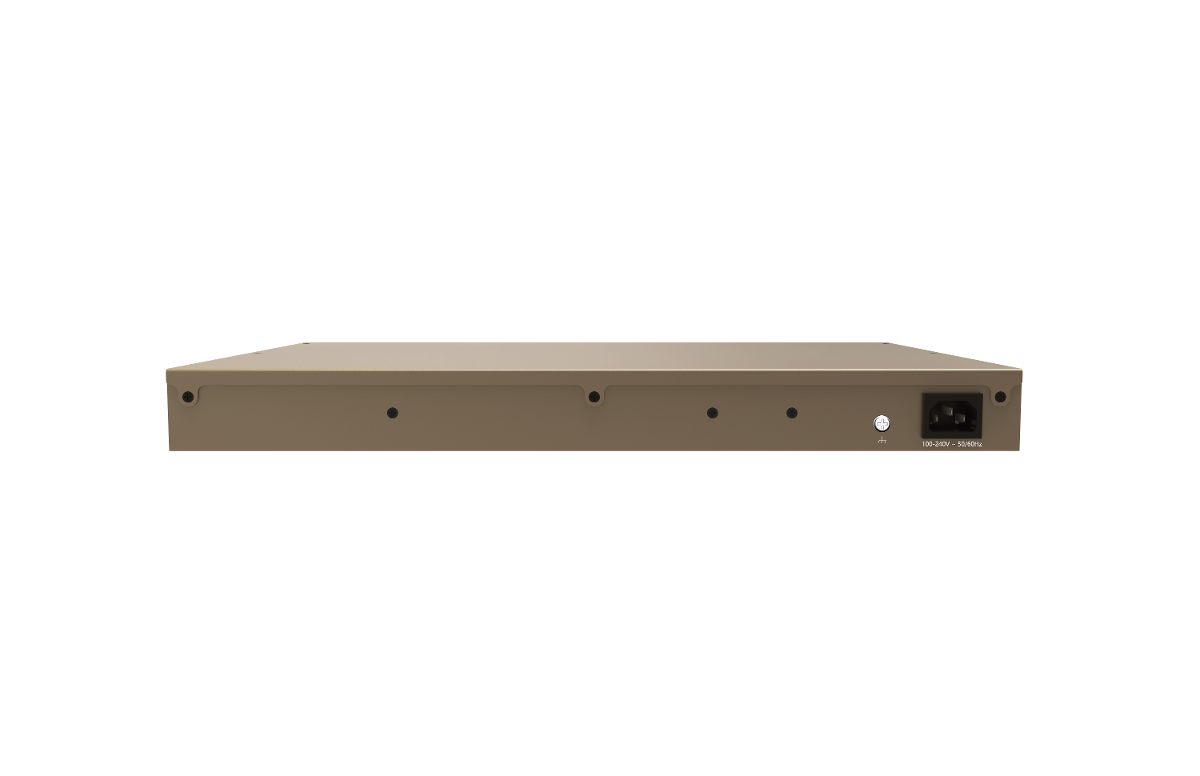

TENDA TEG5328P
TEG5328P 24 port 10/100/1000 Managed PoE Switch, Power Budget 370watt
TEG5328P-24-410W is a Tenda Layer-3 managed PoE switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports, and a PoE power of up to 370 W.With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or access layer of such medium to large networks as enterprises and campuses.
Network standards :
IEEE802..3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at, IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.1s
LED Indicator :
1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicator
Interfaces :
24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port
Transmission media :
Recommended: CAT5/5e UTP or better
Fan quantity : 2
Level of protection :
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode :
Store-and-forward
Switch capacity :
56Gbps
Packet forwarding rate :
41.70Mpps
Buffer :
12Mb
MAC address table :
16K
Jombo frame :
10K
PoE power supply management :
Support
PoE budget :
Single port: AF: 15.4W, AT: 30W
Whole device: 370W
Input voltage :
100-240V AC 50/60Hz
Power consumption :
Full load: ＜432W
Empty load: ＜23W
Dimension :
440.0mmx284.0mmx44.0mm
Mounting :
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Energy Efficient :
Support
Environment :
Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certification :
FCC、CE、RoHS
