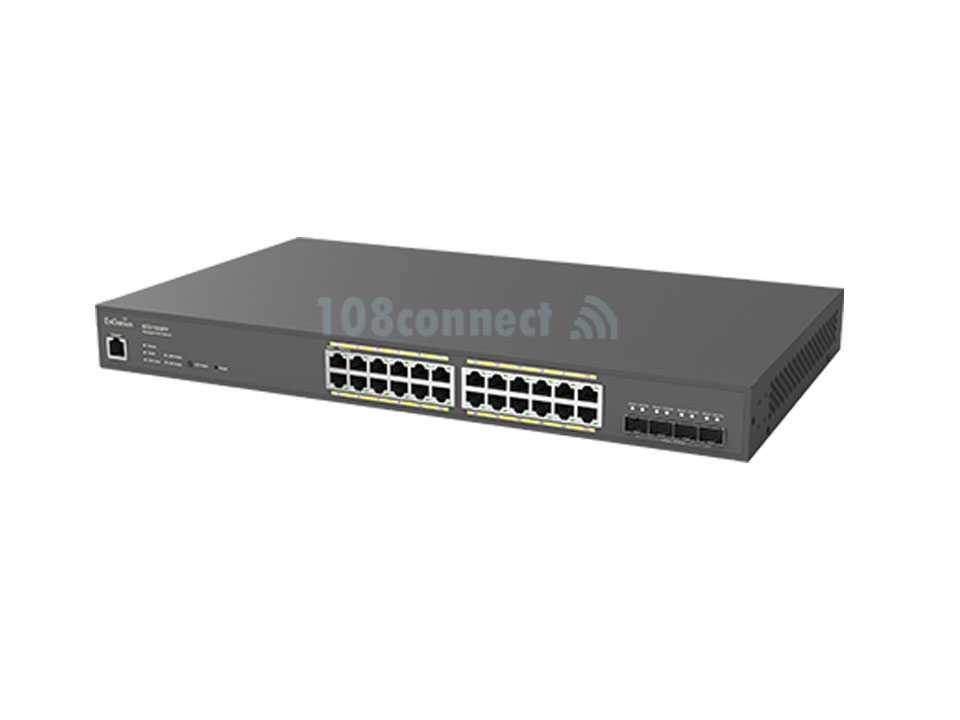

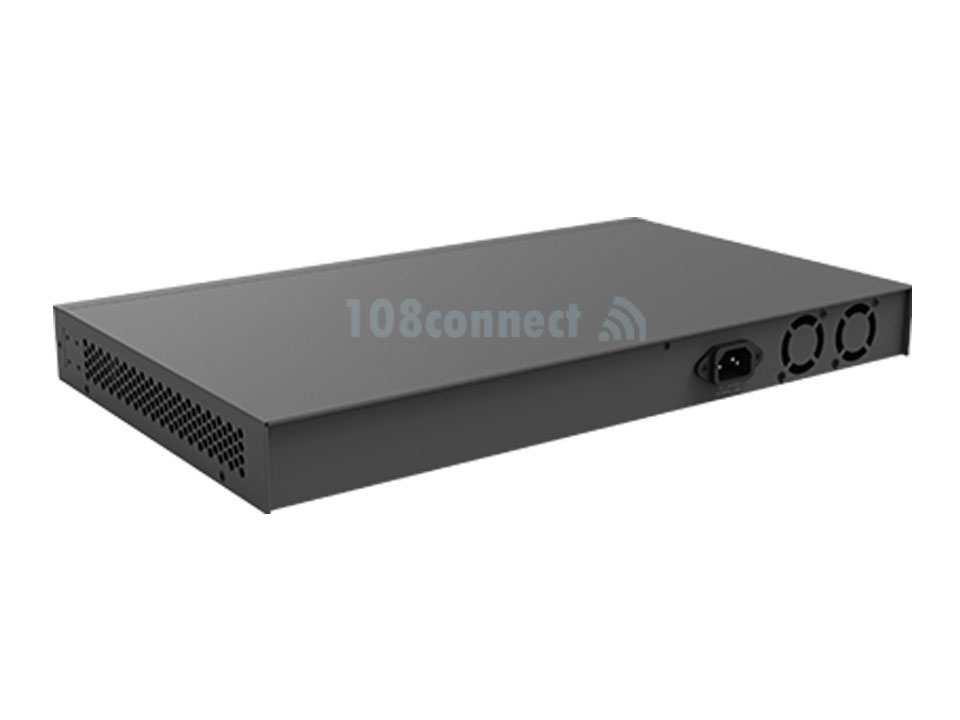

EnGenius ECS1528FP Coud Management Switch with 24 GE + 4 10GE SFP+, IEEE802.3at/af, 410w PoE power

 เพิ่มเมื่อ: 2019-09-02 17:38:59.0
 แก้ไขล่าสุด: 2023-11-09 12:22:17.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
ECS1528FP Coud Management Switch with 24 GE + 4 10GE SFP+, IEEE802.3at/af, 410w PoE power budget, internal power supply, 19inch 1U rack-mountable (สินค้ารับประกัน 3 ปี)
28900.00 บาท

 EnGenius ECS1528FP

ECS1528FP Coud Management Switch with 24 GE + 4 10GE SFP+, IEEE802.3at/af, 410w PoE power budget, internal power supply

19inch 1U rack-mountable

- Managed by EnGenius Cloud Platform

- (24) 10/100/1000 Mbps Gigabit Ethernet PoE Ports

- Desktop Model Supports Full-Featured Layer 2 Switching

- 802.3af/at Available On All Ports with a Total PoE Budget of 410W



Technical Specifications

Port Standards

802.3 10Base-T Ethernet

802.3u 100Base-TX Ethernet

802.3ab 10000Base-T Ethernet

802.3x Full-Duplex Flow Control

Network Ports

(24)10/100/1000 Mbps Ports

Performance

Switching Capacity: 128Gbps

Forwarding Mode: Store-and-Forward

Flash Memory: 128 MB

SDRAM:512MB

Packet Buffer Memory: 2M

Address Database Size: 16K MAC Addresses

PoE Capability

PoE Standard: Ports 1~8 Support IEEE 802.3af

PoE Capable Ports: All Gigabit Ethernet Ports

PoE Budget

410 W

Power Source

AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A

DC Output: 54V/1.67A

Physical Interface

LED Indicators

Reset Button

Desktop/Wall Mount

LED Indicators

Device:

Power LED

Fault LED

PoE Max LED

LAN Mode LED

PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port)

Link/Activity/Speed (per SFP slot)
