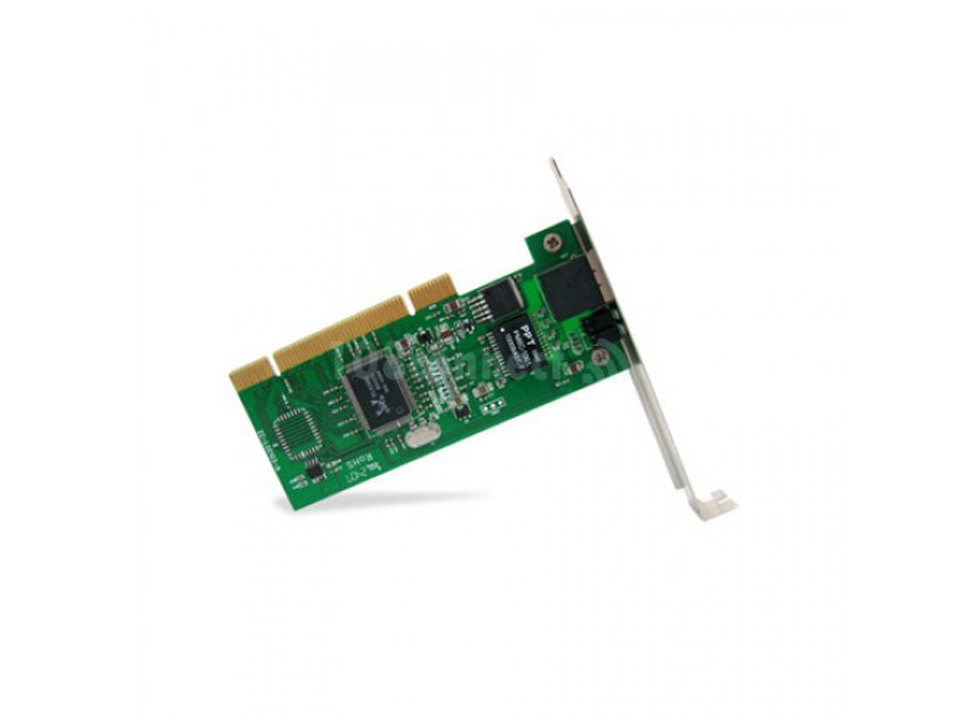

TOTOLINK P1000 Gigabit PCI Speed Ethernet Card
เพิ่มเมื่อ: 2019-12-03 16:22:59.0
แก้ไขล่าสุด: 2020-12-01 11:32:15.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comP1000 Gigabit PCI Speed Ethernet Card Up to 1000Mbps (สินค้ารับประกันตลอดอายุการใช้งาน)
TOTOLINK P1000
P1000 Gigabit PCI Speed Ethernet Card Up to 1000Mbps
- Well-known Taiwanese chip
- Up to 1000Mbps
- Supports remote wake-up
- Plus free short bezel
- Four groups of LED indicators
- Three years warranty, one year replacement
Product number
- P1000
- Chinese name
- Gigabit PCI Speed Ethernet Card
- English name
- Gigabit Auto-Negotiation Ethernet Adapter
Slot / mounting interface
- PCI
Chip label
- Realtek
Port (connector type)
- RJ-45
LED indicator
- 1 * 10M (Link / Activity / Speed)
- 1 * 100M (Link / Activity / Speed)
- 1 * 1000M (Link / Activity / Speed)
- 1 * Full Duplex
Product size (length x width x height)
- 122 x 121 x 50 mm
Communication protocol
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-T
- IEEE802.3ab 1000Base-T
- IEEE 802.3x flow control
- IEEE 802.3az
Access control (CSMA / CD)
- CSMA / CD
Network topology type
- Star topology
Wake on LAN
- support
Data transfer speed
- 10 / 100Mbps full-duplex and half-duplex mode
- 1000Mbps full-duplex mode
Filtering and forwarding rates
- 10Base-T: 14880pps / port
- 100Base-T: 148800pps / port
- 1000Base-T: 1488000pps / port
Environmental specifications
- Operating temperature: 0 ~ 40 ℃
- Storage temperature:-40 ~ 70 ℃
- Operating humidity: 10 ~ 90% non-condensing
- Storage humidity: 5 ~ 90% non-condensing
Package Contents
- P1000
- short bezel
- installation disc
Safety certification
- BSMI
Supported operating systems
- Windows 10 (32 / 64bits), Windows 8 (32 / 64bits), Windows 7 (32 / 64bits), Windows XP (32 / 64bits),Mac OS X 10.4
