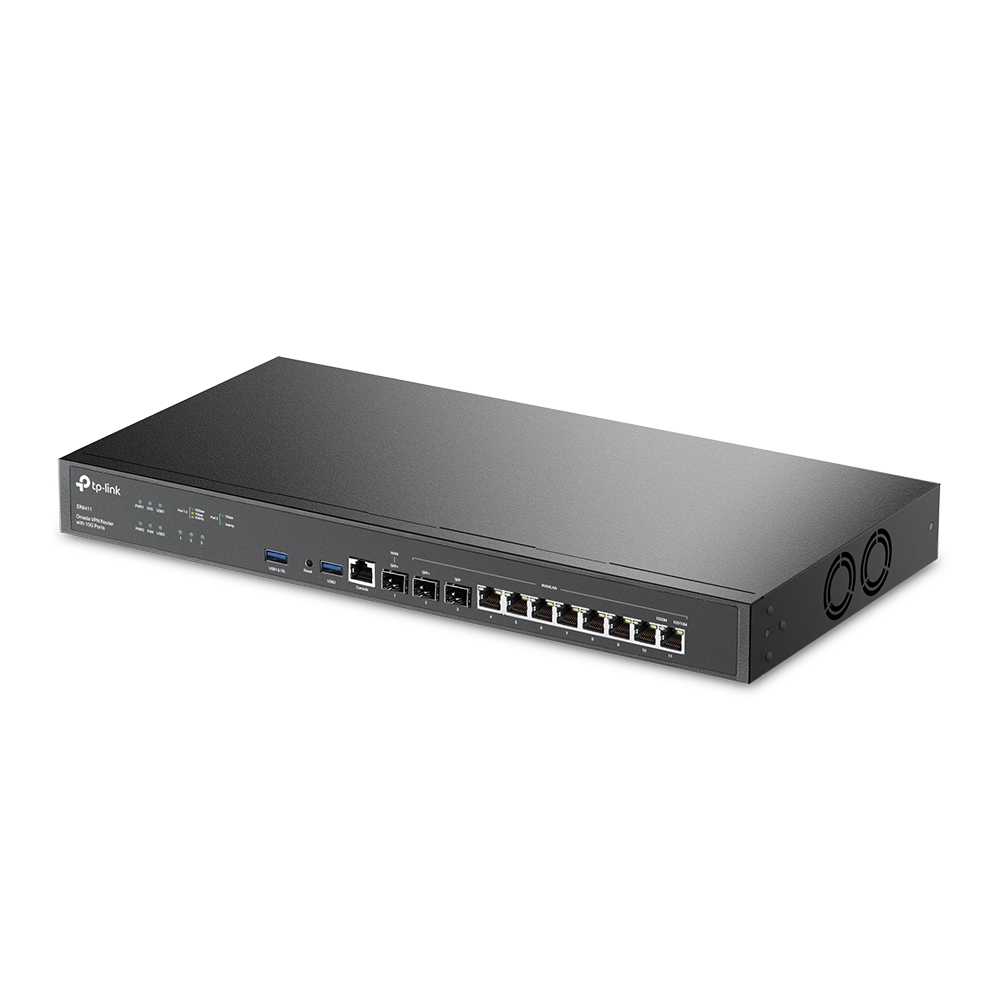

TP-LINK ER8411 Omada VPN Router with 10G Ports
เพิ่มเมื่อ: 2022-12-09 12:12:55.0
แก้ไขล่าสุด: 2023-11-07 17:10:01.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comER8411 Omada VPN Router with 10G Ports, 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN), 1× 1GE SFP WAN/LAN Ports, 8× 1GE RJ45 WAN/LAN Ports, 1× RJ45 Console Ports, 2× USB Ports (สินค้ารับประกัน Limited lifetime)
TP-LINK ER8411
ER8411 Omada VPN Router with 10G Ports, 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN), 1× 1GE SFP WAN/LAN Ports, 8× 1GE RJ45 WAN/LAN Ports, 1× RJ45 Console Ports, 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Integrated into Omada SDN : Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management : Cloud access and Omada app for ultra convenience and easy management.

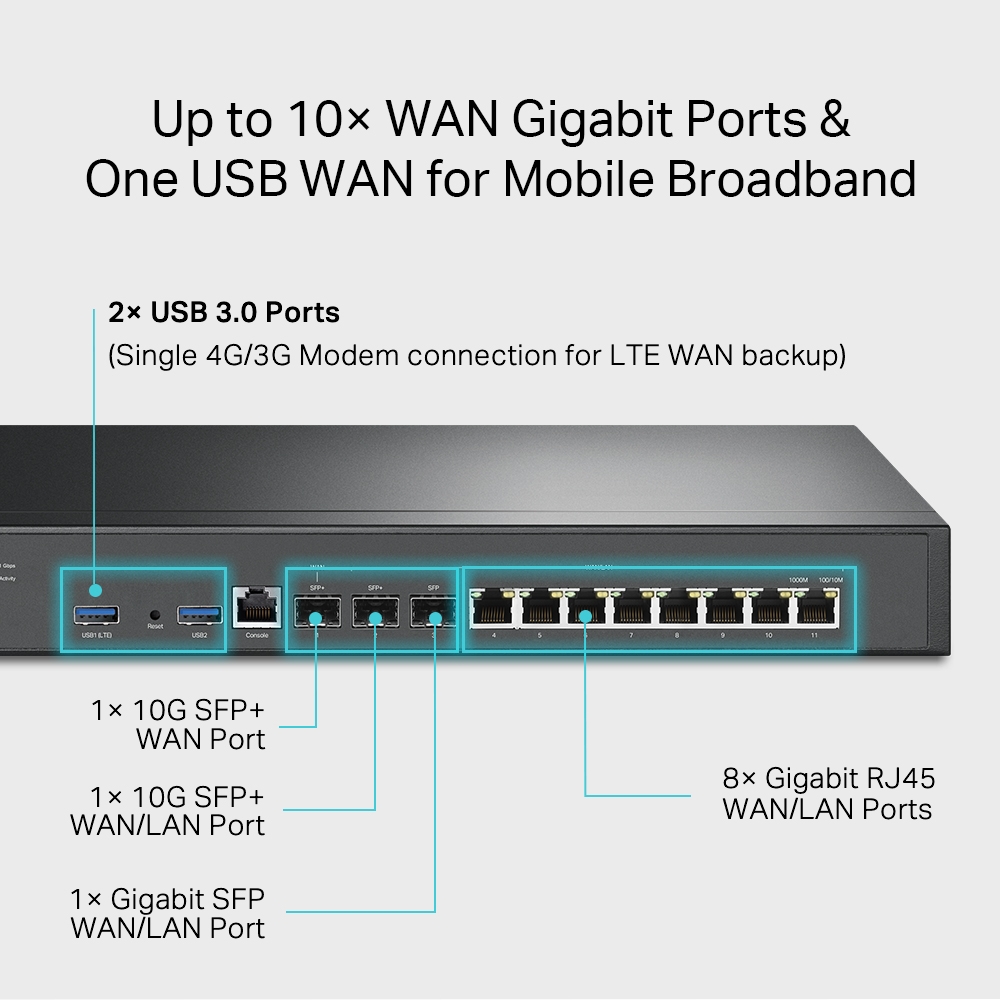

Two 10GE SFP+ Ports : 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
Up to 10 WAN Ports : Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN : Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
Abundant Security Features : Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.
Specifications
Interface :
• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Button : Reset Button
Power Supply : Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash : 4MB SPI NOR + 256 MB NAND
DRAM : 4 GB DDR4
LED : PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H ) : 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Max Power Consumption :
• 26.36 W (with USB 3.0 connected)
• 19.12 W (without USB 3.0 connected)
WAN Connection Type :
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone : Modify WAN/LAN MAC Address*4
DHCP :
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
IPv6 : WAN Connection
VLAN : 802.1Q VLAN
IPTV : IGMP v2/v3 Proxy
SSL VPN :
• SSL VPN Server
• SSL VPN Client
• 500 SSL VPN Tunnels
IPsec VPN :
• 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN :
• PPTP VPN Server
• PPTP VPN Client (32)*6
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
IPsec VPN Throughput :
• SHA1-AES256: 2140.45 Mbps
• SHA2-AES256: 2080.20 Mbps
OpenVPN : 1665.64 Mbps
L2TP VPN Throughput :
• Unencrypted: 5013.50 Mbps
• Encrypted: 2274.74 Mbps
SSL VPN Throughput : 1511.10 Mbps
Load Balance :
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*5, Failover)
• Online Detection
Package Contents :
• Omada 10G Multi-WAN Security Gateway ER8411
• Power Cord
• Rack-Mount Kit
• Quick Installation Guide
