| IP-COM iUAP-AC-M AC1200 802.11AC Indoor/Outdoor Wi-Fi Access Point

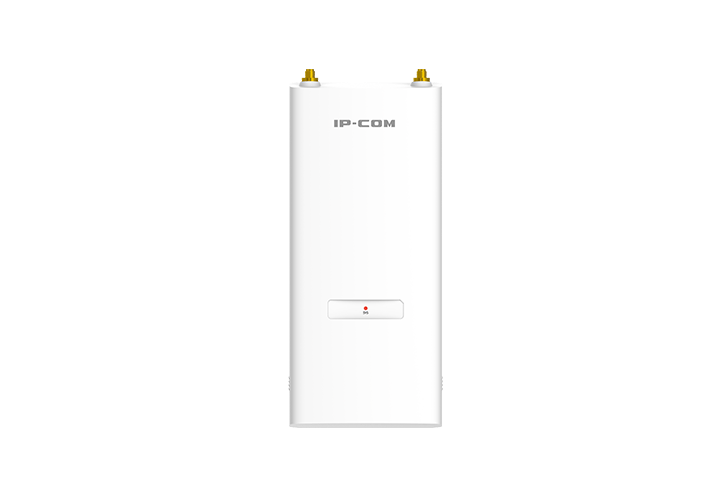

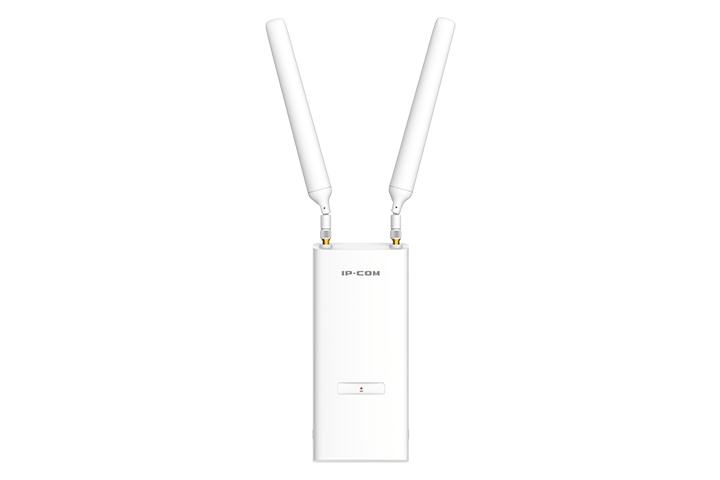

IP-COM iUAP-AC-M AC1200 802.11AC Indoor/Outdoor Wi-Fi Access Point
เพิ่มเมื่อ: 2023-12-24 19:35:08.0
แก้ไขล่าสุด: 2025-01-31 12:22:00.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comAccess Point (แอคเซสพอยซ์) IP-COM iUAP-AC-M AC1200 802.11AC Indoor/Outdoor Wi-Fi Access Point
IP-COM iUAP-AC-M
Access Point (แอคเซสพอยซ์) IP-COM iUAP-AC-M 802.11AC Indoor/Outdoor Wi-Fi Access Point
- Durable IP65 enclosure for outdoor Wi-Fi applications
- MU-MIMO technology for high throughput
- Concurrent dual-band data rate up to 1167 Mbps (2.4 GHz: 300 Mbps 5 GHz: 867 Mbps)
- Detachable antennas and 2 RP-SMA connectors
- Coverage radius of 200 meters
Product Information
Model : iUAP-AC-M
Mounting : Pole Mounting and Wall Mounting
Dimensions : 194.7*83*42.1 mm
Hardware Specifications
Frequency band : 2.4 GHz, 5 GHz
Wireless standards : IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
2.4 GHz data rate : 1 - 300 Mbps
5 GHz data rate : 6 - 867 Mbps
Ethernet port : 1*10/100/1000 Base-TX port
Button : 1*Reset
LED indicator : 1*SYS
Waterproof level : IP65
Lightning protection : 6000 V
Max. power consumption : 11.5 W (Full-load)
Power supply standard : IEEE 802.3af/at & 24V, 0.5A Passive PoE
Antenna : 2*5dBi，RP-SMA Connector
2.4 GHz Max. output power : 26 +/- 1.5 dBm
5 GHz Max. output power : 26 +/-1.5 dBm
802.11b RX sensitivity : -93 dBm
2.4 GHz 802.11n (MCS7) RX sensitivity : -72 dBm
5 GHz 802.11a RX sensitivity : -93 dBm
5 GHz 802.11n (MCS7) RX sensitivity :-74 dBm
Software Specifications
Operating modes : AP, Client+AP
Hide SSID : Supported
Max. No. of SSID :
2.4 GHz: 8
5 GHz: 4
Max. connected clients :
2.4 GHz: 128
5 GHz: 256
WEP : Supported
WPA-PSK : AES/TKIP
WPA2-PSK : AES/TKIP
WPA : Supported
WPA2 : Supported
Access control : MAC address-based
Adjustable power transmit : Supported
Frequency analysis : Supported
AP isolation : Supported
Connected client control : Supported
RSSI threshold : Supported
WMM : Supported
VLAN tagging for SSID : Supported
Transmission power : Adjustable by 1 dBm
LED indicator control : Supported
Diagnostics tool : Ping, Traceroute
Scheduled reboot : Supported
Reboot at specified interval : Supported
Management : Web UI
System logs : Supported
Firmware upgrade : Local and AC upgrade
Reboot : Local and AC reboot
Reset : Local and AC reset
Backup configuration : Supported
Restore configuration : Supported
Operating Environment
Default login IP address : 192.168.0.254
Default user name : admin
Default password : admin
Operating temperature : -30℃ - 50℃
Operating humidity : (10% - 90%) RH, non-condensing
Storage temperature : -30℃ - 70℃
Storage humidity : (10% - 90%) RH, non-condensing
