| Wi-Fi 7 Router (IEEE 802.11be)
| TP-LINK EAP773 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
TP-LINK EAP773 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
เพิ่มเมื่อ: 2023-12-04 13:01:58.0
แก้ไขล่าสุด: 2023-12-05 14:09:24.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comแอคเซสพอยซ์ไวไฟ 7 EAP773 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 1× 10G Ethernet Port, 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
TP-LINK EAP773
EAP773 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 1× 10G Ethernet Port
- BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
- 1× 10G Port: Unlock the full potential of Wi-Fi 7.
- Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
- 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
- Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
- Advanced Functions：Supports centralized management, mesh, and AI roaming.
Wireless Standards :
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency :
6 GHz, 5 GHz, and 2.4 GHz
Signal Rate :
574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)
Wireless Client Capacity :
2 GHz: 128**
5 GHz: 128**
6 GHz: 128**
Interface :
1× 10G Ethernet Port
Button :
Reset
Power Supply :
802.3bt PoE or 12V/2.5A DC
Power Consumption :
Support Smart Power Comsuption Management
• 25.94 W (802.3bt, full functionality);
• 22.57 W (12/2.5A, full functionality);
• 23.4 W (802.3at decrease 6GHz Power);
• 10.1 W (802.3af, radio off, only main chip and LAN working)
Dimensions ( W x D x H ) :

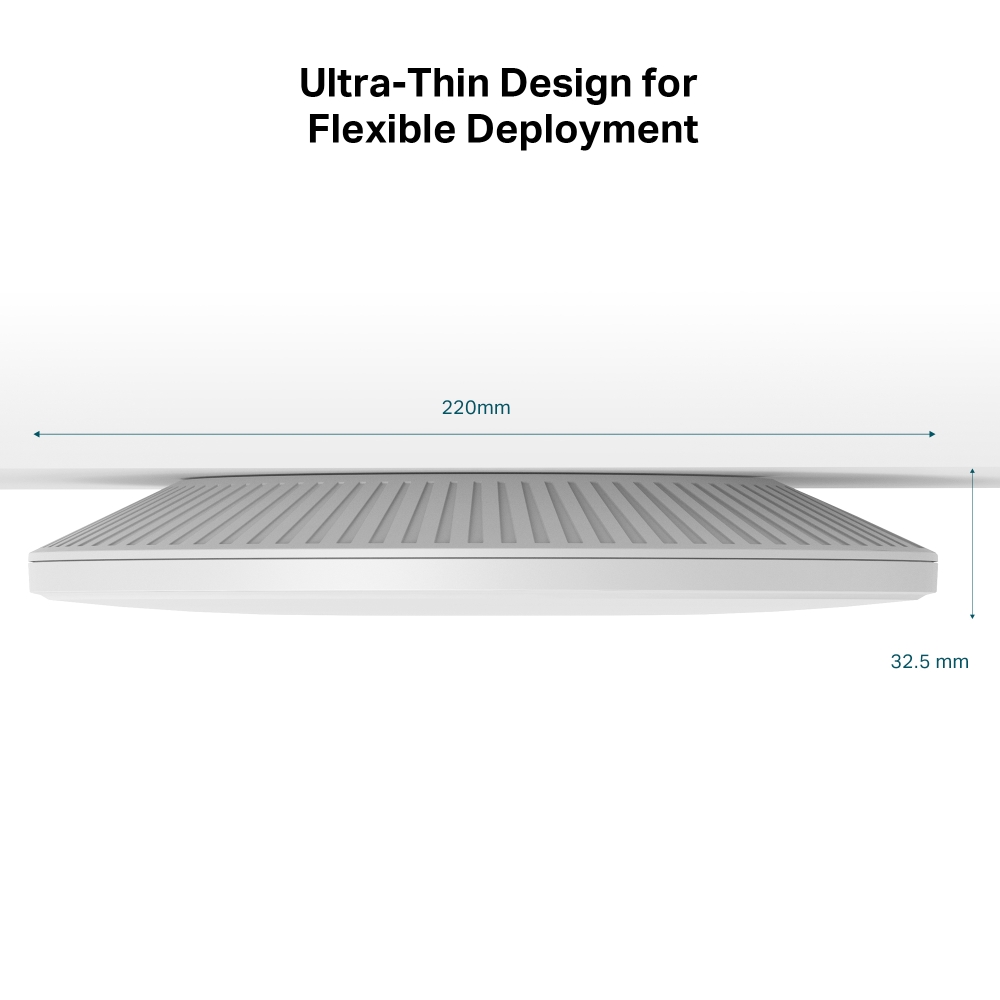

8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type :
• 2.4 GHz: 2× 3.0 dBi
• 5 GHz: 2× 3.0 dBi
• 6 GHz: 2× 3.0 dBi
Bluetooth :
1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

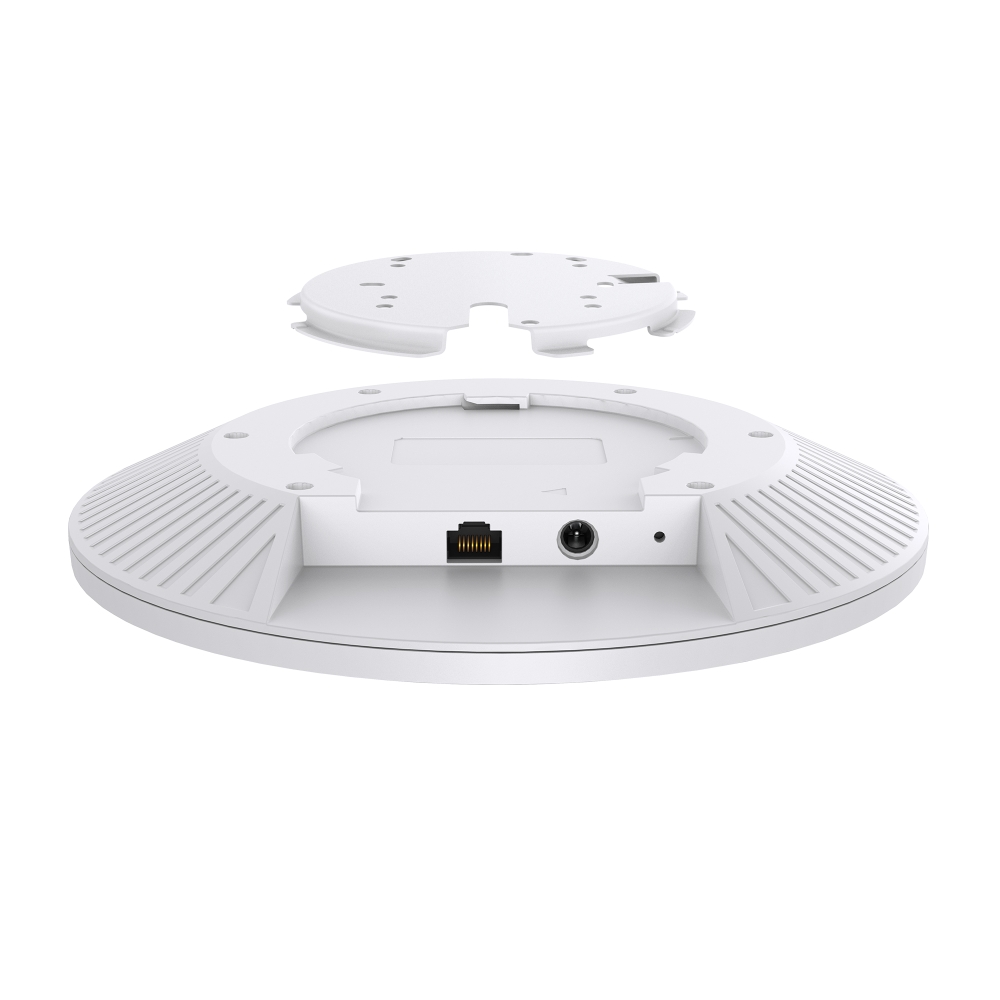

Mounting :
Ceiling / Wall Mounting (Kits Included)
Wireless Security :
• Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power :
< 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)
Package Contents
• EAP773
• Installation Guide
• Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
