Mikrotik RB2011UiAS-IN RouterBOARD 2011UiAS
เพิ่มเมื่อ: 2023-11-17 18:42:10.0
แก้ไขล่าสุด: 2023-11-24 13:51:29.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comไมโครติค RB2011UiAS-IN RouterBOARD 2011UiAS with Atheros 74K MIPS CPU, 128MB RAM, 1xSFP port, 5xLAN, 5xGbit LAN, RouterOS L5, desktop case, PSU, LCD panel (1 Years)

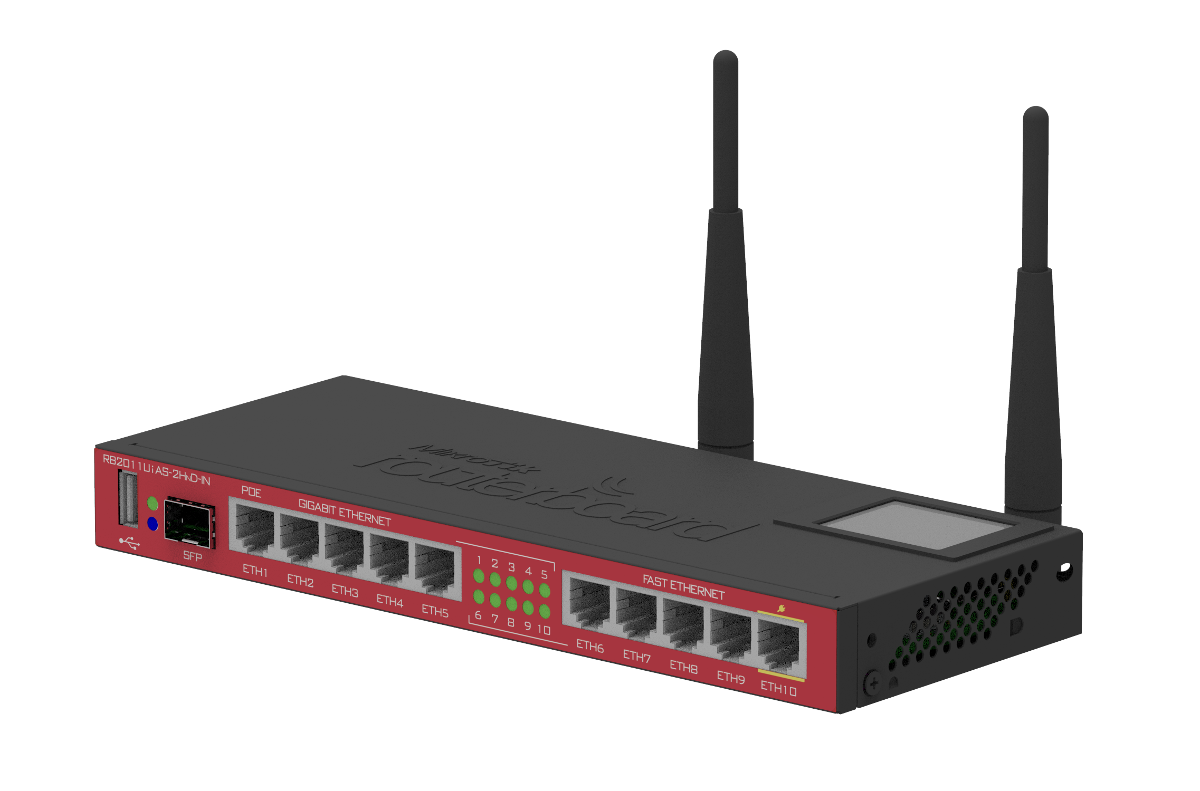

Mikrotik RB2011UiAS-IN
RB2011UiAS-IN RouterBOARD 2011UiAS with Atheros 74K MIPS CPU, 128MB RAM, 1xSFP port, 5xLAN, 5xGbit LAN, RouterOS L5, desktop case, PSU, LCD panel (1 Years)
Specifications
- Details
- Product code RB2011UiAS-2HnD-IN
- Architecture MIPSBE
- CPU AR9344
- CPU core count 1
- CPU nominal frequency 600 MHz
- Switch chip model AR8327
- Dimensions 214mm x 86mm for PCB
- RouterOS license 5
- Operating System RouterOS
- Size of RAM 128 MB
- Storage size 128 MB
- Storage type NAND
- MTBF Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 60°C
Wireless capabilities
- Details
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 4
- Wireless 2.4 GHz chip model AR9344
- Wireless 2.4 GHz generation Wi-Fi 4
Ethernet
Details
- 10/100 Ethernet ports 5
- 10/100/1000 Ethernet ports 5
Fiber
Details
- SFP DDMI Yes
- SFP ports 1
Peripherals
Details
- Serial console port RJ45
- Number of USB ports 1
- USB Power Reset Yes
- USB slot type USB type A
- Max USB current (A) 1
Powering
Details
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 8-30 V
- Max power consumption 11 W
- Cooling type Passive
- PoE in Passive PoE
- PoE in input Voltage 8-30 V
PoE-out
- Details
- PoE-out ports Ether10
- PoE out Passive PoE
- Max out per port output (input 18-30 V) 510 mA
- Max total out (A) 510 mA
Certification & Approvals
- Details
- Certification CE, FCC, IC, EAC, ROHS
- IP IP20
Other
- Details
- PCB temperature monitor Yes
- Voltage Monitor Yes
- Beeper Yes
Wireless specifications
- 2.4 GHz Transmit (dBm) Receive Sensitivity
- 1MBit/s 30 -96
- 11MBit/s 28 -80
- 6MBit/s 30 -96
- 54MBit/s 27 -80
- MCS0 30 -92
- MCS7 25 -73
