IP-COM M20-8G-POE 9 Port Cloud Managed PoE Router
เพิ่มเมื่อ: 2024-10-26 12:44:26.0
แก้ไขล่าสุด: 2024-10-26 13:10:27.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comCloud Managed Router IP-COM M20-8G-POE 9 Port Cloud Managed PoE Router, 4× WAN Ethernet Ports, 9 Port Gigabit (สินค้ารับประกัน 3 ปี)

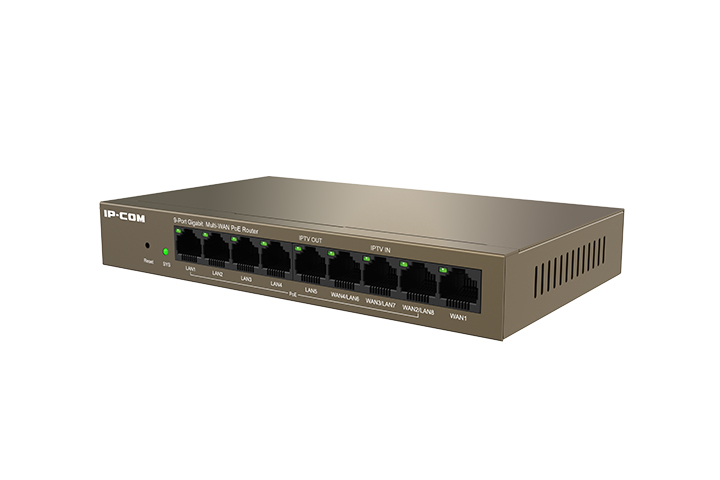

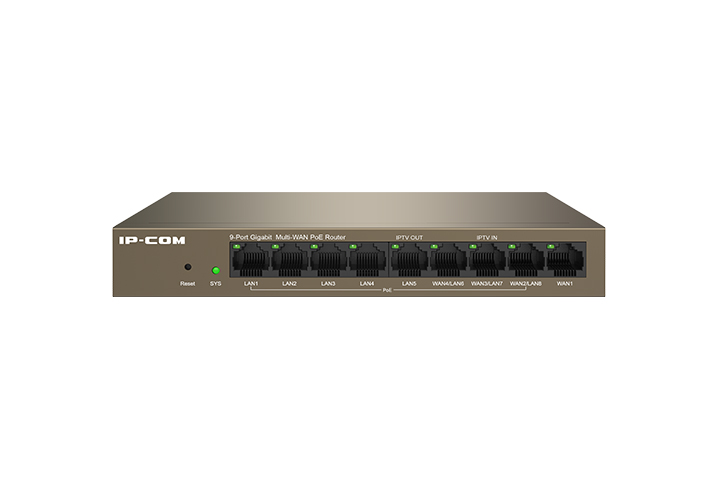

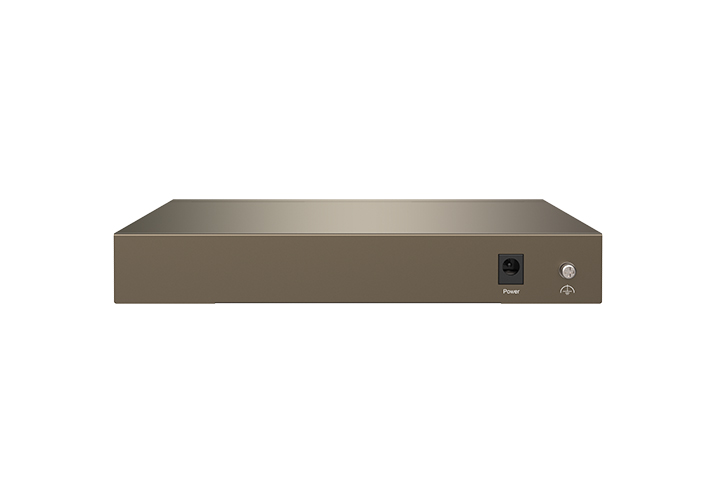

IP-COM M20-8G-POE
Cloud Managed Router IP-COM M20-8G-POE 9 Port Cloud Managed PoE Router, 4× WAN Ethernet Ports, 9 Port Gigabit
- Integrates router, PoE switch, and controller altogether
- Dual-Core CPU provides 1Gbps Forwarding performance
- Up to 4× WAN Ethernet Ports，Support load balancing
- 8× 802.3at/af-compliant PoE+ ports yield a total power supply of 95W*
- Supports IPsec VPN, and L2TP/PPTP VPN connections
Basic Information : M20-8G-PoE
Installation : Desktop
Dimensions (L*W*H) : 177.5*104*26
Application Scenario : Enterprise Office
Operation mode : Router Mode, AC Mode
Max. Client Capacity : 150
Recommended Client Capacity : 100
Recommended broadband : 1000Mbps
Max. New Sessions : 4000
Max. Concurrent Sessions : 49000
NAT (Static IP) : 940Mbps/930Mbps
NAT(DHCP) : 941Mbps/932Mbps
NAT(PPPoE) : 914Mbps/924Mbps
AP Management :
Router mode: 128
AC mode: 256
VLAN : 4
CPU : Dual Core，1.0GHz
RAM : 128 MB
FLASH : 16 MB
Ports : 9*GE (Max. 4 WAN, Max. 8 LAN)
PoE outport : 802.3af/at on LAN1-8
PoE Budget : 95W
Button : Reset Button
Max Power Consumption : 102W with PoE Max ;7W without PoE
Standards and Protocols : IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, DDNS
Power Supply : 51VDC/2A Adapter
AP Management : 128APs
DHCP Server : DHCP Server(User/AP),DHCP Reservation
Wireless Policy : AP Group,SSID Policy,RF Policy,Vlan Policy,maintenance policy,Alarm Policy,Deployment Policy
Fast roaming : 802.11k,v,r
IPTV : IPTV Policy
ACL : IP/MAC/URL/PORT
Bandwidth Control : Based on single user, user group, smart bandwidth control
VPN : IPSec, PPTP, L2TP
Virtual Server : DMZ, DDNS, DNS Hijacking,IP Hijacking,UPNP,Port Mirroring,Port Mapping,DNS Cache
IPV6 : Support
WAN Load Balancing : Intelligent Load Balancing,Customize
Routing : Static Routing,Policy Routing
Security : IP-MAC binding, Block Ping from WAN,DDoS Attack Defense,ARP Attack Defense,Binary Association
System Tools : ntp,Scheduled reboot, Diagnosis
system log : system log,Operating log,Running log
System Account : Administrator,Visitor,Login IP Address Limit
Upgrade : Local,Online
Maintenance : Restore,Backup,Remote WEB Management
Management : http/https,Profi Cloud,Profi APP
