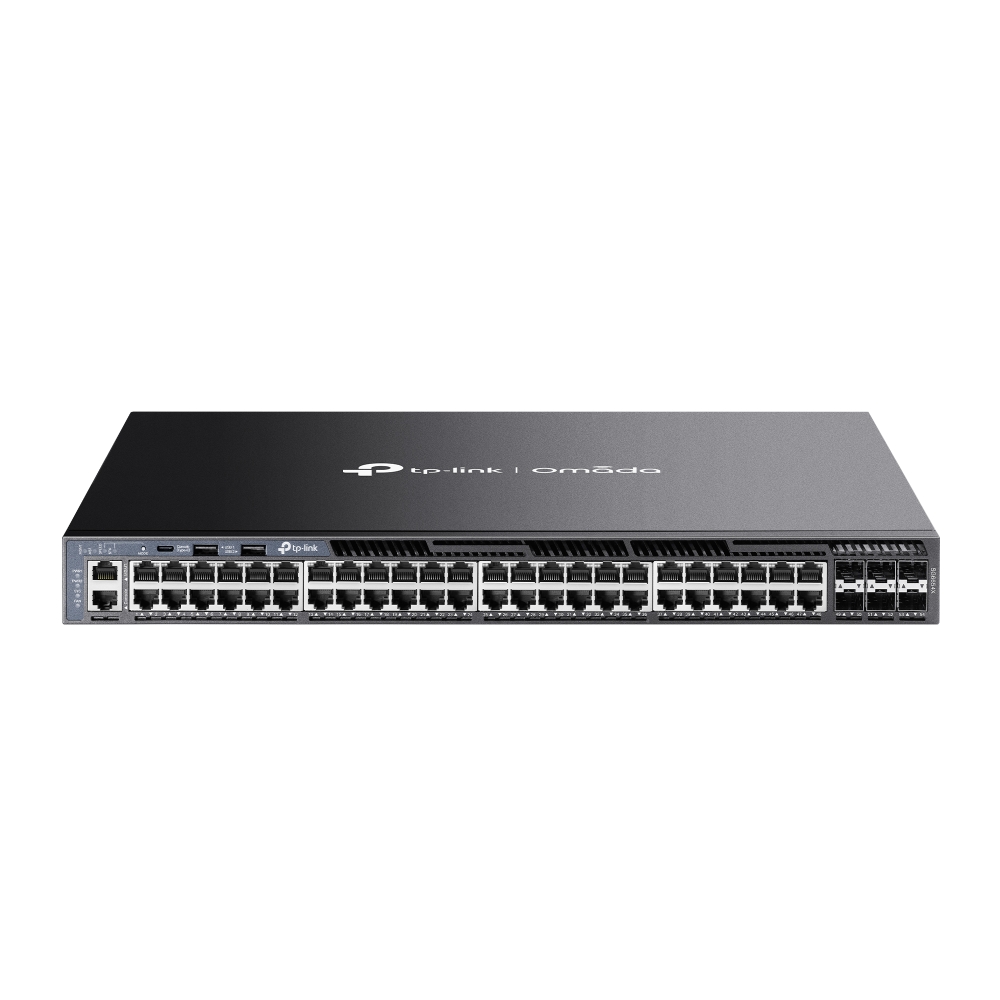

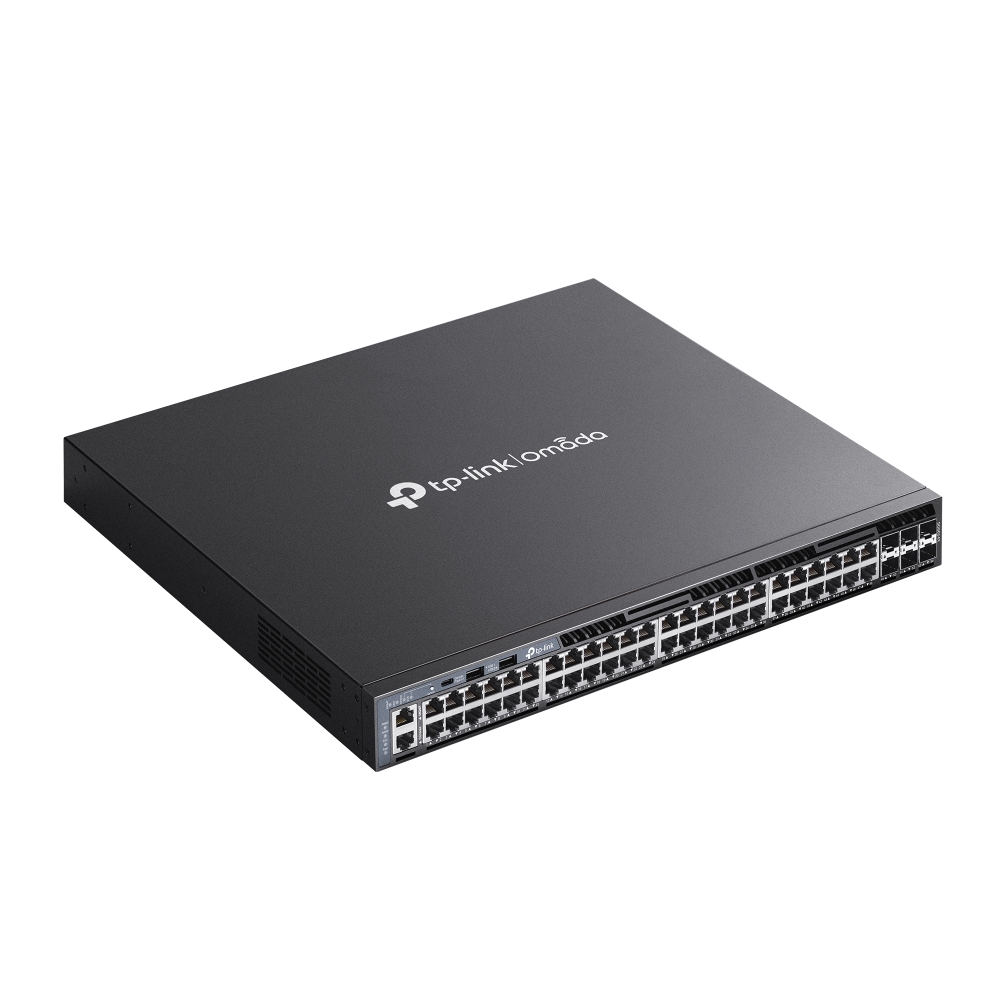

TP-LINK SG6654X
SG6654X Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
- 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots
- 216 Gbps switching capacity per unit
- Physical Stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Interface :
• 48× 10/100/1000 Mbps RJ45 Ports
• 6× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
Fan Quantity : Four Internal Fixed Fans
Power Supply : Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H ) : 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting : Rackmountable
Max Power Consumption : 39.8 W (220 V/50 Hz)
Max Heat Dissipation : 135.81 BTU/hr (220 V/50 Hz)
Switching Capacity : 216 Gbps per Unit
Stacking :
• Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Packet Forwarding Rate : 160.7 Mpps
MAC Address Table : 32 K
Packet Buffer Memory : 3 MB
Jumbo Frame : 9 KB

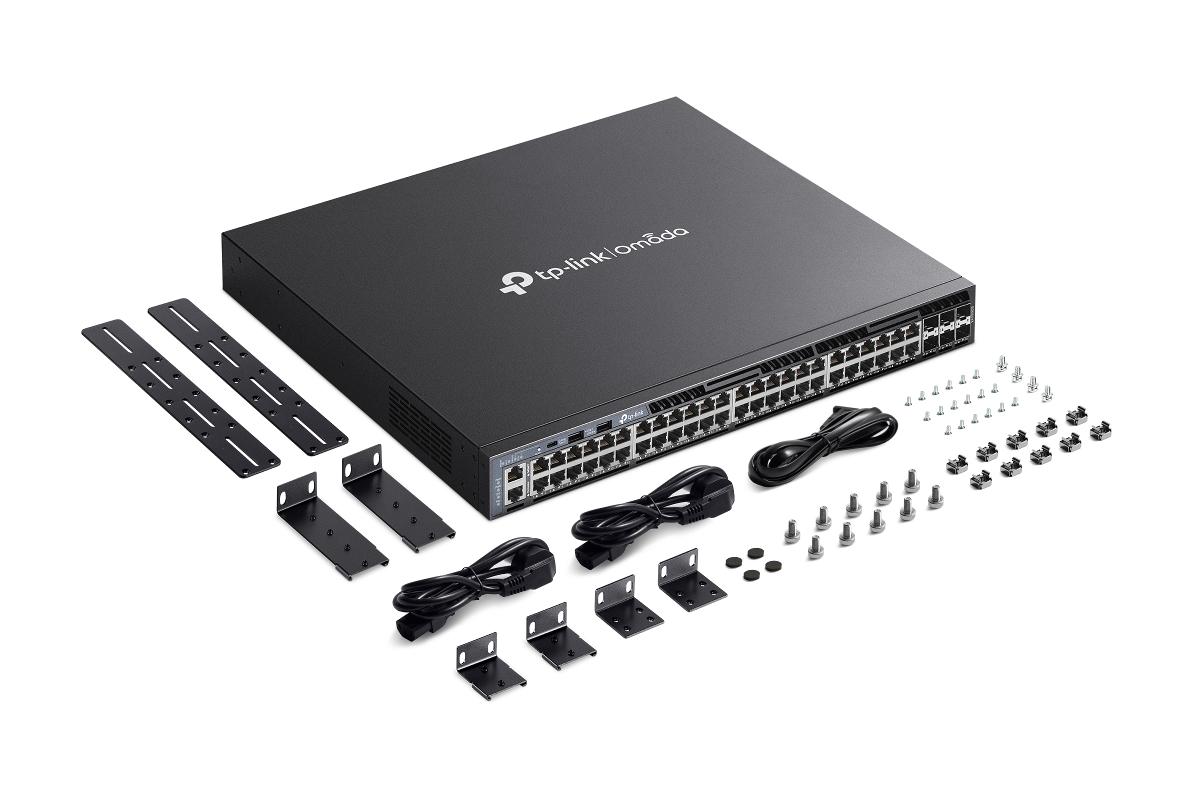

Package Contents :
• SG6654X Switch
• 2× Power Cords
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
