| TP-LINK SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots

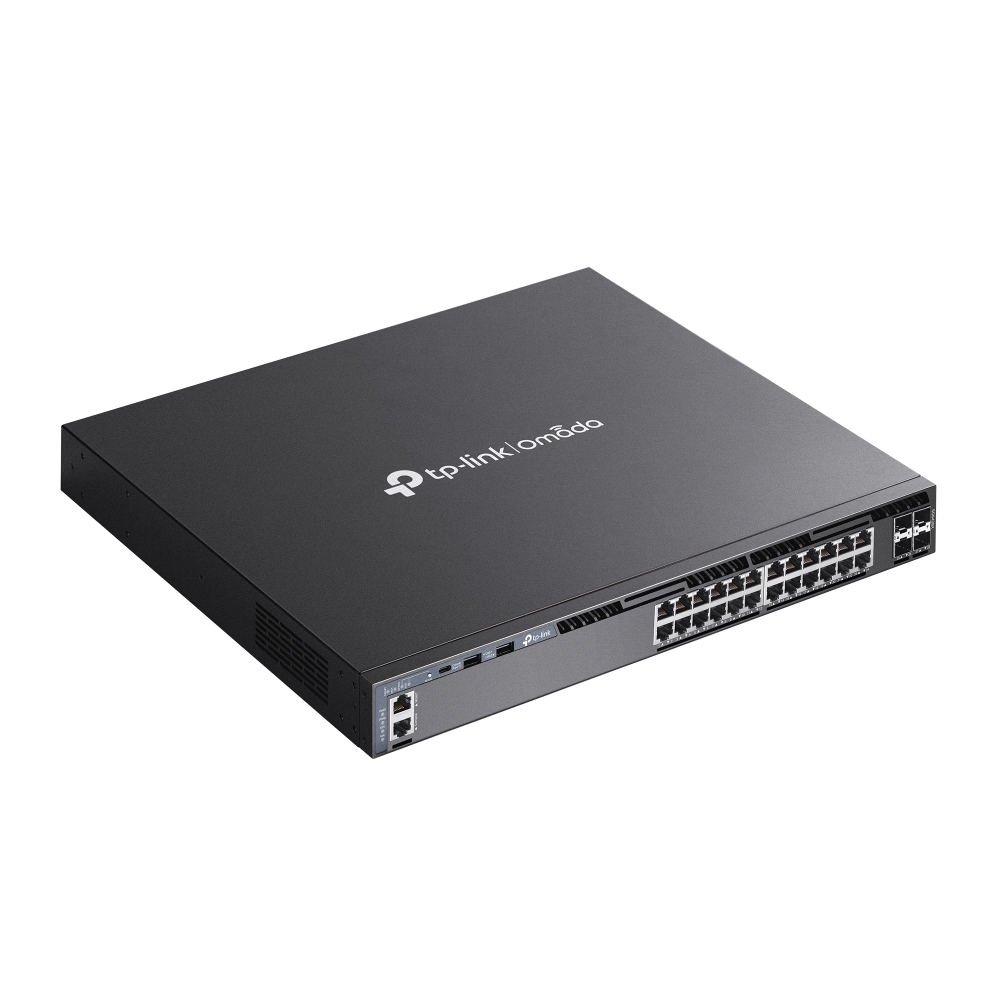

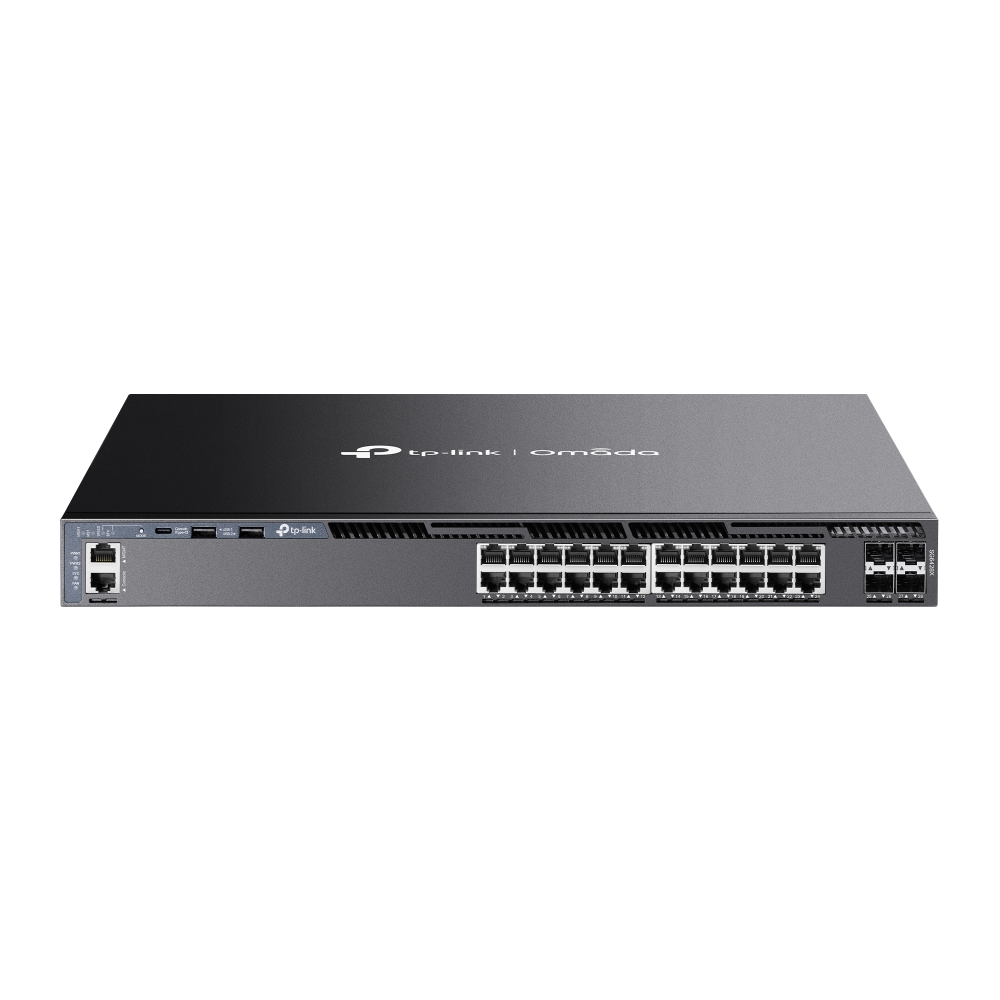

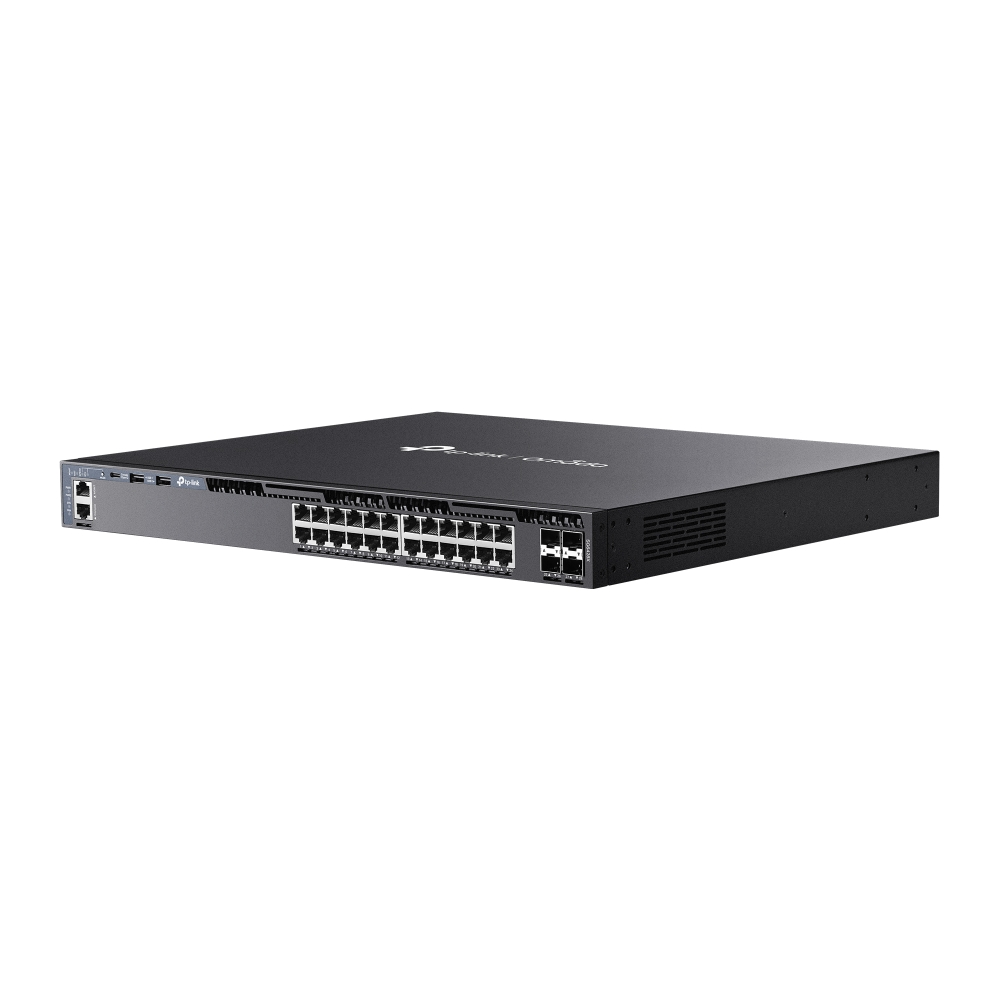

TP-LINK SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots
เพิ่มเมื่อ: 2024-01-08 11:33:31.0
แก้ไขล่าสุด: 2024-10-04 17:28:43.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comManaged Switch SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots (Limited Lifetime Warranty)
TP-LINK SG6428X
SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Interface :
• 24× 10/100/1000 Mbps RJ45 Ports
• 4× 10G SFP+ Slots
• 2× USB 2.0 Ports
• 1× RJ45 Console Port
• 1× USB Type-C Console Port
• 1× RJ45 Management Port
Switching Capacity :
128 Gbps per Unit
Stacking :
• Stacking Number: 4
• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
• Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)
Packet Forwarding Rate :
95.2 Mpps
MAC Address Table :
32 K
Packet Buffer Memory :
3 MB
Jumbo Frame :
9 KB
Fan Quantity :
Four Internal Fixed Fans
Power Supply :
Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Dimensions ( W x D x H ) :
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Mounting :
Rackmountable
Max Power Consumption :
28.4 W (220 V/50 Hz)
Max Heat Dissipation :
96.91 BTU/hr (220 V/50 Hz)
Omada App :
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management :
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access :
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning :
Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features :
• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• EEE
System Requirements :
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment :
• Operating Temperature: 0–45 ℃ (32–113 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
Package Contents :
• SG6428X Switch
• 2× Power Cords
• RJ45 Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
