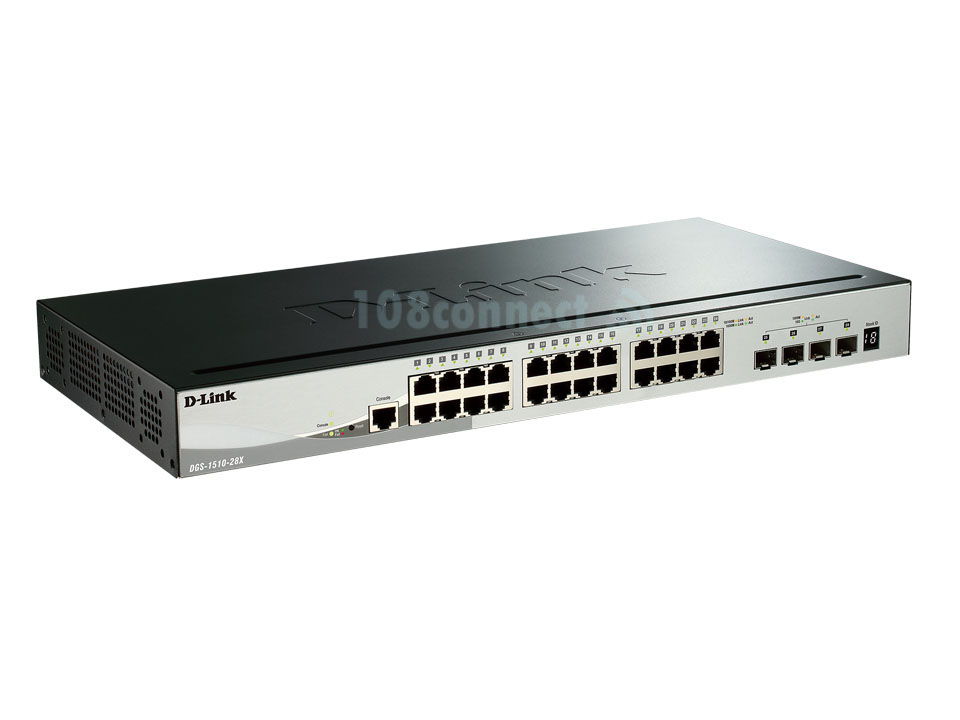

D-LINK DGS-1510-28X
DGS-1510-28X 24-port UTP 10/100/1000Mbps, 4-port 10G SFP+ (H/W : A1, Rackmountable)28-Port Layer 3 Lite Smart Managed Gigabit Switch with 4 10G uplink
- 24 Ports 10/100/1000 Base-T PoE + 4 x 10G SFP+ Slots
- Physical Stacking via two 10 Gigabit SFP+ Ports with stacking up to six device
- Virtual stacking of up to 32 units via D-link’s Single IP Management (SIM)
- Support G.8032 ERPS to achieve high reliability and network stability
- Auto Surveillance (ASV), Auto Voice VLAN for VoIP and Video Surveillance deployments.
- 802.1X port based authentication, for authentication through external RADIUS servers
- IEEE 802.3az Energy Efficient Ethernet with D-Link Green 3.0 power-saving features
- Loopback Detection automatically disables port or VLAN when a loop is detected
- Support Layer 2 Features – IGMP & MLD Snooping, 802.3x Flow control and LLDP
Port Standards & Functions
- IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T
Gigabit Ethernet, 802.3ae 10 GbE, IEEE 802.3x Flow Control for Full-Duplex Mode, Auto-negotiation
Number of Ports
- 16 10/100/1000 Mbps
- 2 Gigabit SFP
- 2 10G SFP+ 24 10/100/1000 Mbps
- 2 Gigabit SFP
- 2 10G SFP+ 48 10/100/1000 Mbps
- 2 Gigabit SFP
- 2 10G SFP+
Network Cables
- UTP Cat. 5, Cat. 5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex
- Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange
- Auto or configurable MDI/MDIX
Switching Capacity
- 76 Gbps
- 92 Gbps
- 140 Gbps
Transmission Method
- Store-and-forward
- MAC Address Table
- 16,000 entries per device
MAC Address Update
- Up to 512 static MAC entries
- Enable/disable auto-learning of MAC addresses
Maximum 64 bytes PacketForwarding Rate
- 56.54 Mpps
- 68.45 Mpps
- 104.16 Mpps
