| NETGEAR XS708T 8-port 10-GigabitSmart Managed Switch 2 x Shared (combo) copper/SFP+ 1x USB port

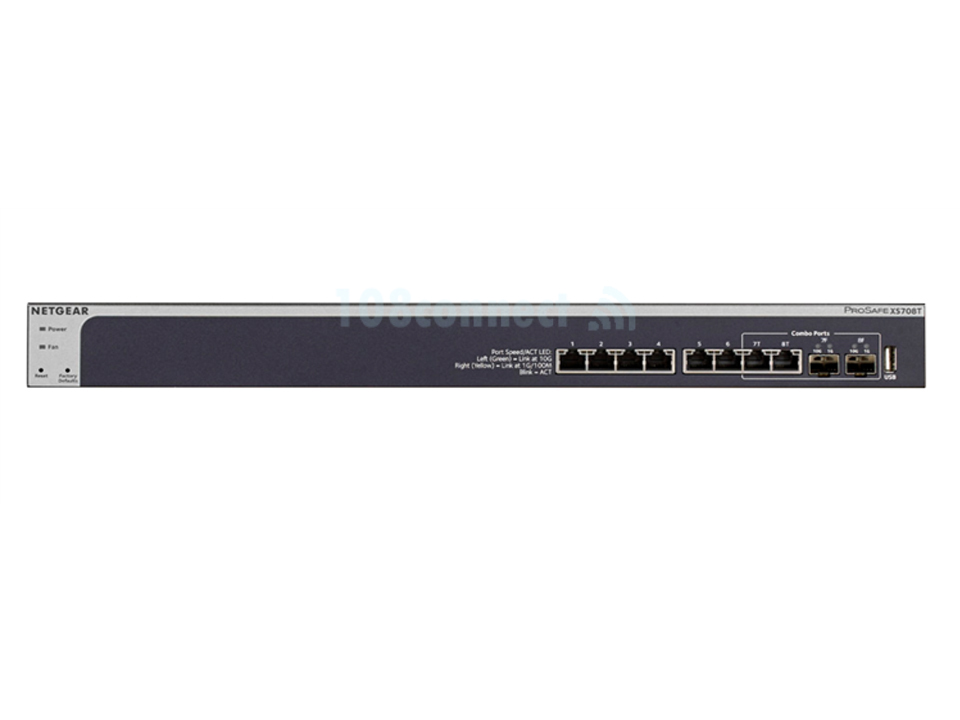

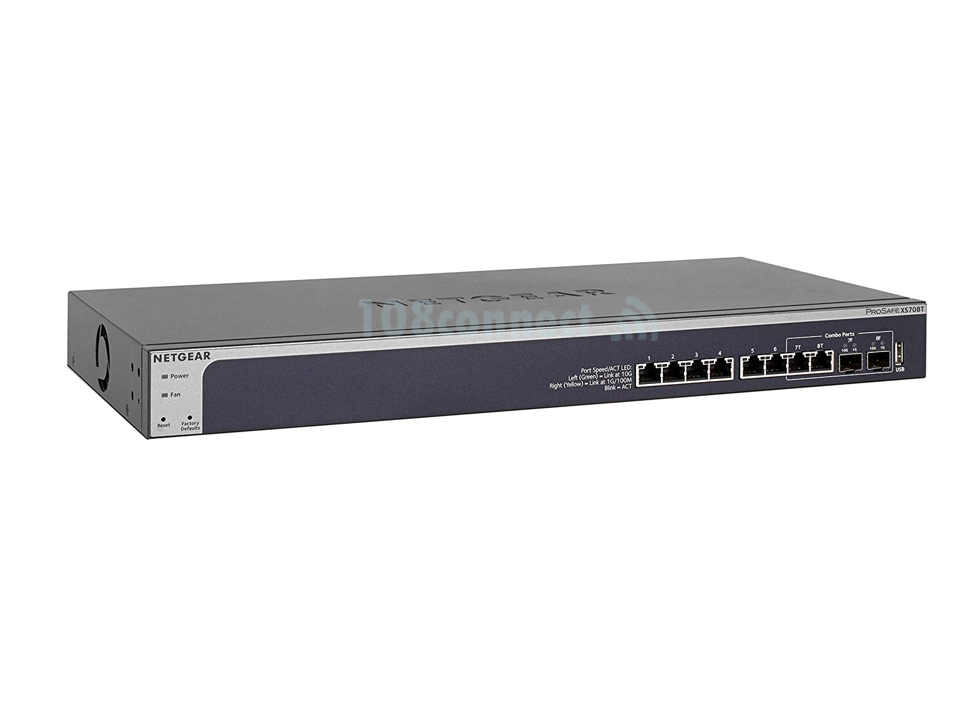

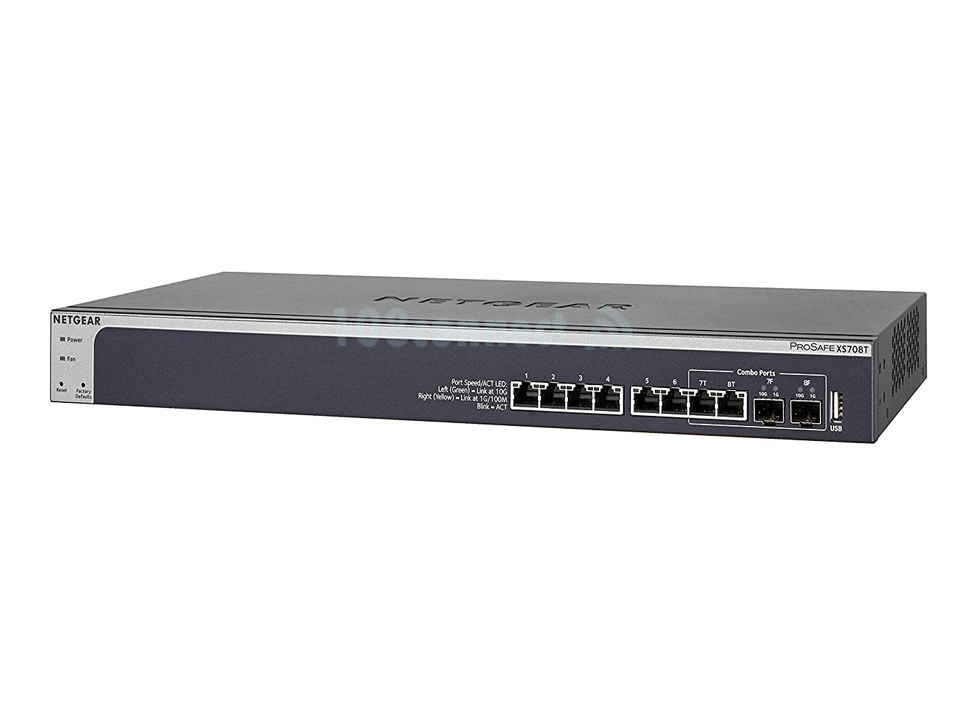

NETGEAR XS708T 8-port 10-GigabitSmart Managed Switch 2 x Shared (combo) copper/SFP+ 1x USB port
เพิ่มเมื่อ: 2019-08-30 16:53:46.0
แก้ไขล่าสุด: 2020-03-11 15:35:13.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comXS708T 8-port 10-GigabitSmart Managed Switch 2 x Shared (combo) copper/SFP+ 1x USB port (สินค้ารับประกัน 2 ปี)
NETGEAR XS708T
XS708T 8-port 10-GigabitSmart Managed Switch 2 x Shared (combo) copper/SFP+ 1x USB port
Comprehensive L2+/Layer 3 Lite Features
The 10G Smart Managed Switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility. Some of the main features include:
- Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control)
VLAN and 802.1x Guest VLAN
- Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues
- IPv4 and IPv6 static routing
- Private VLAN
- Dynamic VLAN assignment
- IGMP and MLD snooping
- Advanced Security
- IPv6 for management, QoS and ACL
10-Gigabit Transition with BASE-T
- 10GBASE-T, like other BASE-T technologies, uses the standard RJ-45 Ethernet jack
- It is backward compatible, auto-negotiating between higher and lower speeds – thereby
not forcing an all-at-once network equipment upgrade
- Cat 5 / Cat 5e are supported for Gigabit speeds up to 100 meters
- Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters
- Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T connections
10-Gigabit copper ports
- 8 10GBASE-T copper
SFP port
- 2 SFP+ 1000/10GBASE-X fiber ports (shared)
Buffer size
- 2 MB
MAC address database size
- 16K
VLAN (# supported)
- 512
Number of LAGs & number of members
- 8 LAGS with max 8 members in each LAG (LACP)
Number of priority queues
- 8
Access Control Lists (ACLs)
- 100 shared for MAC, IP and IPv6 ACLs
IPv4 Static routes
- 32
IPV6 Static routes
- 32
Power supply
- Internal 100-240VAC 50-60Hz
Max power consumption (Watts)
- 49.5 W
Fan
- 1
Acoustic Noise Level @25C (dBA)
- 27.4 dBA
Operating Temperature
- -5° to 55°C (23° to 131°F)
MTBF (@ 25° C)
- 276,197 hours
Electromagnetic compliance (A or B)
- Class A
Dimensions (W x D x H)
- 440 x 204 x 43 mm (17.3 x 8 x 1.7 in)
Weight
- 2.61 kg (5.76 lb)
