TENDA TEG1105P-4-63W 5-Port Gigabit Switch With 4-Port PoE

 เพิ่มเมื่อ: 2021-02-05 13:47:04.0
 แก้ไขล่าสุด: 2021-02-05 13:47:44.0
 เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
 อีเมลล์: krieng.nt@gmail.com

รายละเอียด:
TEG1105P-4-63W 5-Port Gigabit Switch With 4-Port PoE, compliant with IEEE 802.3af/at. (สินค้ารับประกัน 5 ปี)
1390.00 บาท

 TENDA TEG1105P-4-63W

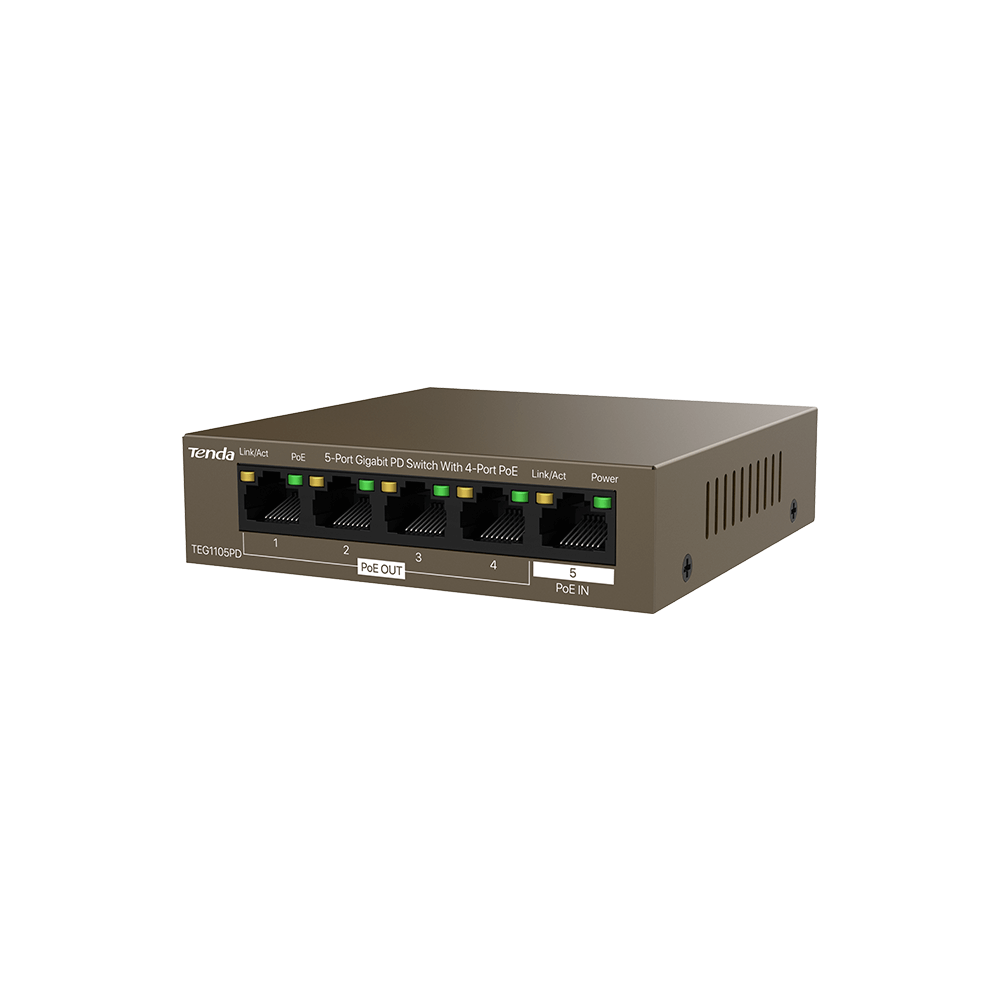

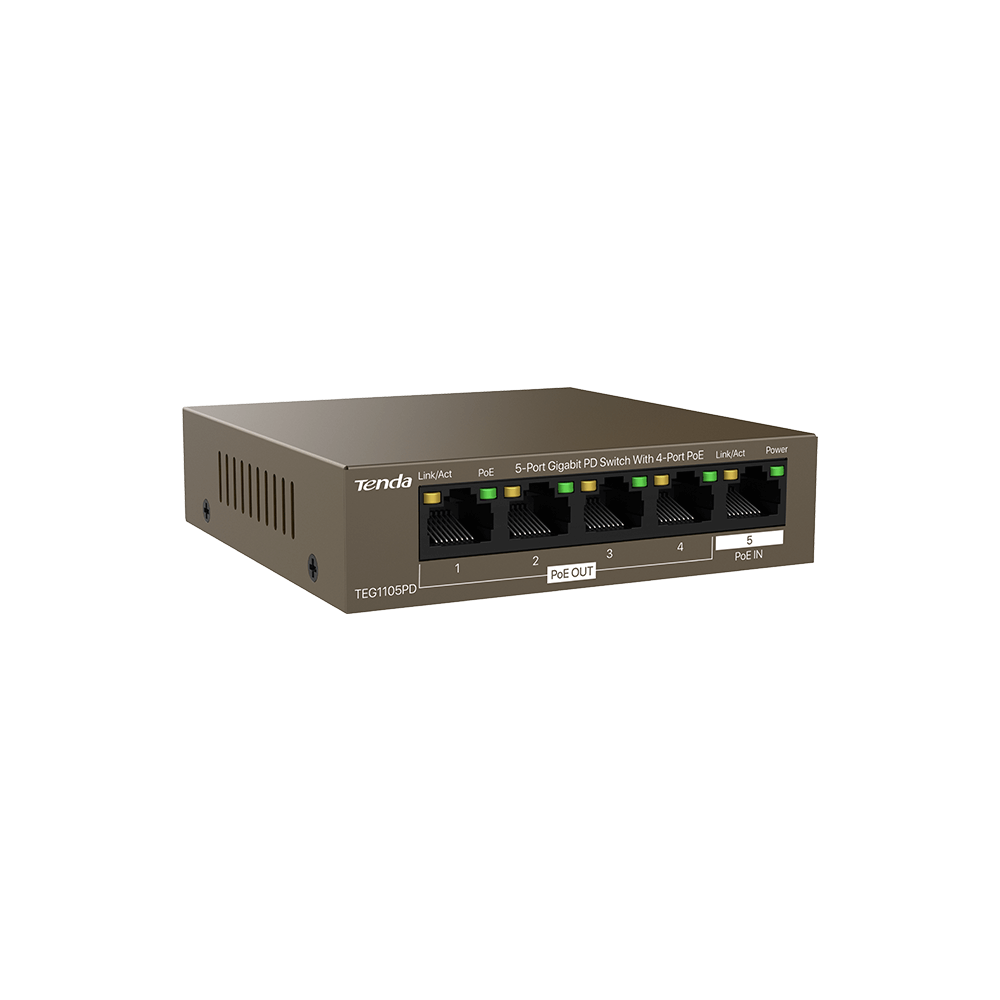

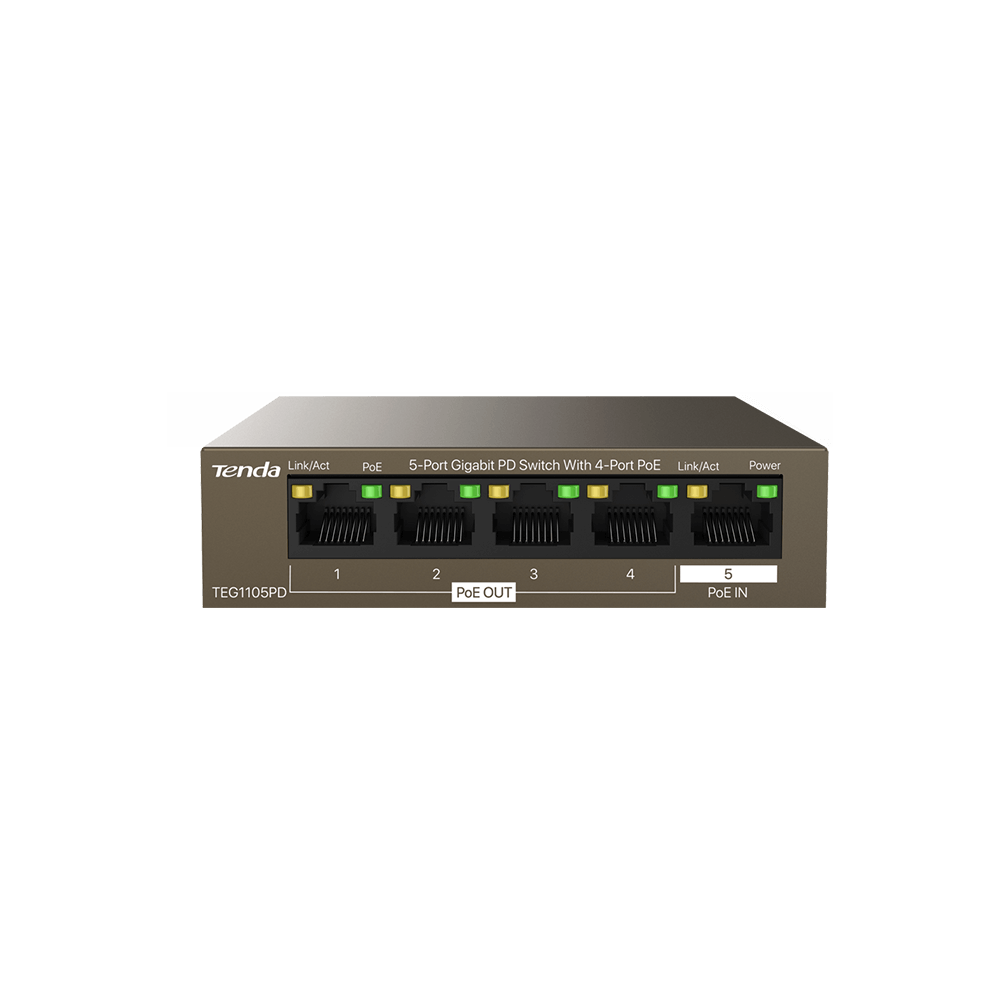

TEG1105P-4-63W 5-Port Gigabit Switch With 4-Port PoE, compliant with IEEE 802.3af/at.

Featuring low cost, high performance and plug & play, the PoE switch TEG1105PD is both a PSE and a PD, designed for such surveillance networking scenarios as roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four 10/100/1000 Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE 802.3af and one 10/100/1000 Mbps PoE IN port (port 5) compliant with IEEE 802.3af/at. The maximum PoE output power of the whole switch is 30 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of the network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.

Network standard :

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

LED :

- 1* Power LED indicator

- 4* PoE LED indicators

- 5* Link/Act LED indicators

Interface :

- 4*10/100/1000 Base-T Ethernet Ports(Data/PoE OUT)

- 1*10/100/1000 Base-T Ethernet Port(Data/PoE IN)

Dimension :

- 100 mm x 100 mm x 26 mm(L*W*H)

PoE budget :

- Lightning protection for ports: 6KV

- Lightning protection for power:N/A

   ESD:

    Air discharge: ±8kV

    Contact discharge: ±6kV

Switching Capacity :

- 10 Gbps

Packet Forwarding Rate :

- 7.44Mpps

Packet forwarding rate :

- 1 Mb

MAC Address Table :

- 2K

Jumbo Frame :

- 9K

PoE power supply ;

- Single port: AF: 15.4W

- Whole device: 30W

Input Voltage :

- 50-57V DC, 0.6A
